High-Definition 31-Band Stereo Graphic Equalizer with FBQ Feedback Detection System

Professional audio engineers have known for decades that a good EQ makes all the difference in how a performance is perceived. Although multi-band graphic equalizers have been around for a long time, they have changed very little… until now! The ULTRAGRAPH PRO FBQ6200HD takes the graphic equalizer into the realm of high-definiton audio, providing robust features and our proprietary FBQ Feedback Detection System – at a price that makes them a must-have for anyone who records or operates a live sound system.

Features

• Audiophile 31-band stereo graphic equalizer for live and studio applications
• Revolutionary FBQ Feedback Detection system instantly reveals critical frequencies and can also be used as audio analyzer
• Ultra-low noise 4580 operational amplifiers for highest signal integrity
• Dedicated Limiters with gain reduction meters for each channel protect your sound system from overload and distortion
• Pink noise generator provides test signals to adapt your sound system to any room acoustics
• Mono subwoofer output with dedicated level control and adjustable crossover frequency
• Additional sweepable high and low-cut filters for each channel remove unwanted frequencies e.g. floor rumble, hiss etc.
• Highly accurate 8-segment LED input/output metering and input gain controls for easy level setting
• Relay-controlled hard bypass with an auto-bypass function during power failure (fail-safe relay)

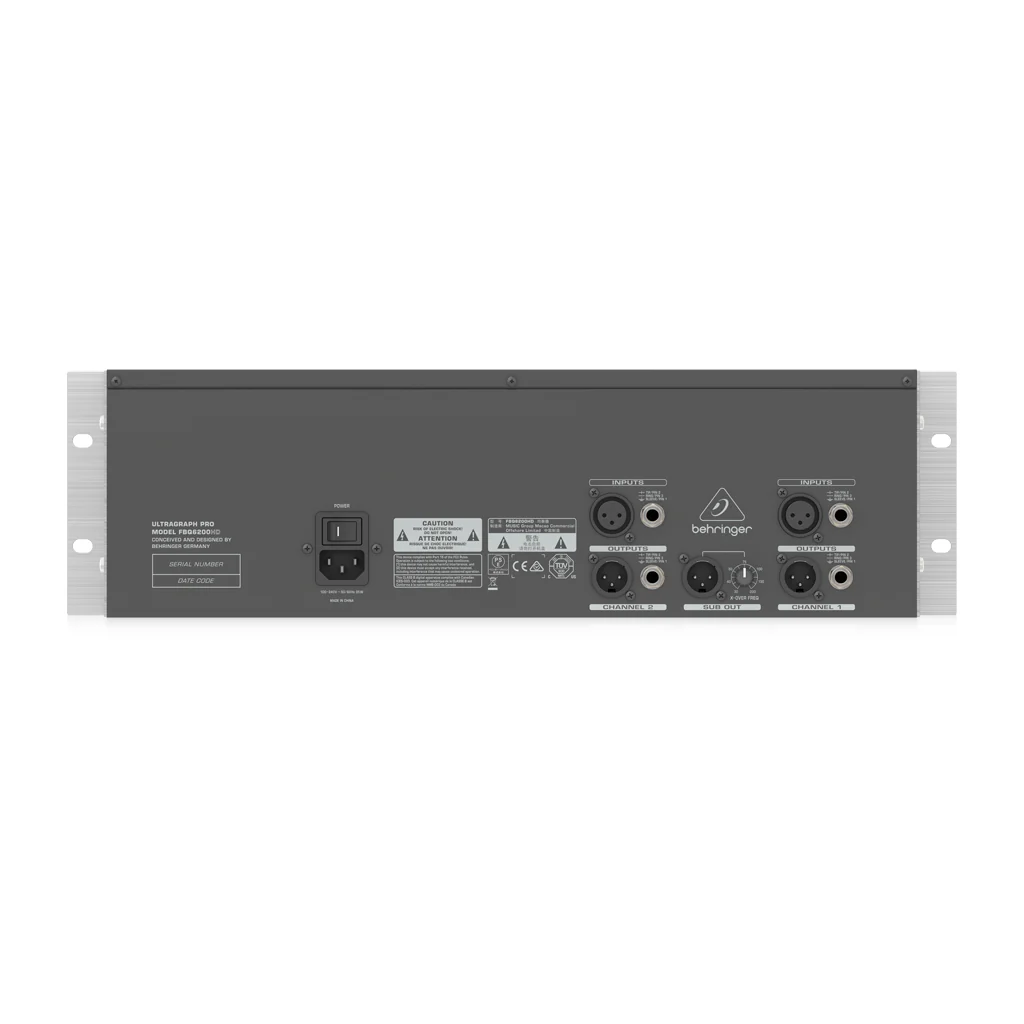

• Servo-balanced inputs and outputs with 1/4 TRS and gold-plated XLR connectors
• Planet Earth switching power supply for maximum flexibility (100 - 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
• Designed and engineered in Germany
