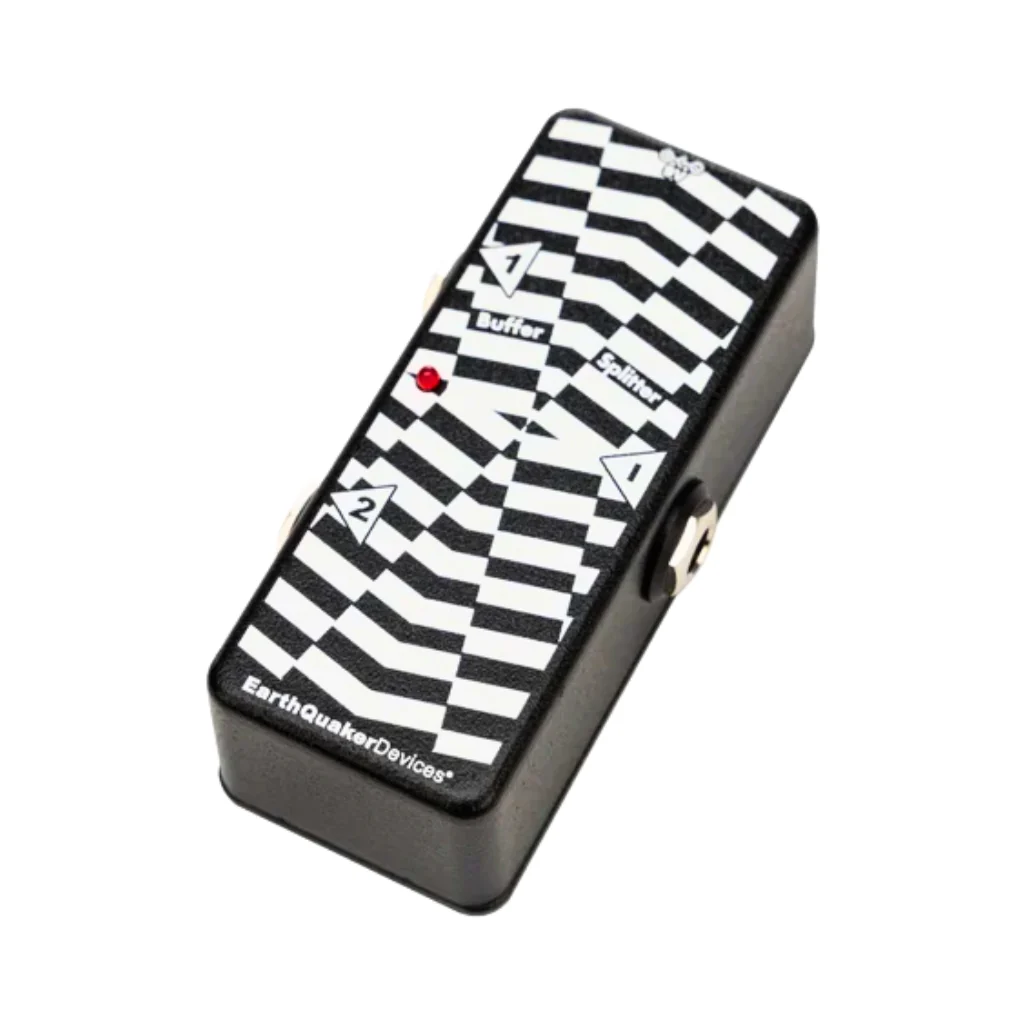

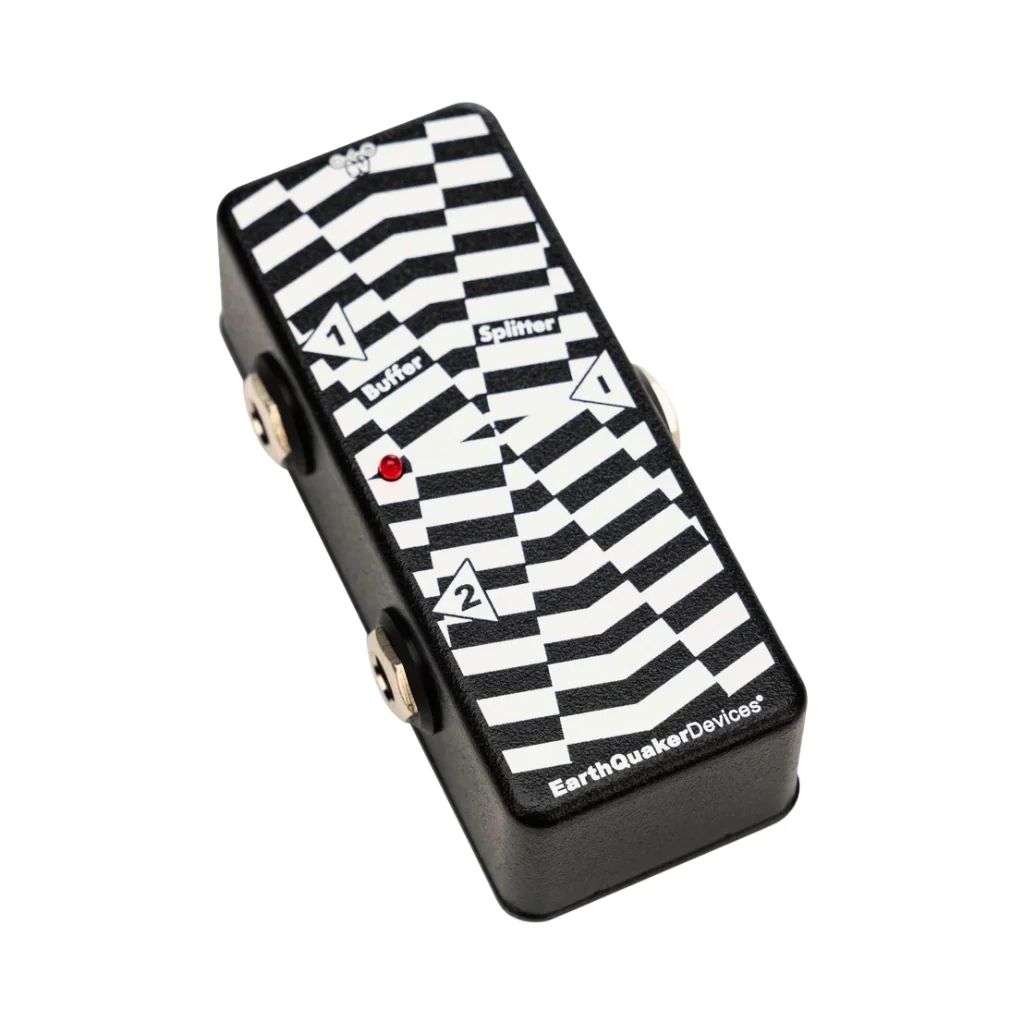

The EarthQuaker Devices Buffer/Splitter Pedal is a dual-output solution designed to maintain your guitar tone across long cable runs and busy pedalboards. Its high 1-Mohm input impedance and low 100-ohm output impedance ensure maximum clarity, subtle high- and low-end enhancement, and consistent signal strength. Ideal for placement anywhere in your signal chain, it excels up front to combat cable noise, after a fuzz or distortion pedal, or at the end of your chain to feed amps and other destinations without tone loss.

Equipped with dual outputs, the Buffer/Splitter allows you to send your signal to multiple destinations, whether it’s a pair of amplifiers, a stereo signal path, or other routing setups. Its compact, pedalboard-friendly footprint ensures it fits easily in tight spaces while delivering pristine tone and versatile signal management for professional and hobbyist guitarists alike.

Features

• Preserves amp and guitar tone across busy pedalboards and long cable runs
• High 1-Mohm input impedance and low 100-ohm output impedance for optimal clarity
• Dual outputs enable sending signal to multiple destinations
• Works in any position on your pedalboard
• Compact, pedalboard-friendly design

Specs

• Pedal Type: Splitter / Dual-output Buffer
• Analog/Digital: Analog

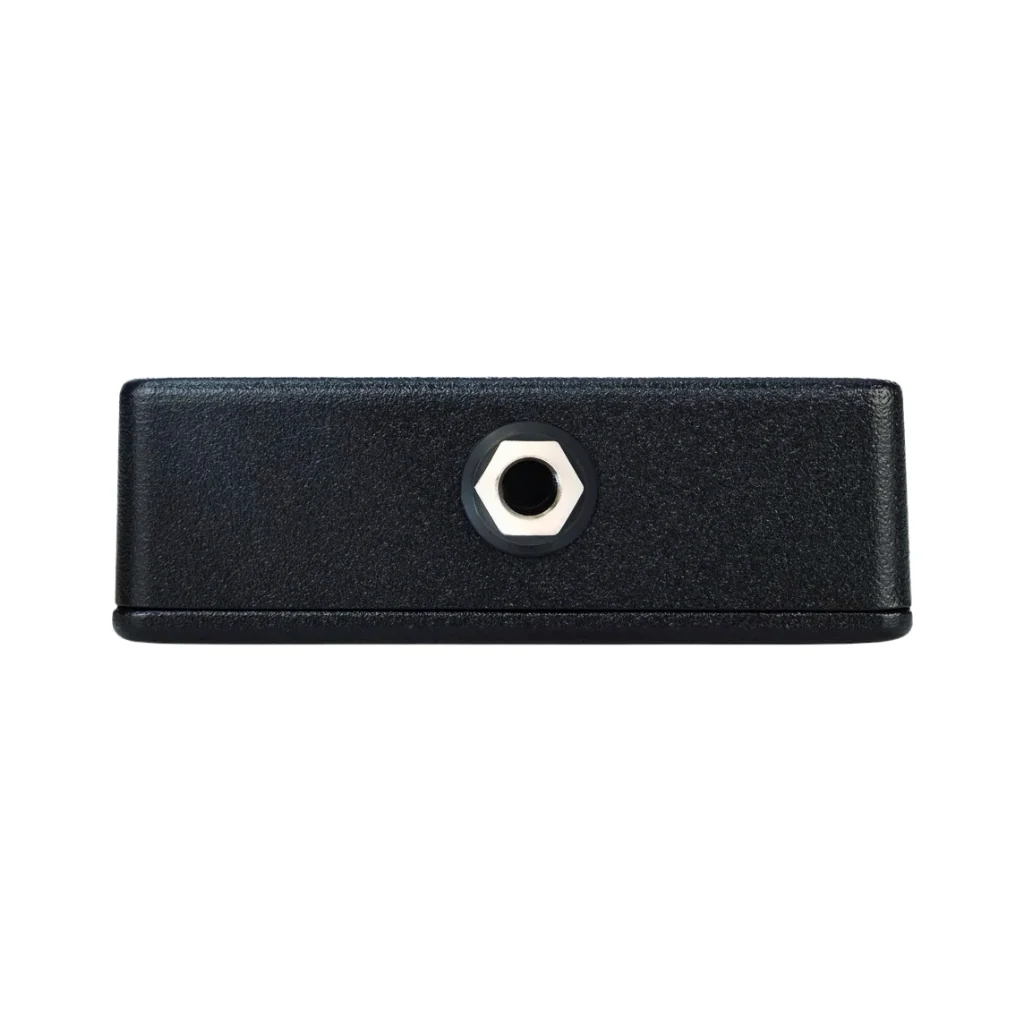

• Inputs: 1 x 1/4"

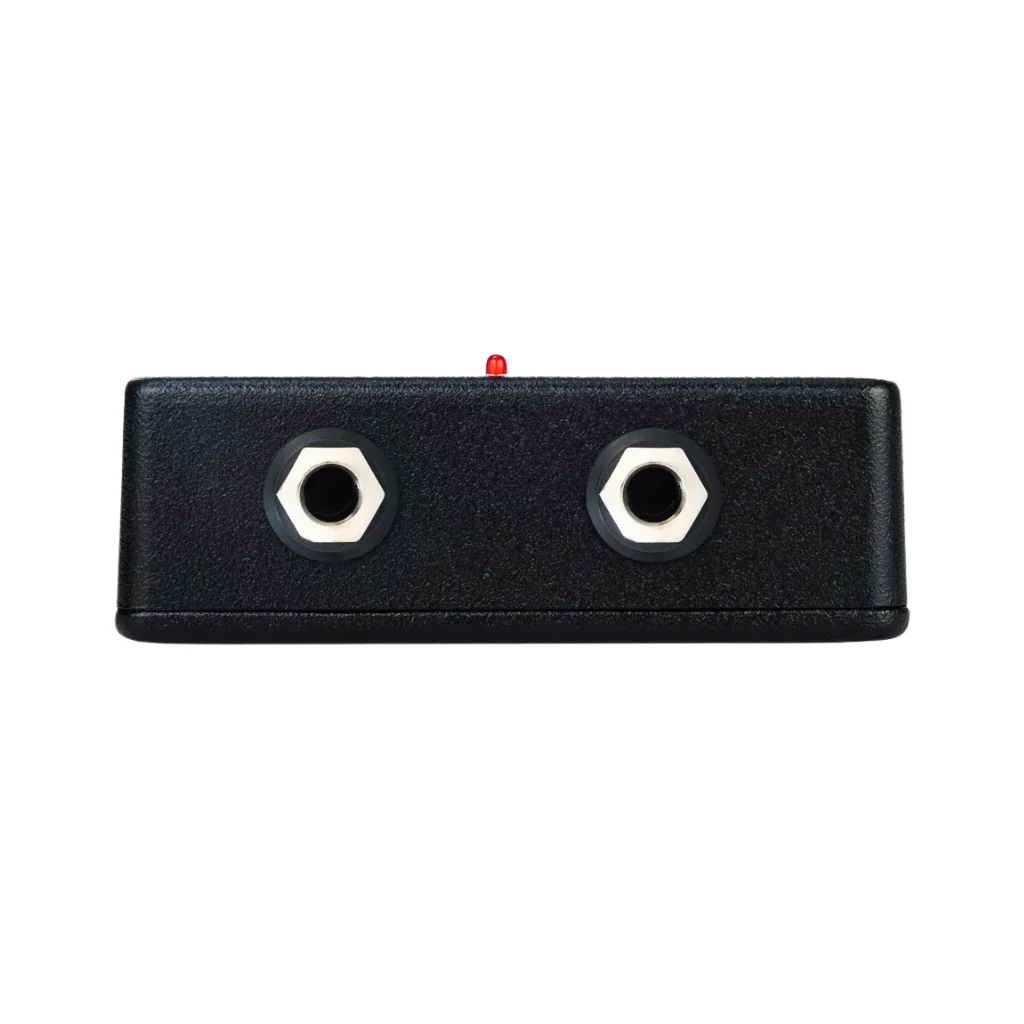

• Outputs: 2 x 1/4"
• Input Impedance: 1 MΩ
• Output Impedance: 100 Ω

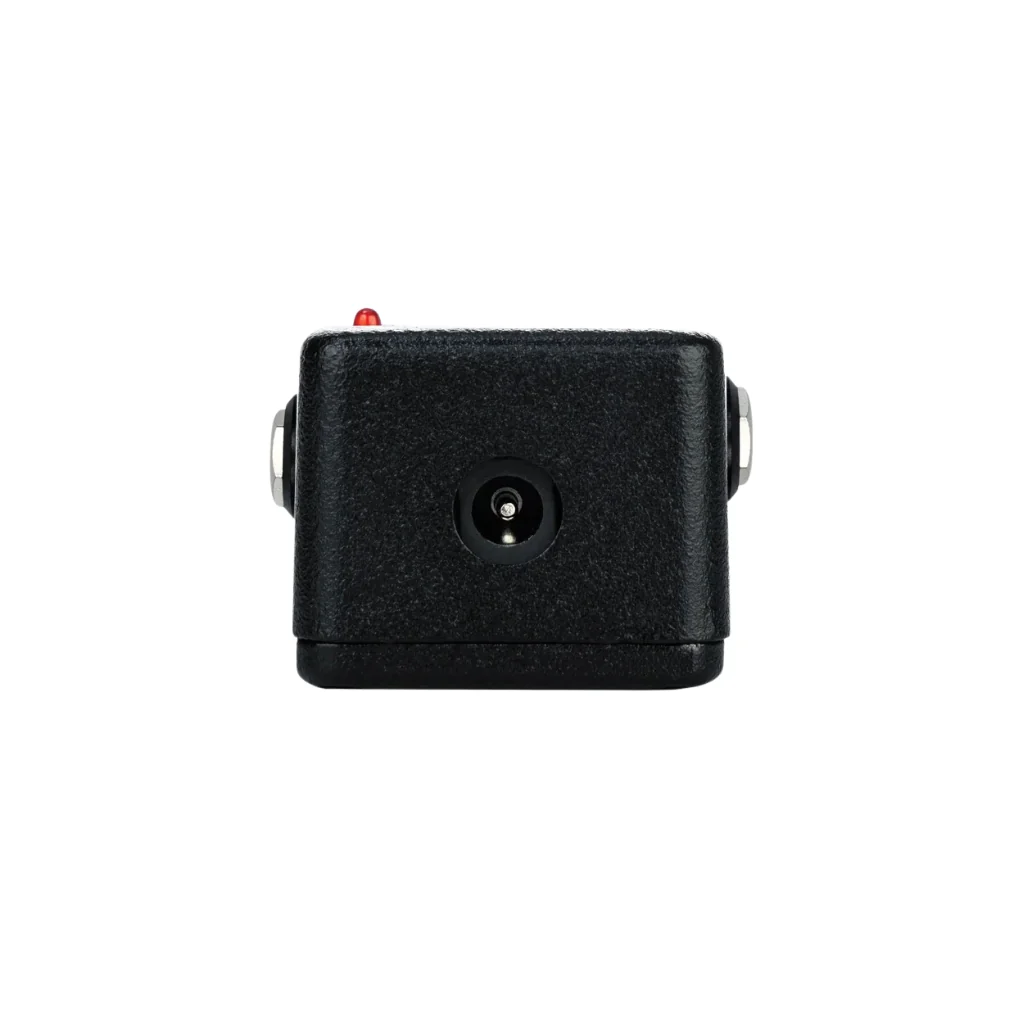

• Power Source: 9V DC power supply (sold separately)
• Height: 1.375"
• Width: 1.625"
• Depth: 3.68"
• Weight: 0.41 lbs.
