The EFNOTE EFD-PRO Sound Module is a premium two-part electronic drum module designed for professional live performance and studio control. Featuring a separate stage box with up to 12 balanced XLR outputs, it allows direct, clean signal routing straight to front-of-house systems for maximum audio clarity. Available from Sky Music Australia, this high-end module delivers exceptional flexibility, reliability, and performance for serious drummers and touring professionals.

Powered by 167 high-resolution multi-layer samples, the EFD-PRO produces incredibly realistic and dynamic drum sounds that faithfully replicate acoustic kits. Its intuitive four-color touchscreen display enables fast navigation, kit switching, and deep sound editing including EQ, compression, tuning, and dampening. With 15 preset drum kits, user set lists, and advanced features like metronome customization and setlist management, this module is built for both live gigs and detailed practice sessions.

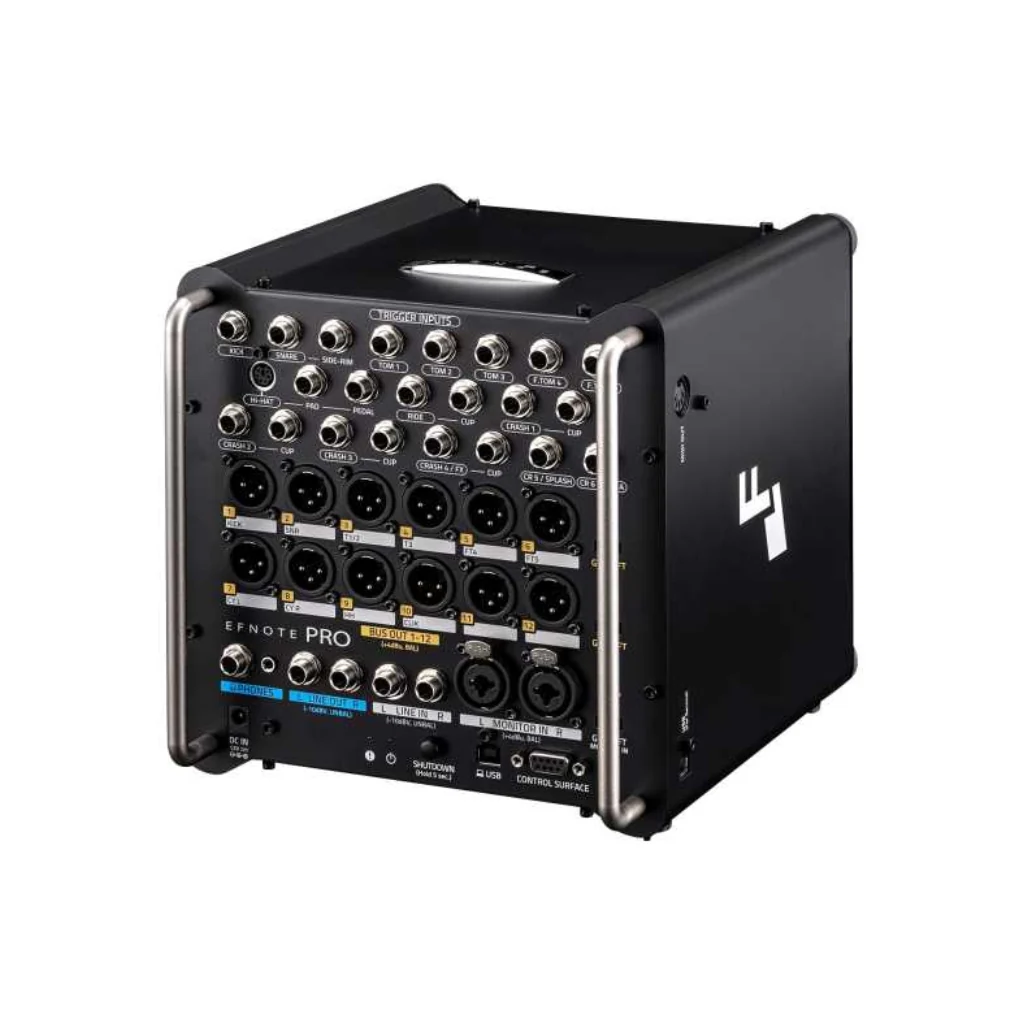

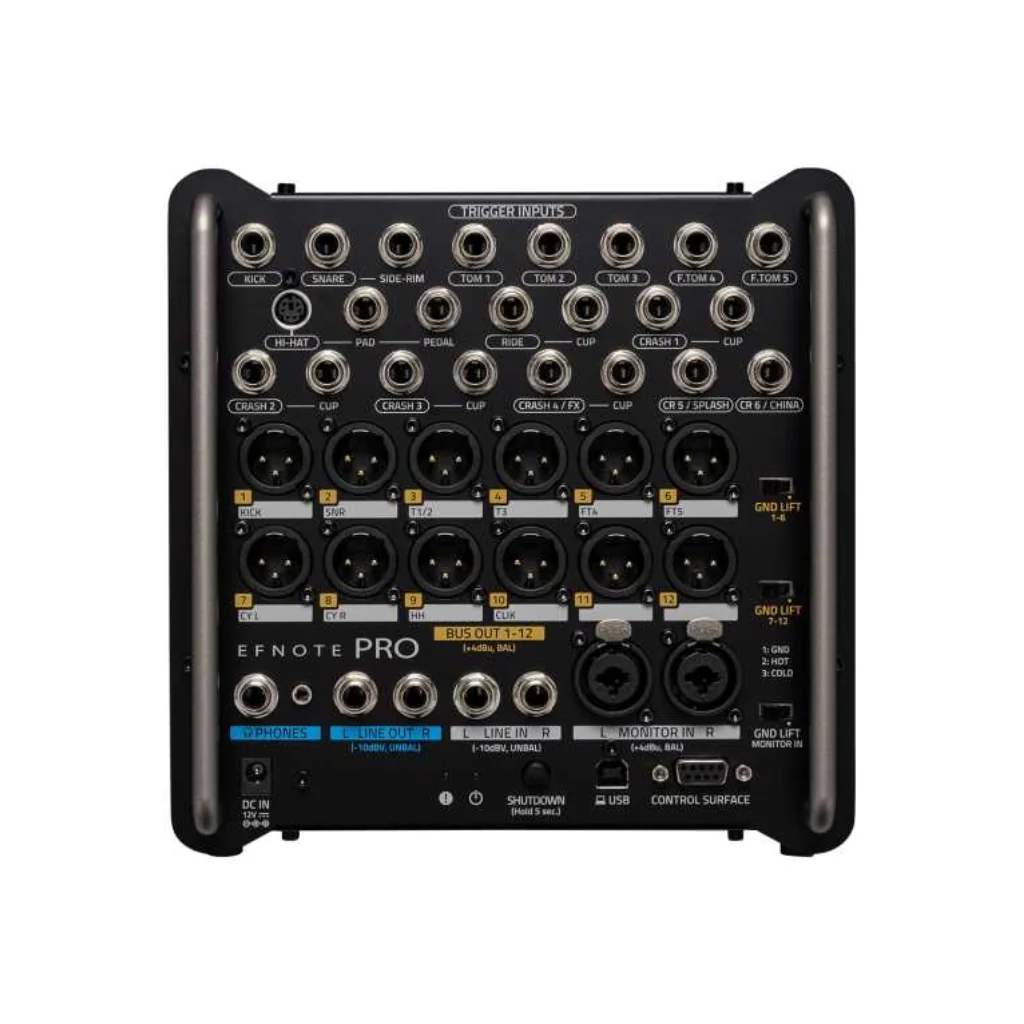

The robust stage box design ensures reliable connectivity with multiple trigger inputs, balanced outputs, and versatile audio and MIDI connections including USB and Bluetooth. Designed exclusively for EFNOTE hi-hats, the EFD-PRO guarantees seamless compatibility and optimal performance within the EFNOTE ecosystem. Sky Music Australia offers this flagship module for drummers seeking uncompromising sound quality, control, and professional-grade expandability.

Features

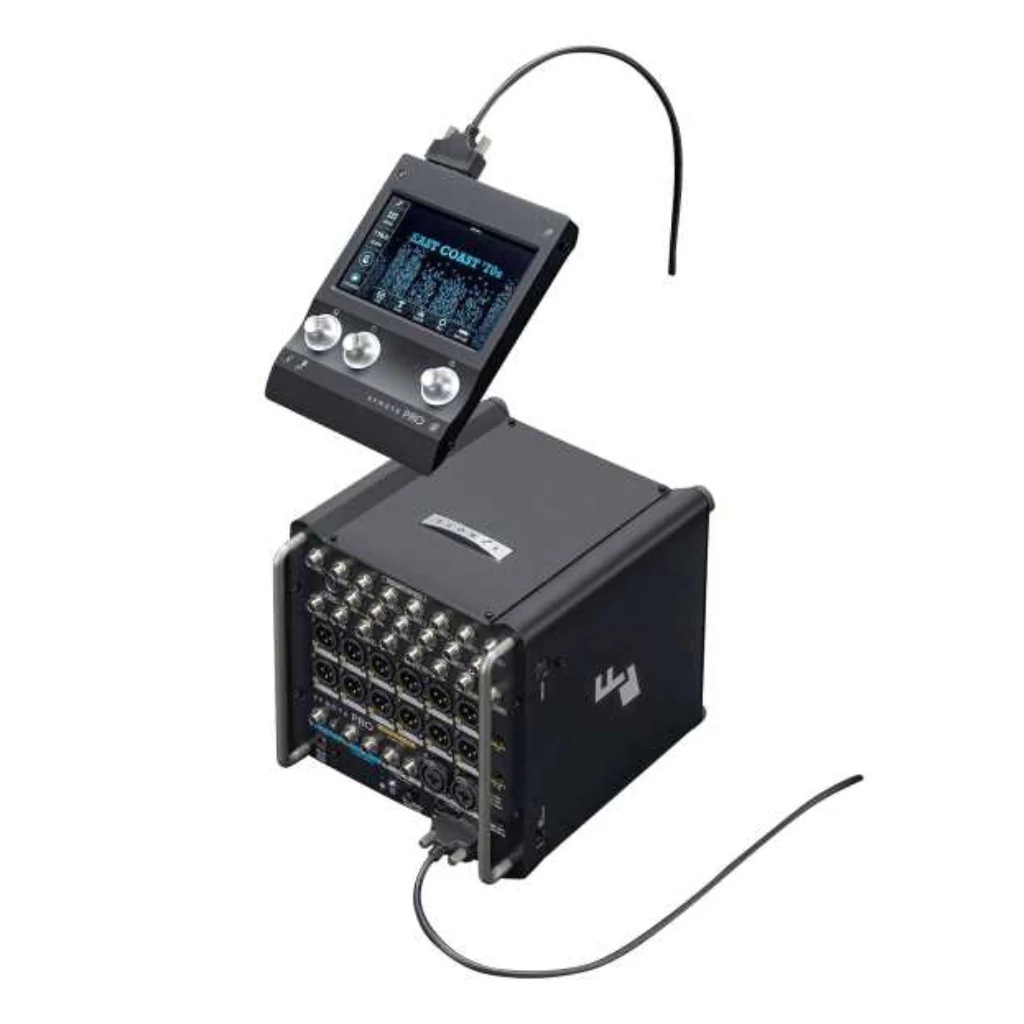

• Two-part sound module with separate stage box for live performance
• Up to 12 balanced XLR outputs for direct FOH connection
• 167 high-resolution multi-layer samples for realistic drum sounds

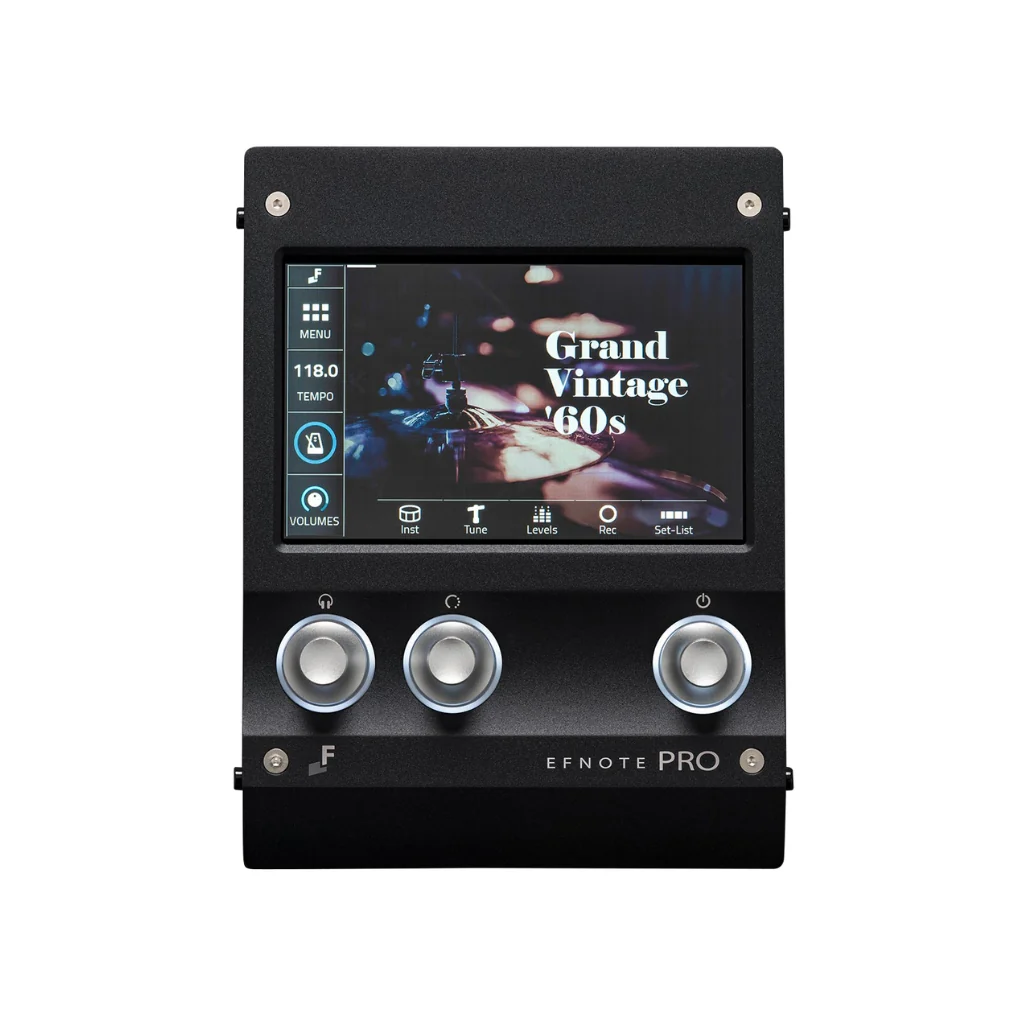

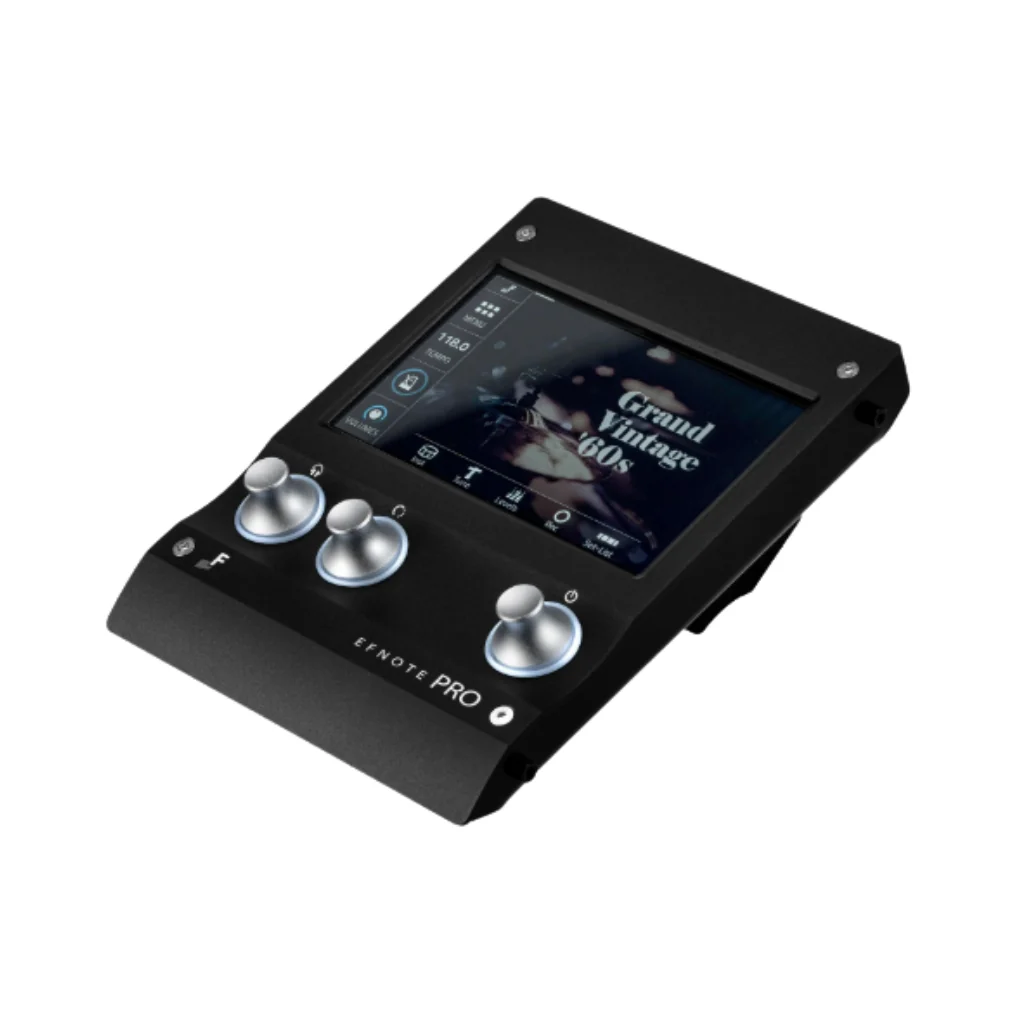

• Four-color touchscreen display with intuitive interface
• 15 preset drum kits and user set list functionality
• Advanced sound shaping: EQ, compression, tuning, and dampening
• ELISE Trigger Processor 2.0 for accurate triggering
• Set list management with customizable labels and colors
• Built-in metronome with multiple click variations
• USB recording and playback support
• Robust stage box with reliable connections for touring use
• Bluetooth MIDI and USB MIDI connectivity
• Compatible exclusively with EFNOTE hi-hats



Specs

• Product Type: Electronic Drum Sound Module with Stage Box
• Model: EFD-PRO
• Preset Drum Kits: 15
• User Set Lists: 20
• Samples: 167 high-resolution multi-layer samples
• Display: Four-color touchscreen
• Trigger Inputs: Up to 15 pads
• Tom Inputs: 5 x 2-zone
• Cymbal Inputs: 6 x 3-zone, 2 x 2-zone
• Direct Outputs: 12 x balanced XLR
• Main Outputs: 2 x 1/4" line out
• Headphone Outputs: 1 x 1/4", 1 x 3.5mm
• Monitor Inputs: 2 x XLR combo
• Line Inputs: 2 x 1/4"
• MIDI: USB MIDI, Bluetooth MIDI, 5-pin DIN Out
• Recording: USB flash recording & playback
• EQ & Processing: Bus mixer, multi-band EQ, compressor, master EQ
• Connectivity: Bluetooth audio & MIDI, USB I/O
• Hi-Hat Compatibility: EFNOTE hi-hats only
• Construction: Separate control unit and stage box
• Included: EFD-PRO module with stage box and mounting plate
