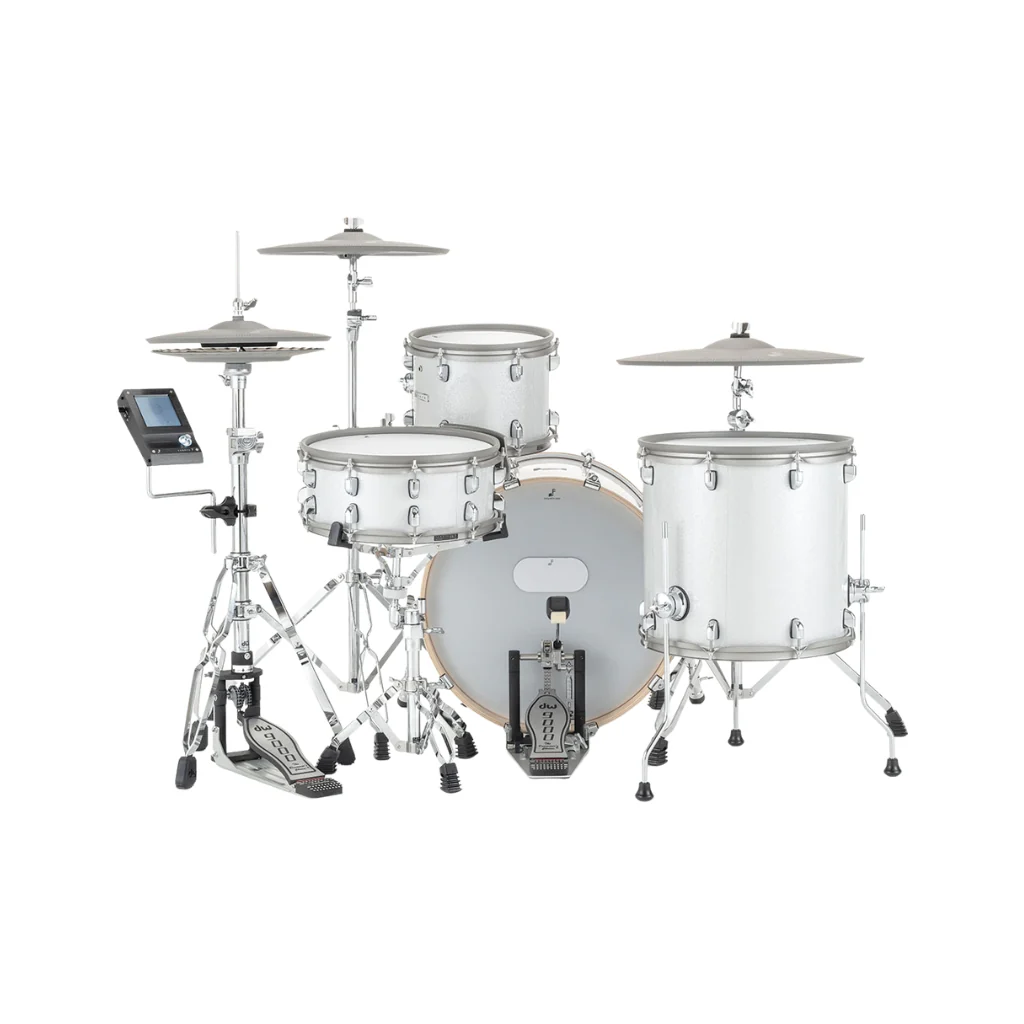

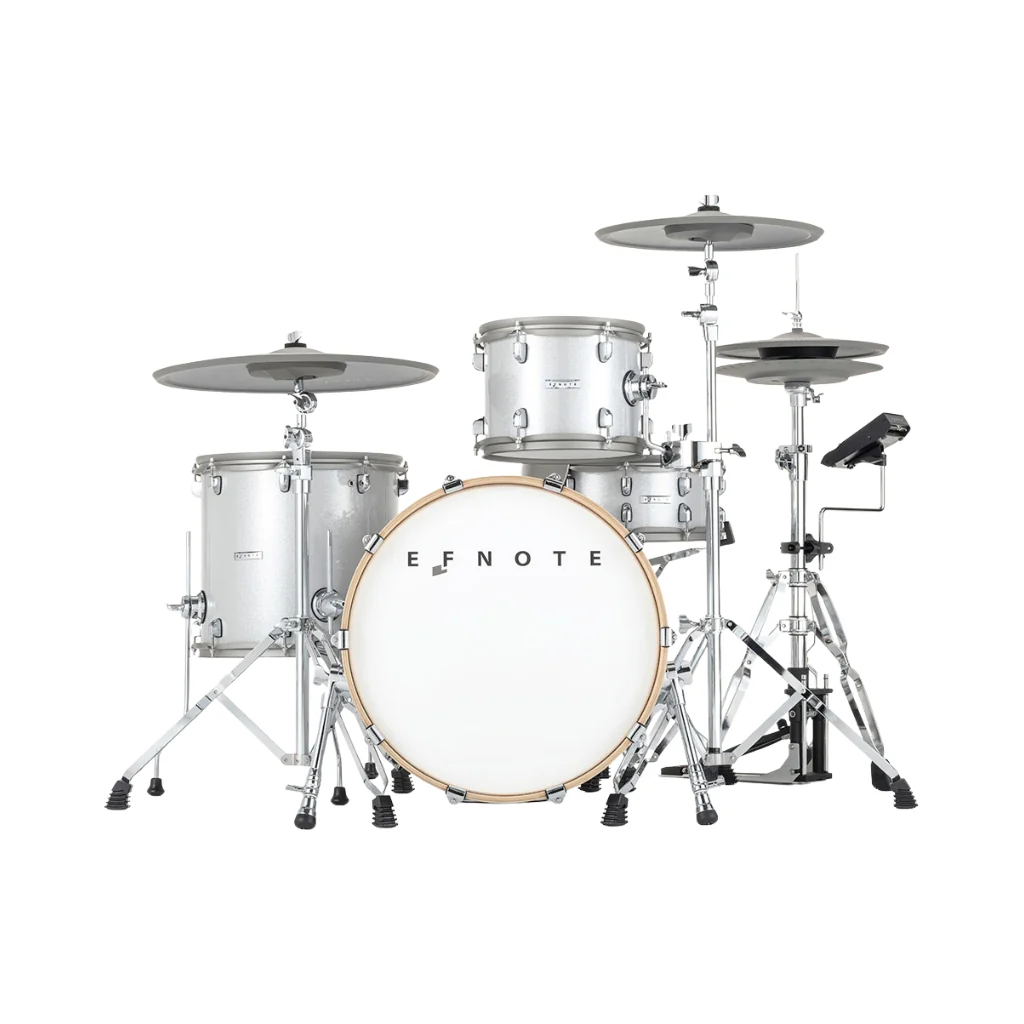

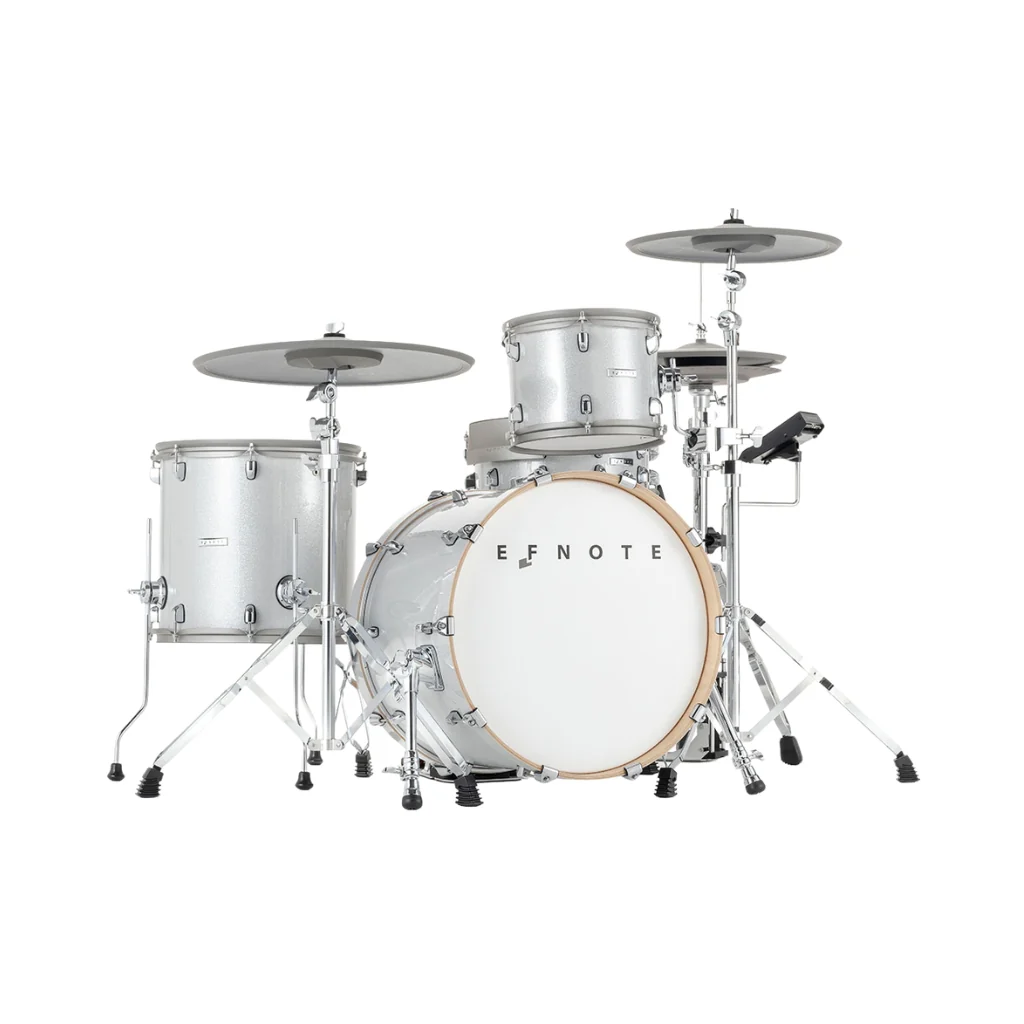

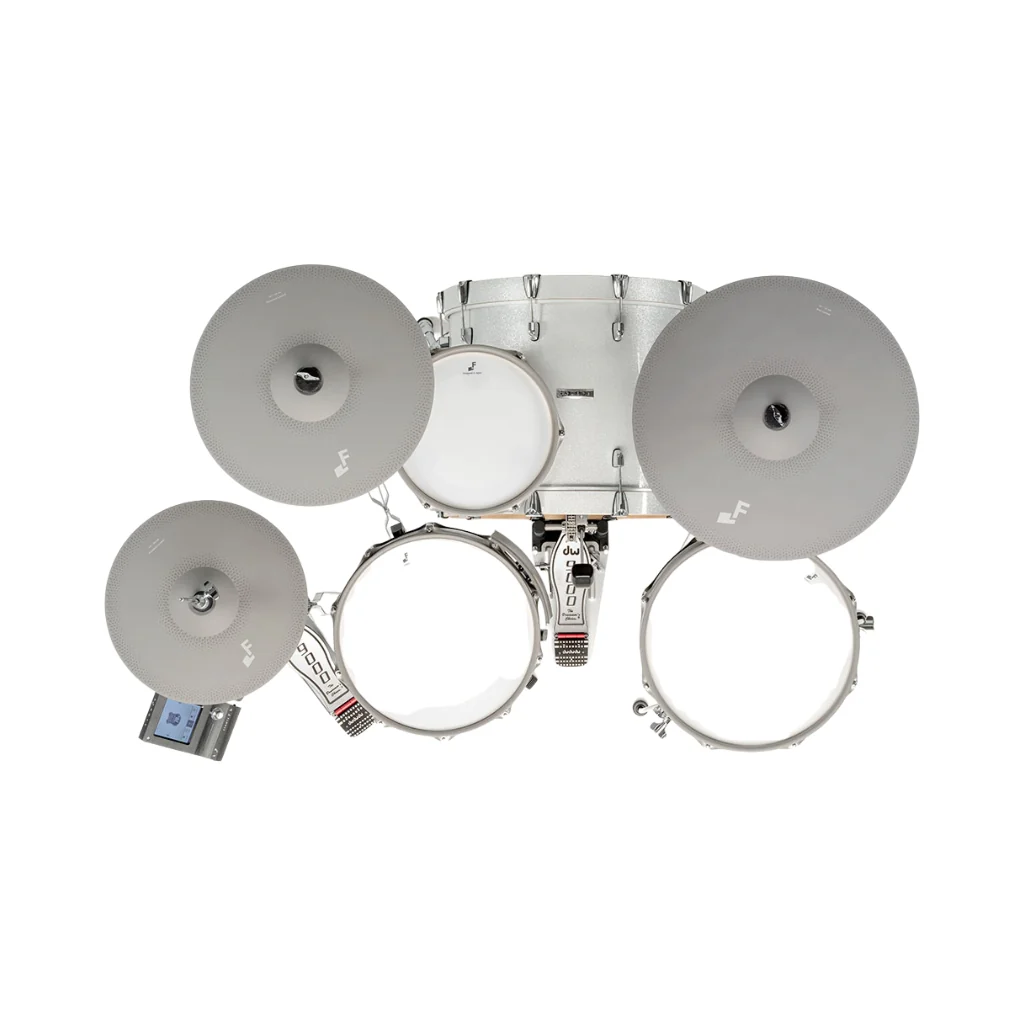

In 2018, a team of engineers with over 20 years of experience in electronic drums sought to break free from conventional constraints and create a drum kit that delivers the truest playing experience possible. The EFNOTE EST7 combines full-scale shells, realistic cymbals, and brilliantly remastered Tru-Aco™ sounds to give drummers an exhilarating, immersive performance. With the A+C+D package, all essential hardware is included for setup—bass drum pedal, drum throne, sticks, hi-hat stand, snare stand, and two cymbal stands (DW pedals shown are for example only and not included).

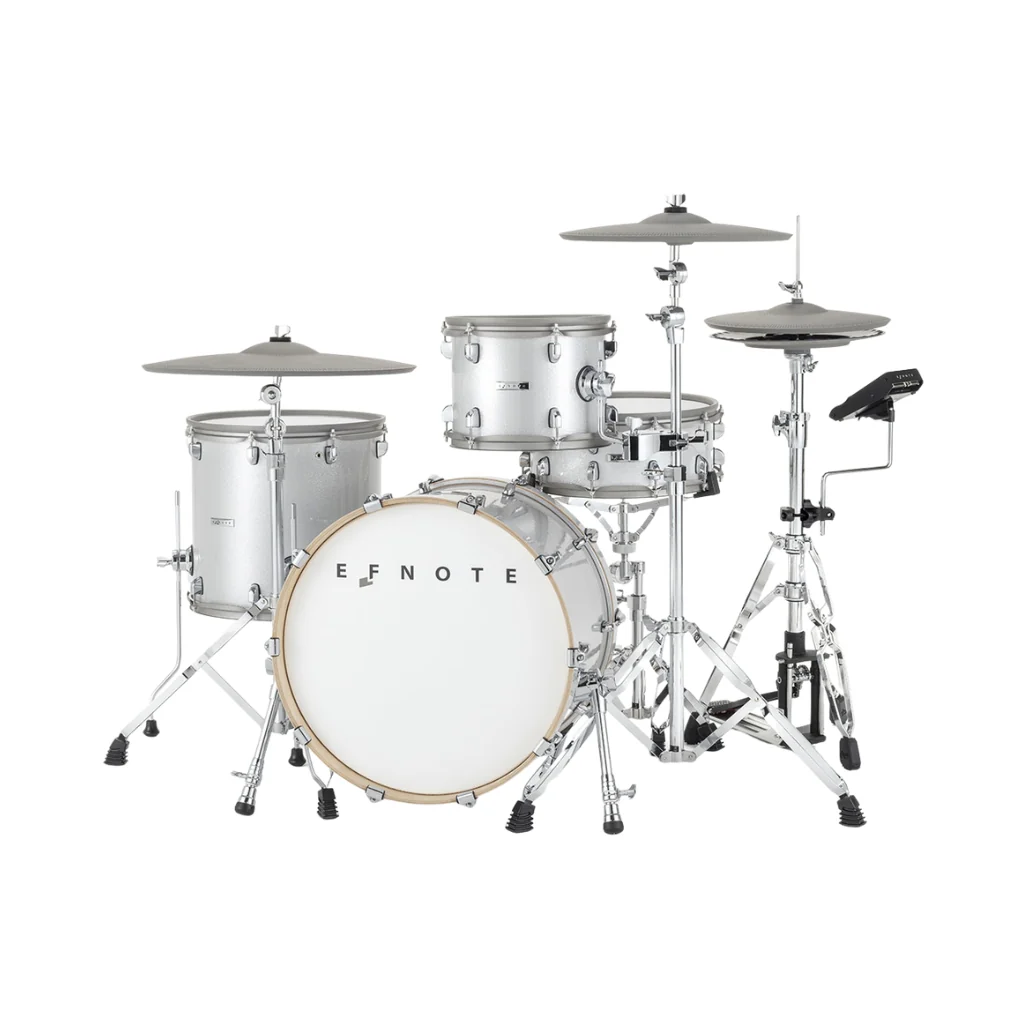

The EST7 features a 20 x 15" kick drum, 14 x 5.5" snare, 11 x 8" rack tom, and 15 x 15" floor tom, all with 6-ply birch shells and dual-layer mesh heads. Cymbals include 14” hi-hat, 20” ride, and 16” crash, Tru-Motion technology, and weight simulation for realistic rebound. Advanced ELISE sensing captures every nuance, from soft ghost notes to hard hits, and stroke analysis helps refine technique. Tru-Aco stereo sampling ensures natural acoustic sound with minimal processing.

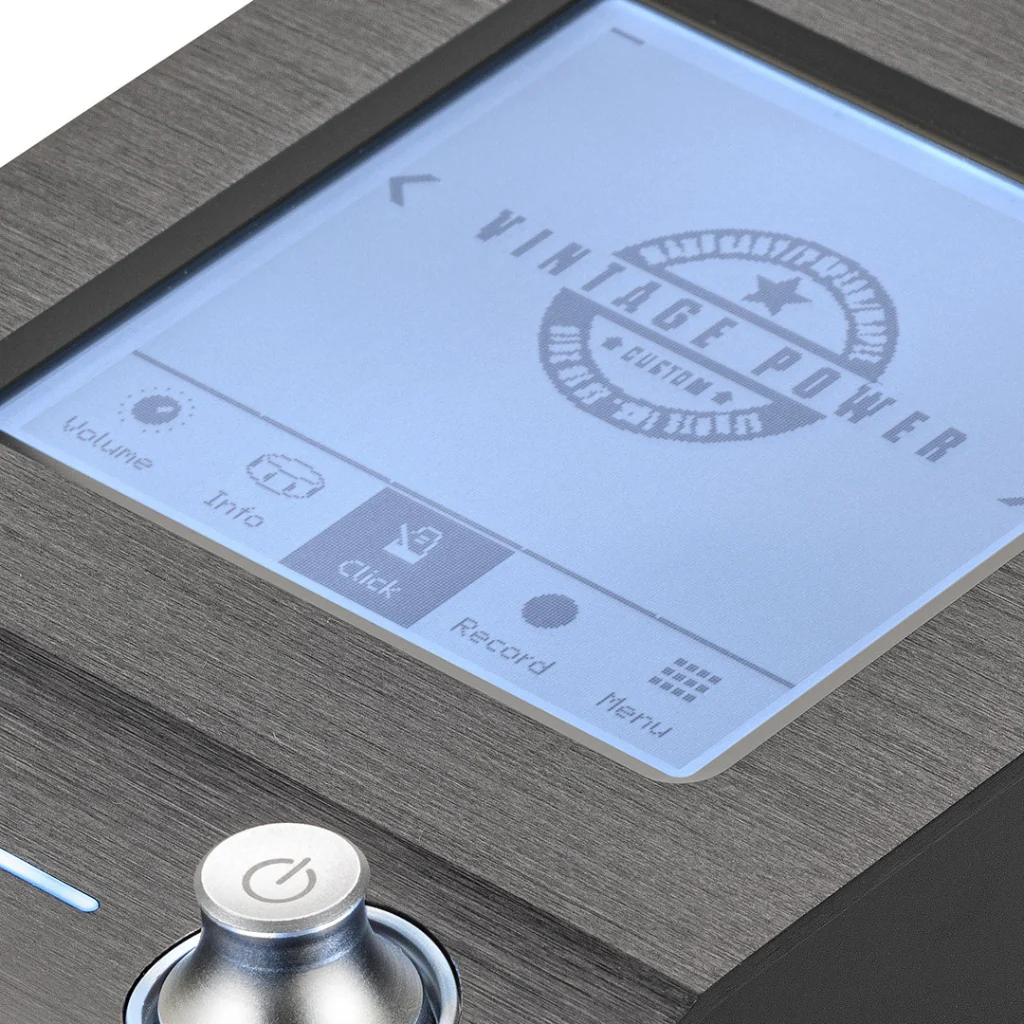

The low-profile touchscreen module allows intuitive control over kit selection, sound editing, and setup adjustments. Flexible I/O includes USB 8-channel audio (ASIO), USB 2-channel input, 4 analog outputs, MIDI in/out, 5-pin DIN, and Bluetooth audio/MIDI. Additional features include multi-function metronome, rhythm box with 90+ beats, on-board 15-song recording, stroke analyzer, pad tuning/muffling/EQ, sound layering, reverb, and setlist management for live performance. The EST7 is fully expandable with optional components, giving drummers complete freedom to create their customized setup.

Features

• Tru-Aco stereo acoustic drum and cymbal sounds with minimal processing
• ELISE sensing processor for low latency and precise stroke capture
• 6-ply birch shells, dual-layer mesh heads, realistic rebound and feel
• 3-zone snare, 3-zone crash/ride, 2-zone hi-hat, 8” splash cymbal, 360° multi-sensor response
• Tru-Motion technology for hi-hat, multi-sensor optical cymbal detection

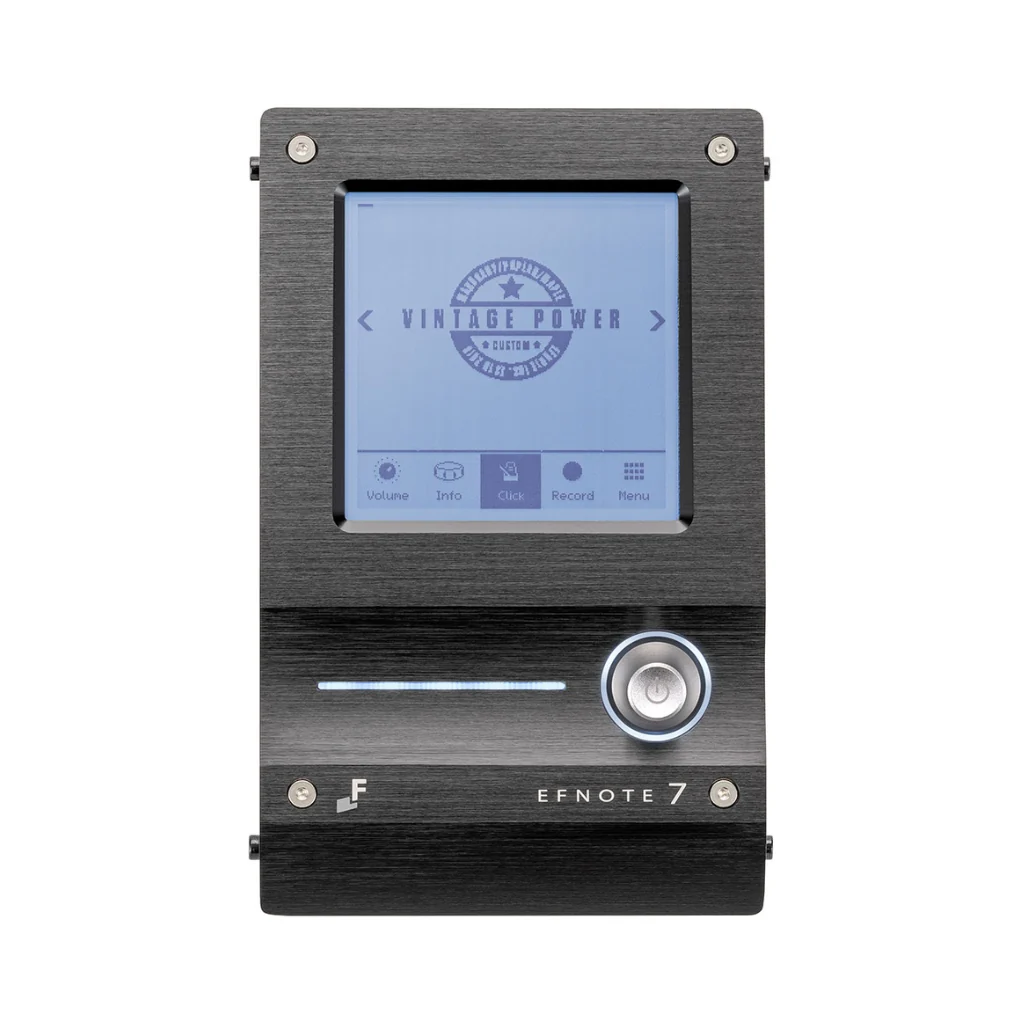

• Low-profile touchscreen module for kit selection, editing, and setup
• 16 preset kits, 34 user kits, 128 custom instruments, pad layering, EQ, reverb
• Flexible I/O: USB 8-ch audio, 2-ch USB input, 4 analog outputs, MIDI in/out, 5-pin DIN, Bluetooth audio/MIDI
• Stroke analyzer, setlist function, multi-function metronome, rhythm box, on-board recording
• A+C+D package included: bass drum pedal, drum throne, sticks, hi-hat stand, snare stand, 2 cymbal stands

Specs

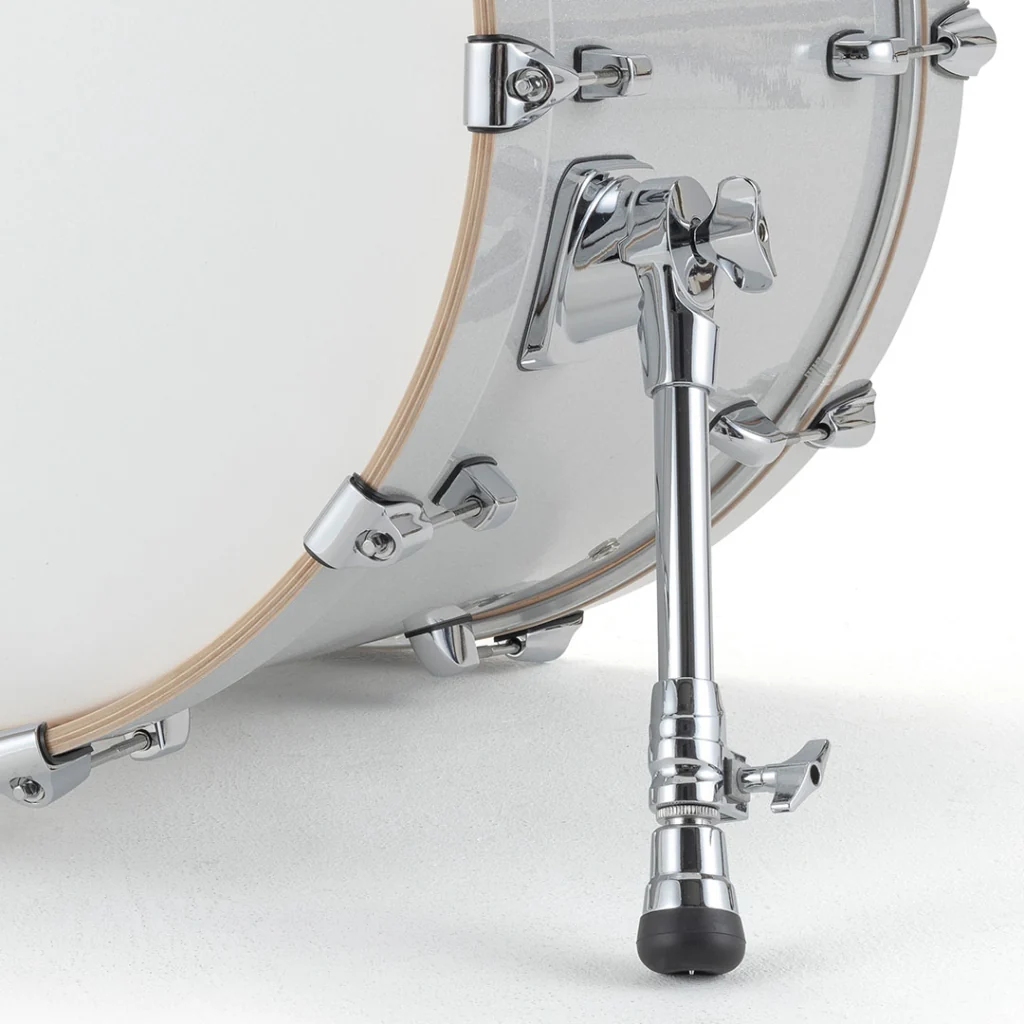

• Kick Drum: 20 x 15", dual-sensor mesh head, birch shell, Mylar front head

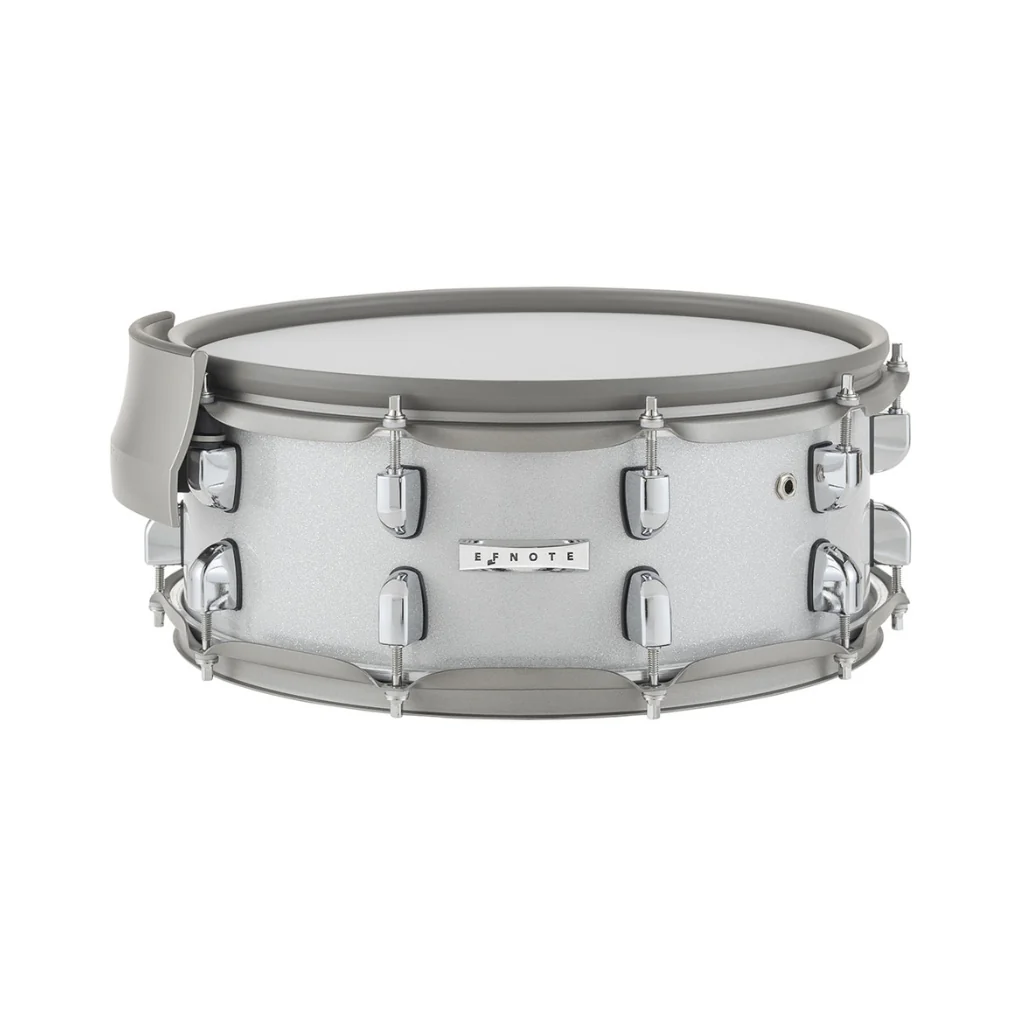

• Snare: 14 x 5.5", dual-zone head/rim/side-rim, multi-sensor mesh head, 10 lugs, side-rim playable

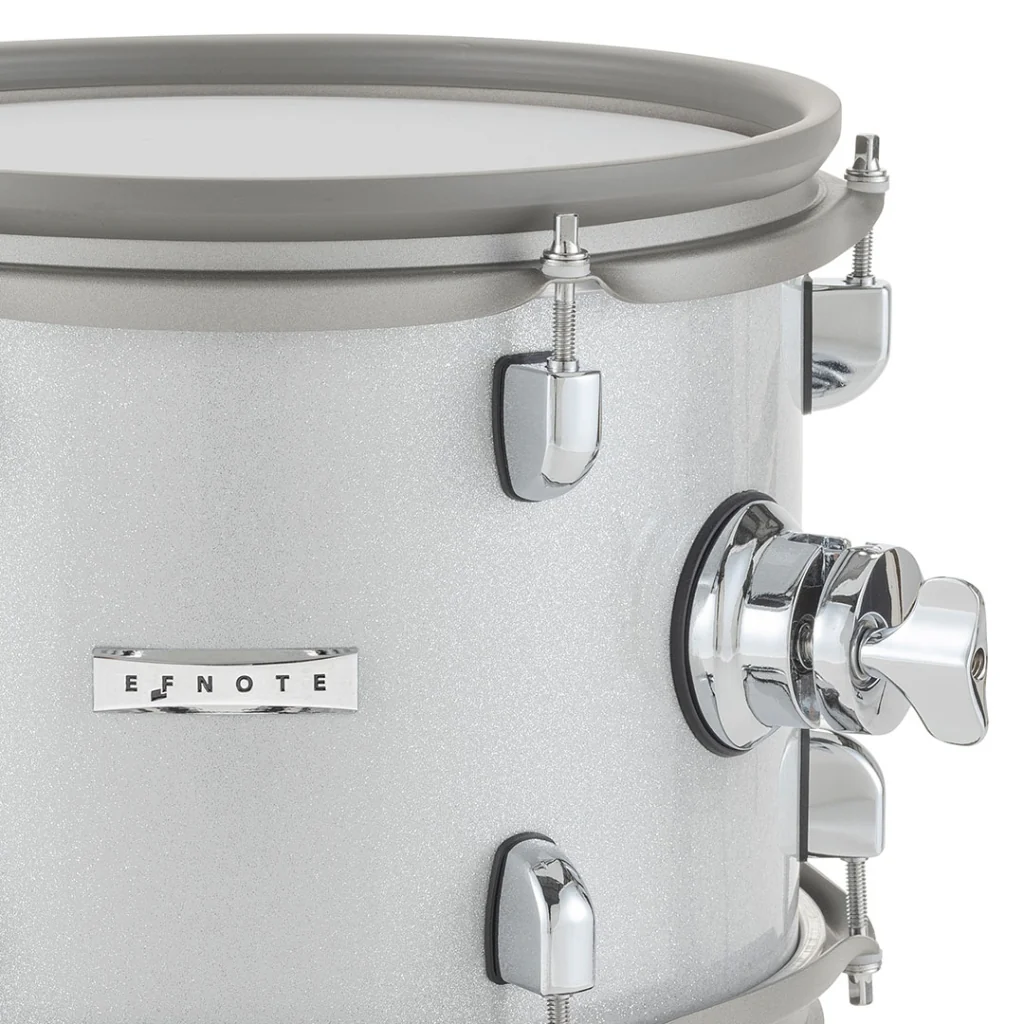

• Rack Tom: 11 x 8", dual-zone head/rim, mesh head, suspended mount
• Floor Tom: 15 x 15", dual-zone head/rim, mesh head, low-rebound, suspended mount
• Crash: 16”, 3-zone bow/edge/cup, 360° multi-sensor, weight simulation, choke support

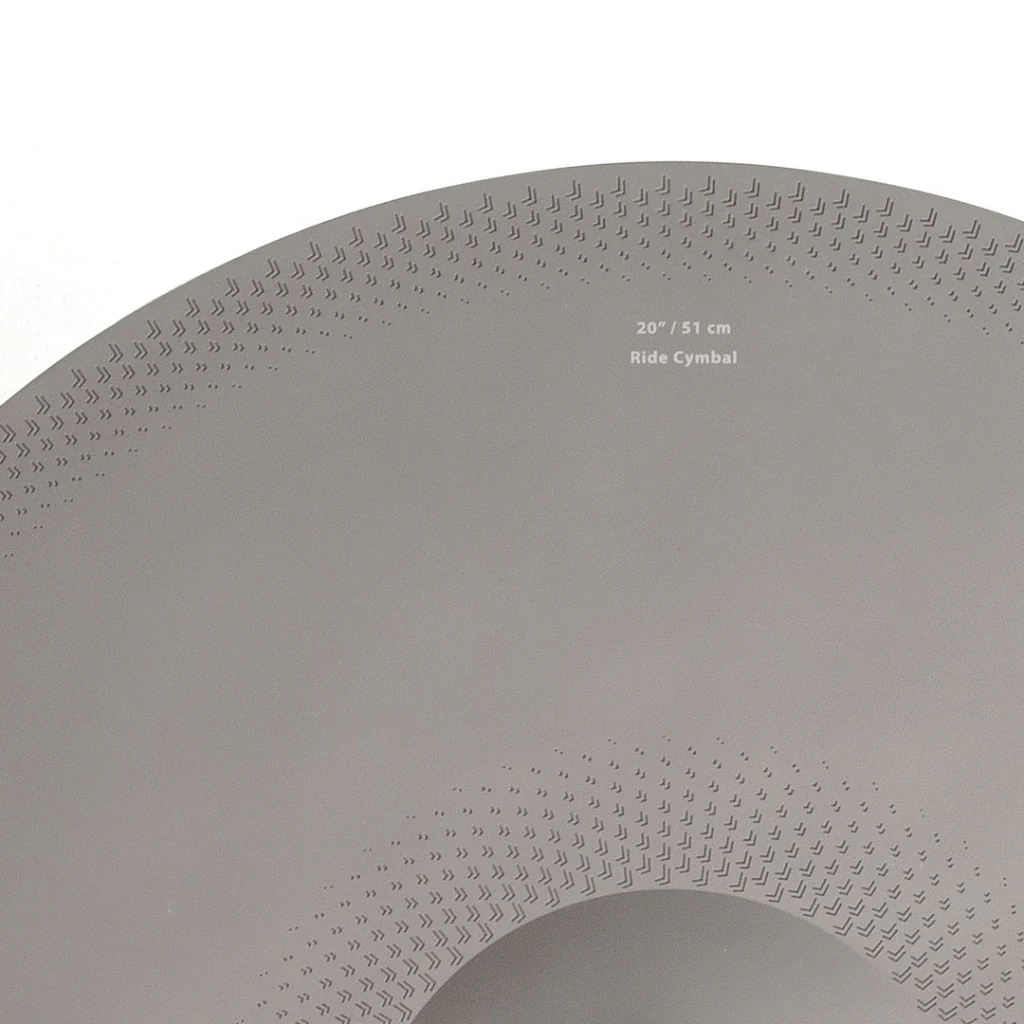

• Ride: 20”, 3-zone bow/edge/cup, 360° multi-sensor, weight simulation, choke support
• Hi-Hat: 14”, top/bottom, 2-zone, suspended, Tru-Motion optical sensors, heel-to-toe response
• Shells: 6-ply birch
• Sound Module: Touchscreen EST7, Tru-Aco sounds, ELISE sensing, 16 preset/34 user kits, 128 instruments

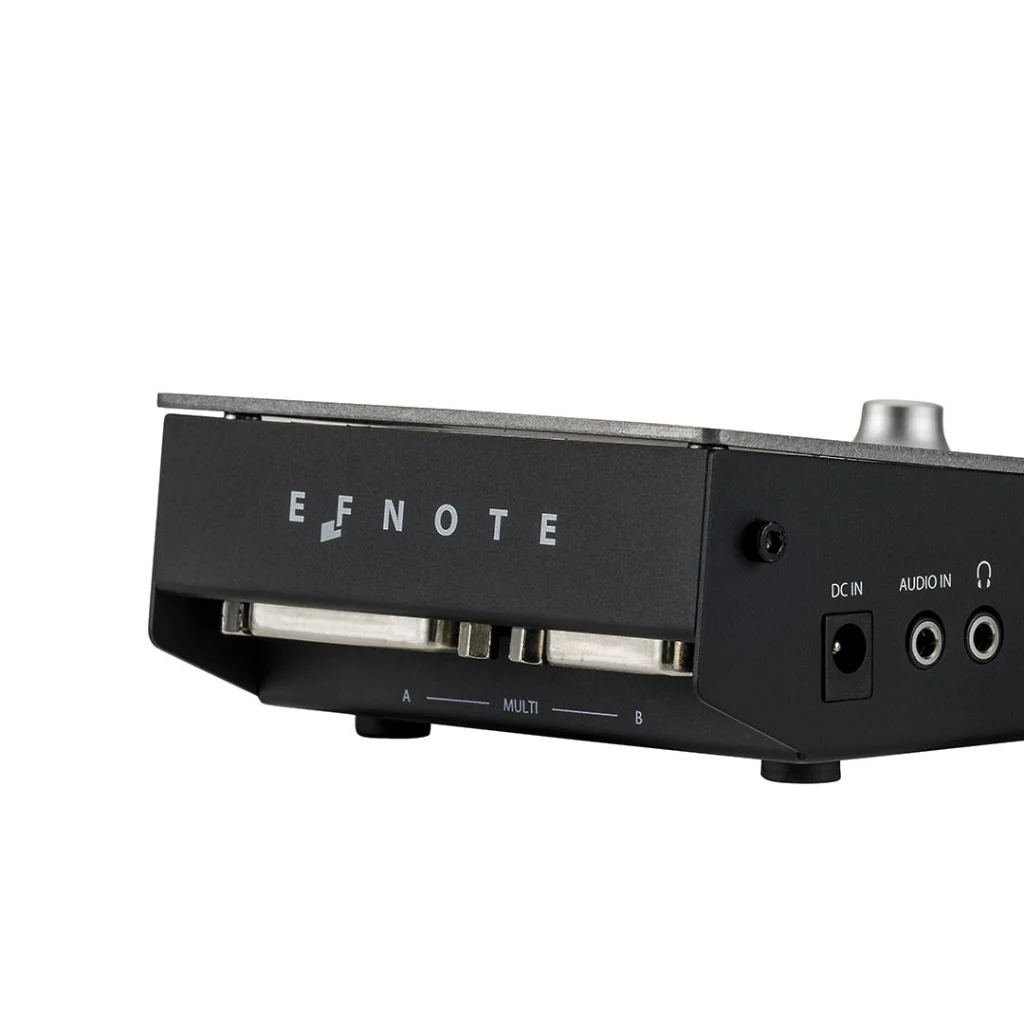

• Audio/MIDI: USB 8-ch audio (ASIO), USB 2-ch input, 4 analog outputs, MIDI in/out, 5-pin DIN, Bluetooth audio/MIDI
• Integrated Features: Metronome, rhythm box (90+ beats), stroke analyzer, on-board recording (15 songs), setlist management
• Dimensions: Approx. 180 W x 100 D cm (5.9 W x 3.3 D feet) without throne
• Colour: White Sparkle
• Included Hardware (A+C+D): Bass drum pedal, snare stand, hi-hat stand, 2 cymbal stands, drum throne, sticks
