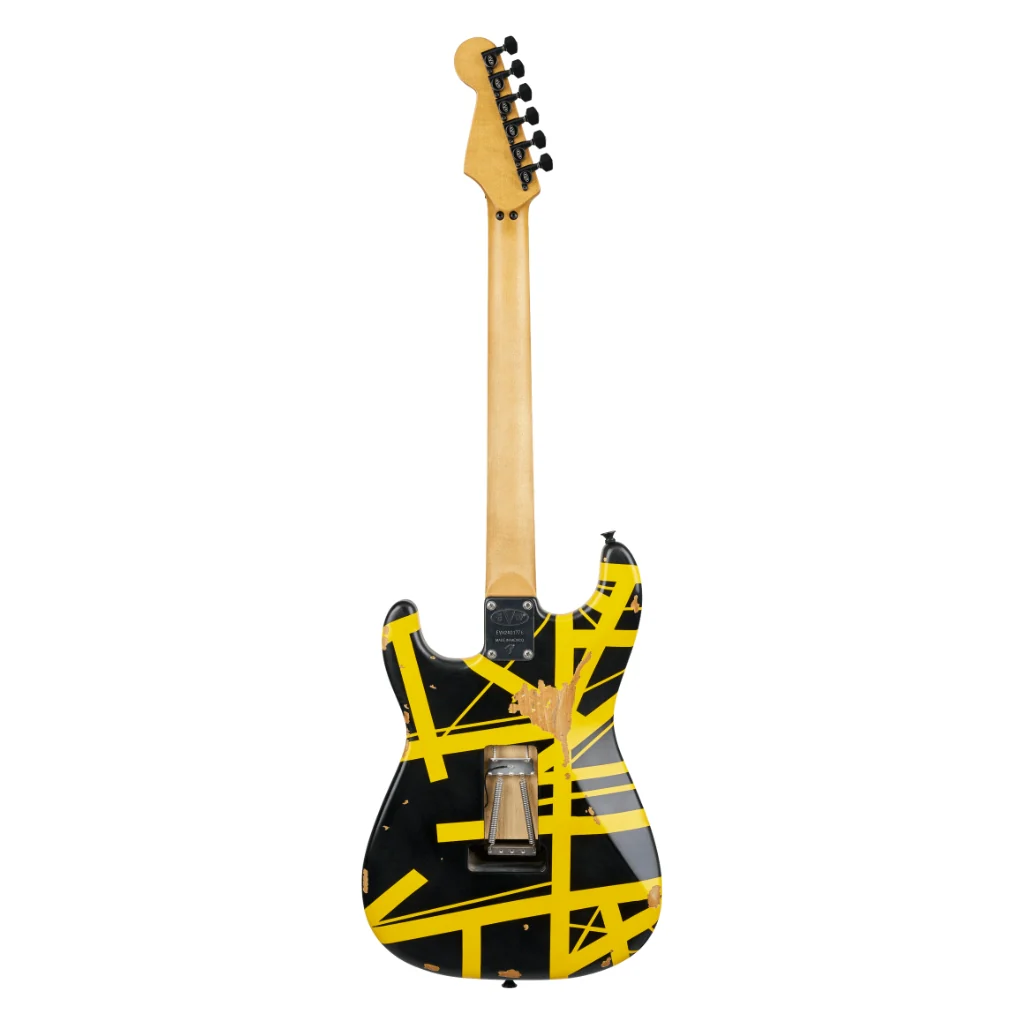

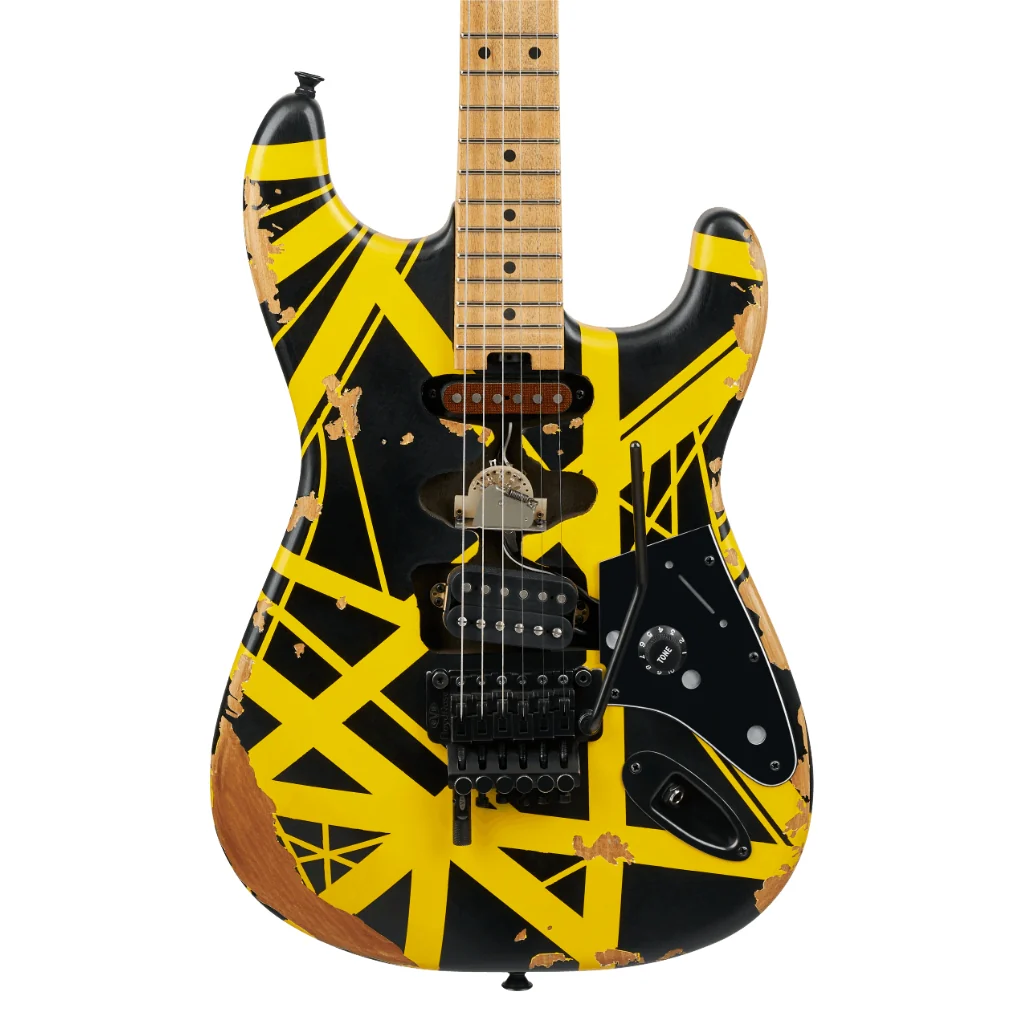

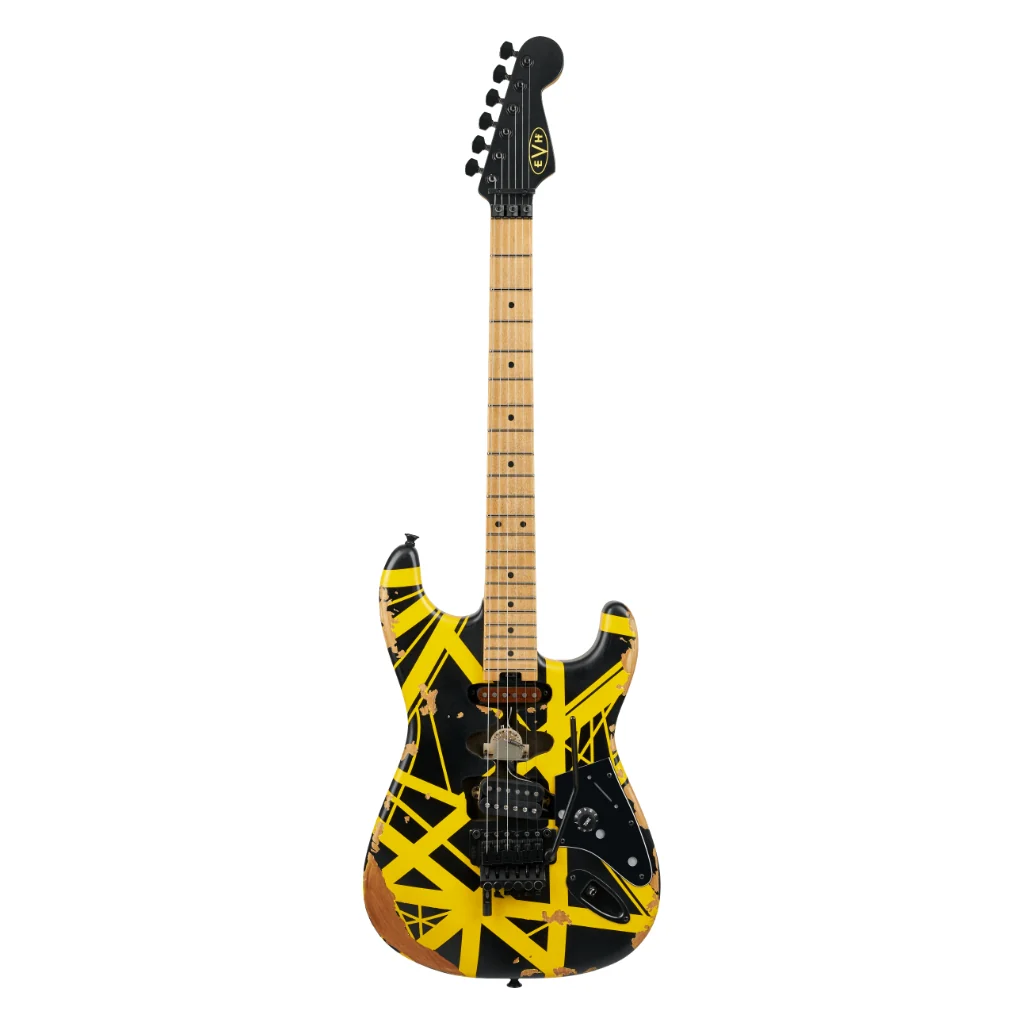

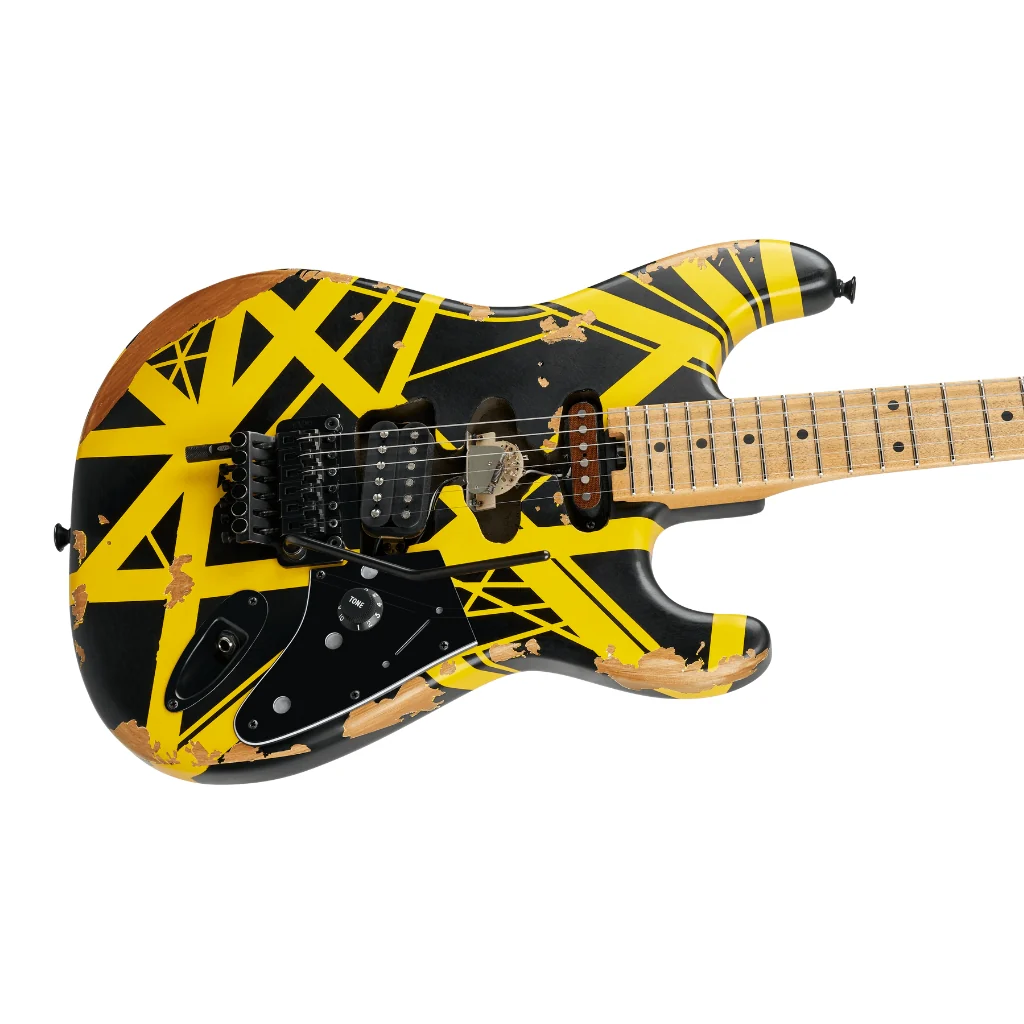

The EVH Limited Edition Striped Series Frankie Electric Guitar captures the raw energy and iconic tone of Eddie Van Halen’s original “Frankenstein” guitar. Featuring an aged black and yellow striped finish, this tribute instrument combines authentic EVH design elements with modern craftsmanship for unparalleled playability and visual impact.

With a basswood Strat-style body, graphite-reinforced quartersawn maple neck, and 12"-16" compound radius maple fingerboard, the Frankie is built for fast, aggressive playing. Equipped with an EVH Wolfgang humbucking bridge pickup, a dummy Strat neck pickup, EVH-branded Floyd Rose locking tremolo with D-Tuna, and push/push volume control for pickup selection, this guitar delivers expressive tone and precise tuning stability. Available now from Sky Music Australia.

Features

• Limited Edition Frankie in aged black with yellow stripes and distressed black hardware
• Basswood Strat-style body with satin lacquer finish
• Graphite-reinforced bolt-on quartersawn maple neck with oiled back finish for smooth playability
• 12"-16" compound radius maple fingerboard with 22 jumbo frets and black dot inlays

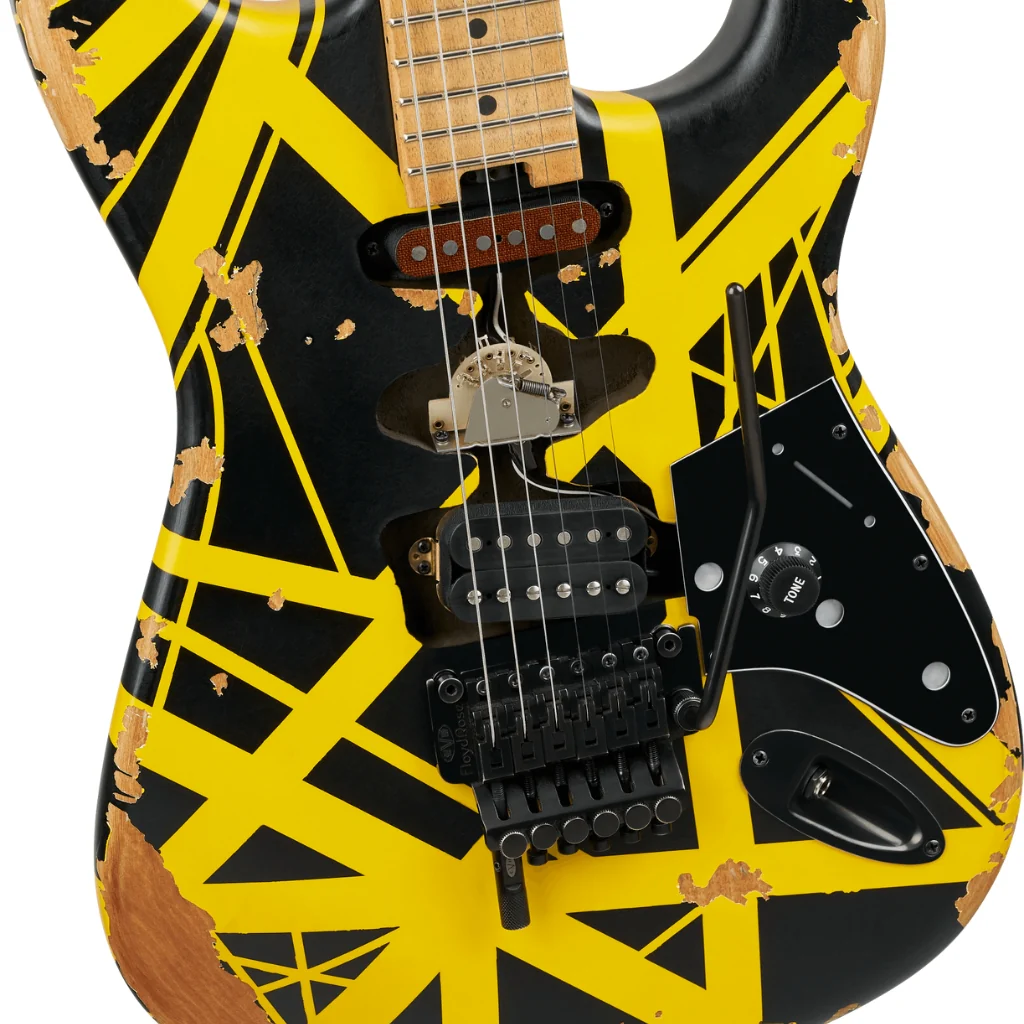

• Direct mount EVH Wolfgang humbucking bridge pickup and dummy Strat neck pickup (push/push volume knob selectable)
• Dummy five-way blade housed in middle pickup position
• EVH-branded Floyd Rose locking tremolo with D-Tuna for drop-D tuning
• Skirted Strat-style black push/push volume knob labeled "tone"
• Black custom Frankie pickguard, oversized strap buttons, and EVH neck plate
• Included accessories: Tremolo arm, hex keys, user manual, and 2.5 mm truss rod wrench

Specs

Category	Solid body
Series	Striped Series
Orientation	Right-Hand
Color	Black with Yellow Stripes

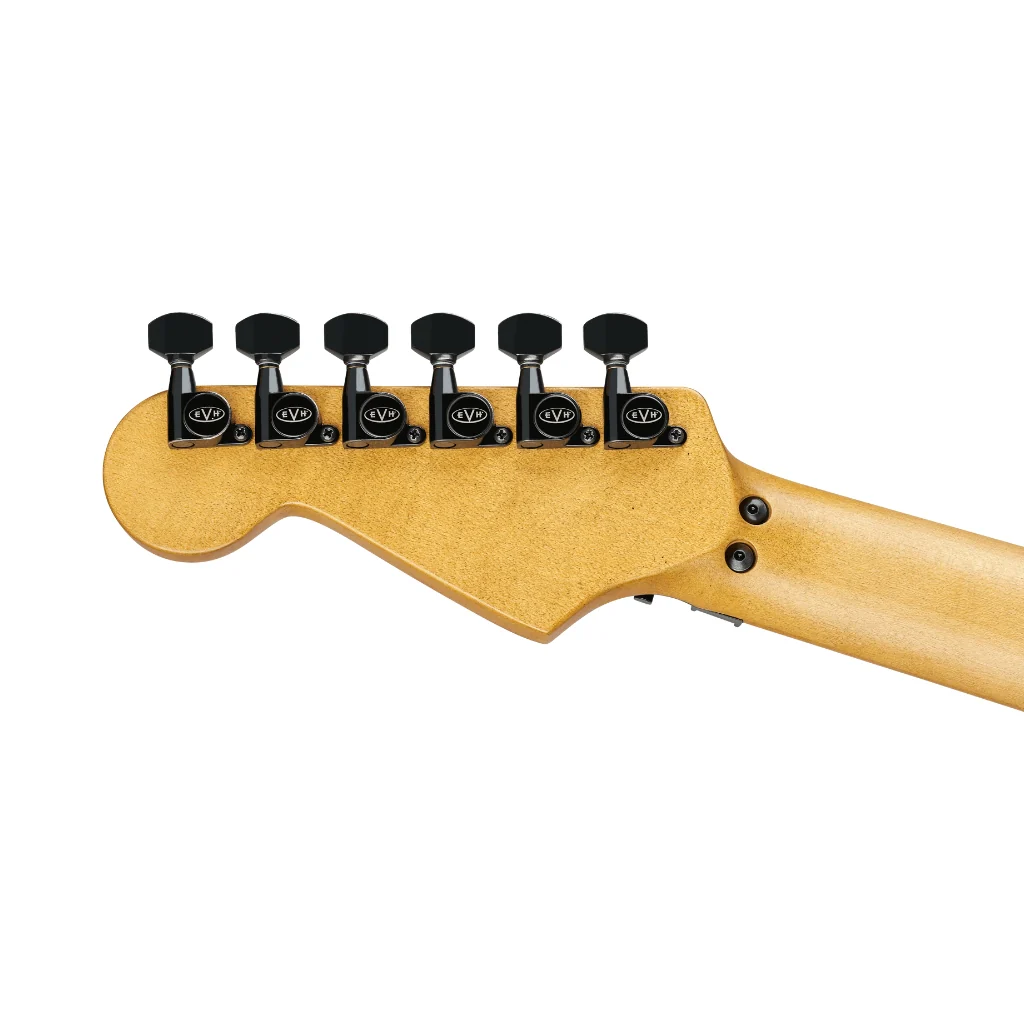

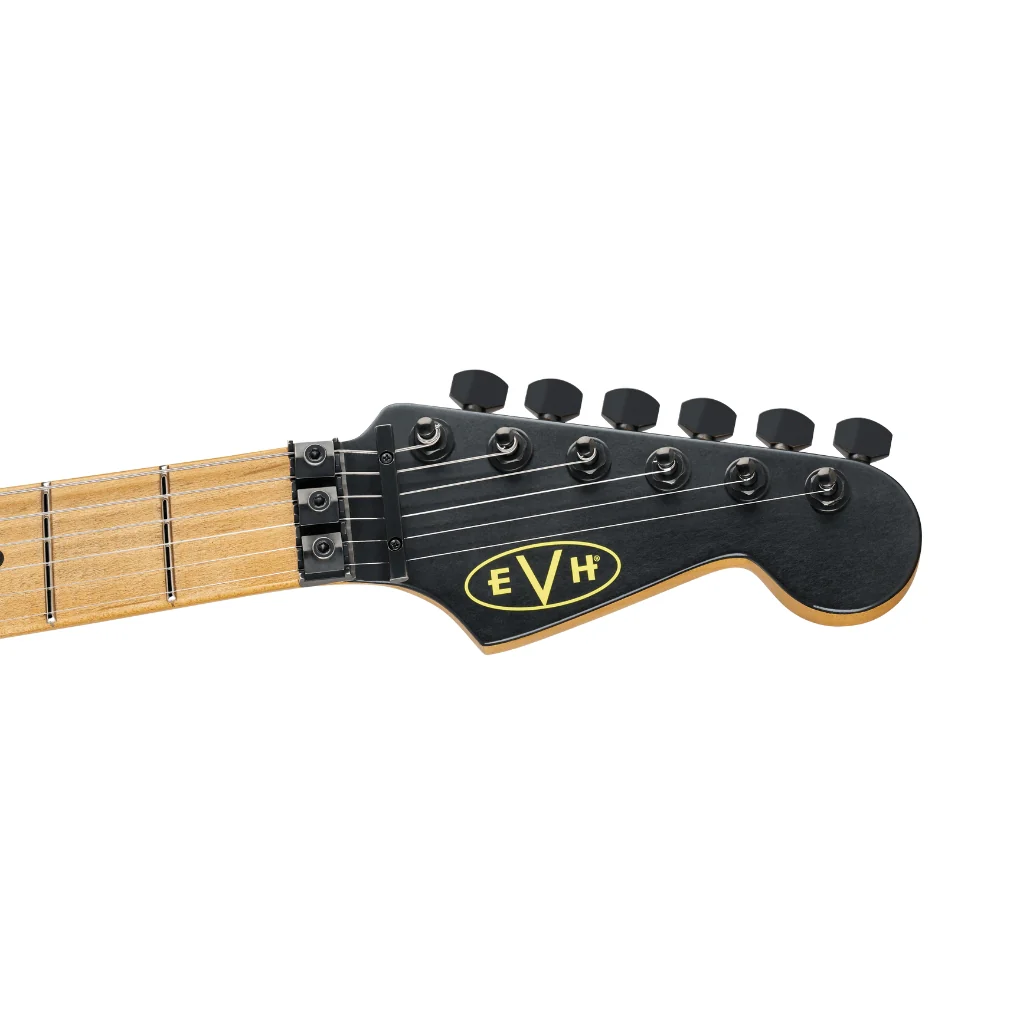

Headstock	Licensed Fender Stratocaster
Neck Material	Quartersawn Maple
Neck Finish	Oiled
Neck Shape	EVH Modified "C" Backshape
Neck Construction	Bolt-On with Graphite Reinforcement
Neck Thickness	.790" at 3rd fret & .825" at 12th fret
Fingerboard Radius	12"-16" Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material	Maple
Position Inlays	Black Dot
Number of Frets	22
Truss Rod	Two-Way Adjustable
Truss Rod Nut	Heel-Mount Truss Rod Adjustment Wheel
String Nut	Floyd Rose R3 Locking, 1.6875" (42.86 mm) width
Fret Size	Jumbo
Scale Length	25.5" (648 mm)
Bridge	EVH-Branded Floyd Rose Locking Tremolo with D-Tuna
Tremolo Block	Brass
Pickguard	Black Custom Frankie
Pickup Covers	Black
Control Knobs	Black Strat-style Skirt labeled "Tone"
Hardware Finish	Black
Tuning Machines	EVH-Branded Gotoh
String Trees	Floyd Rose Retainer Bar
Strings	EVH Nickel Plated Steel (.009-.042)
Tremolo Arm	Floyd Rose 1000 Series Locking

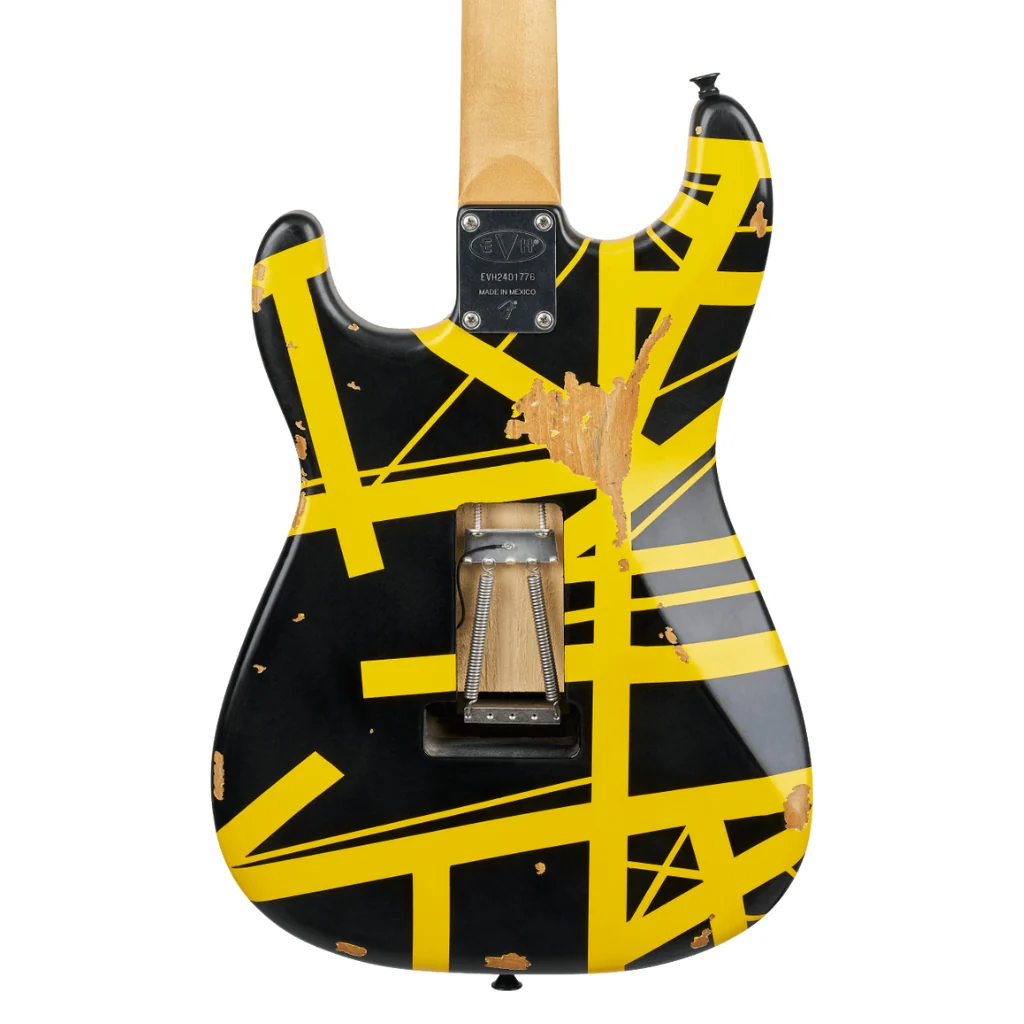

Neck Plate	4-Bolt Standard
Strap Buttons	Oversized
Body	Basswood Strat-style, satin lacquer finish
Bridge Pickup	Direct Mount EVH Wolfgang Humbucking
Middle Pickup	N/A
Neck Pickup	Dummy Strat Pickup
Pickup Configuration	HSS
Controls	Volume (Push/Push for Pickup Switching)
Switching	Push/Push: Down = Bridge Pickup, Up = Neck Pickup
Included Accessories	Tremolo Arm, Hex Keys & User Manual
Truss Rod Wrench	2.5 mm Hex

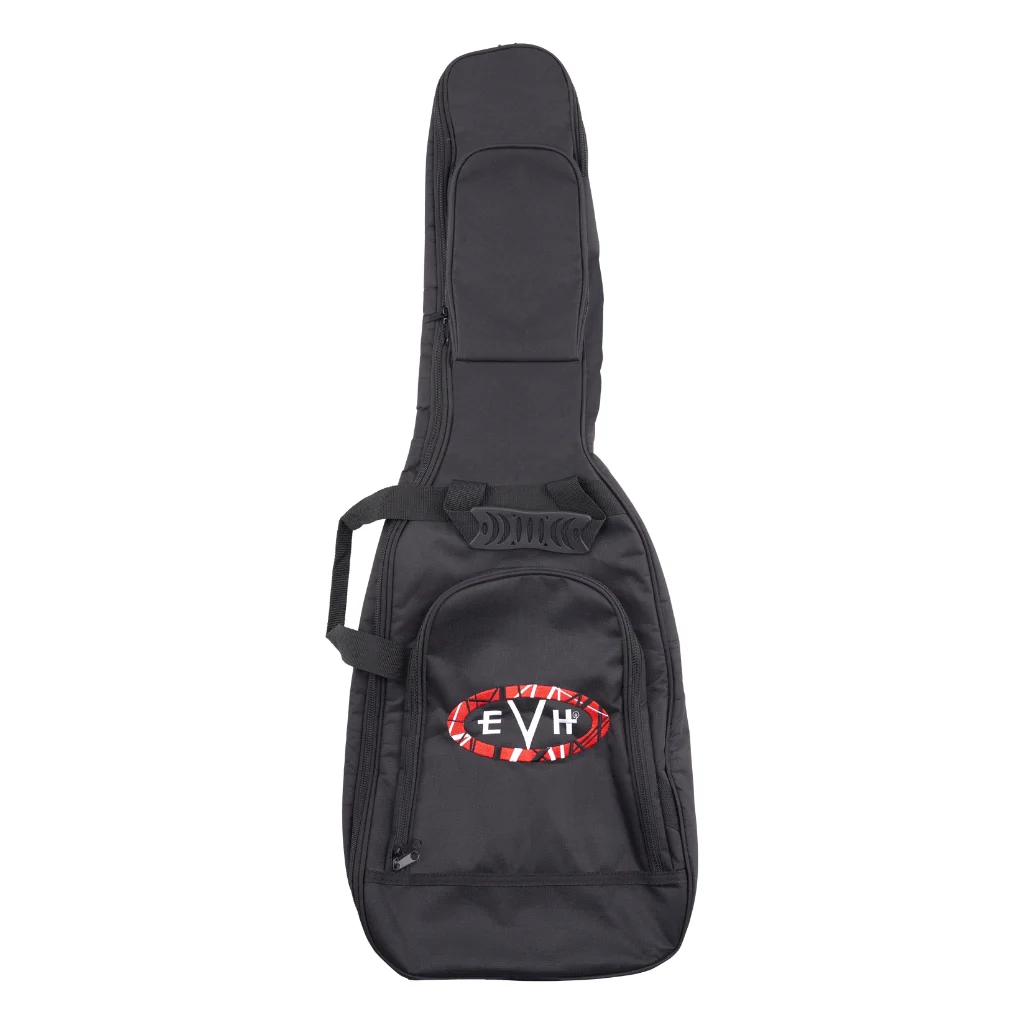

Case / Gigbag	Bag included
