Marshall ST20H - 20W Studio JTM Head
The unrivalled number one is here, just smaller. Reproducing the legendary, warm and smooth tones of the original Marshall JTM, the Studio JTM packs a punch. Swap between 20W and 5W at the flick of a switch and let the era-defining sound of the JTM steal the show, whether itās playing at home, or on stage. Make sure to pair the ST20H with one of our Studio cabinets for a small but perfectly formed Marshall rig.Ā With newly added details, the Studio JTM is brought into the present day, complete with an FX Loop and DI out. Players can also jump channels like a pro with a patch cable to blend between Normal and High Treble tones, just like on the original JTM.Ā
Ā
Specs
| Model | ST20H |
|---|---|
| Range | Studio |
| Technology | Valve |
| Channels | 1 with 2 voicings |
| ELECTRONICS | Ā |
| Output wattage | 20W (with power reduction option to 5W) |

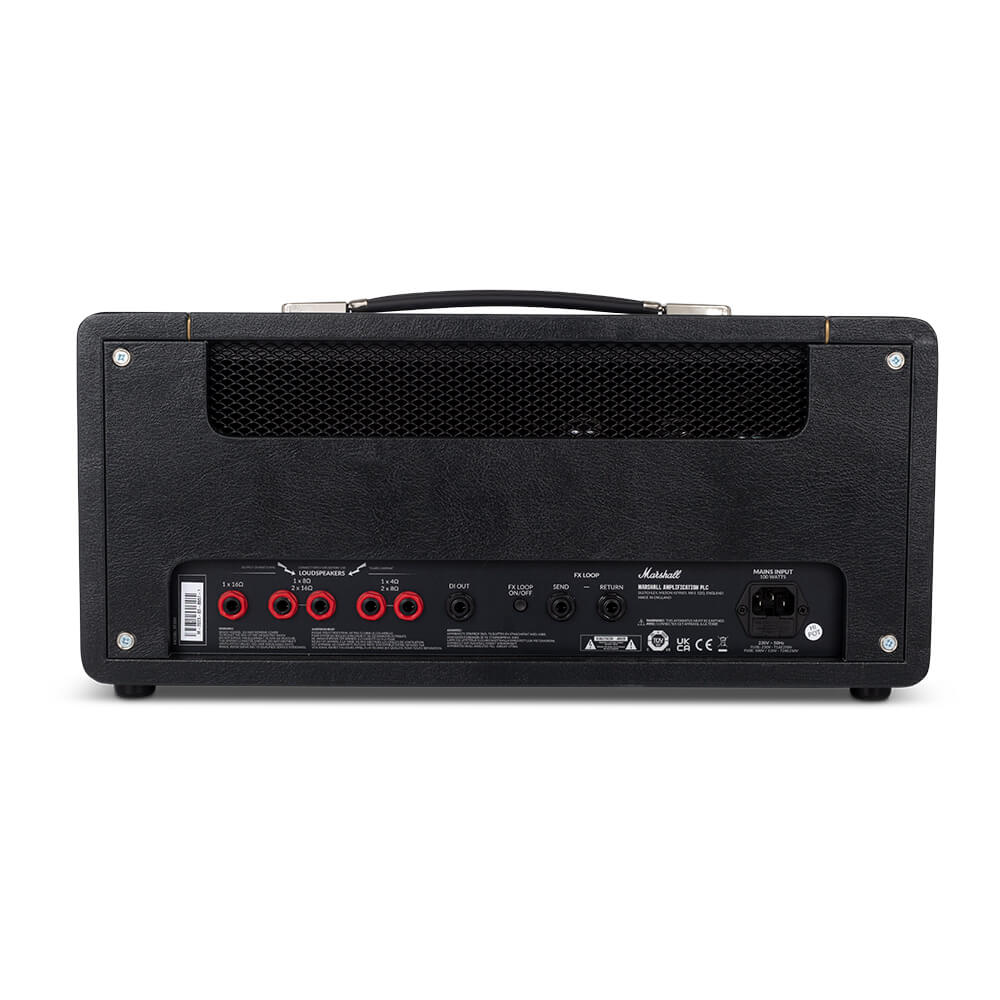

| Outputs | 5 x 1/4ā jack sockets (16Ī© load / 8Ī© load / 4Ī© load) |
| Inputs | 4 x 1/4 jack instrument inputs (high/low sensitivity) |

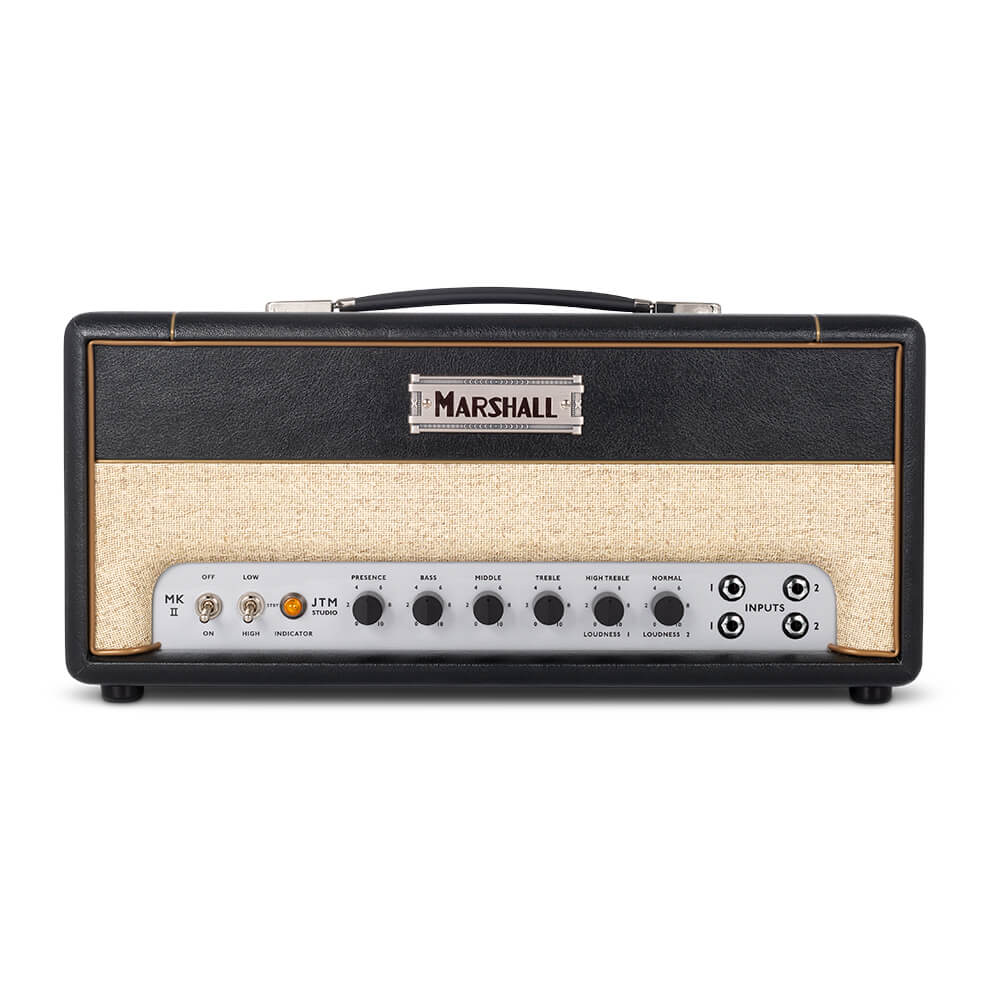

| Controls | Treble, Middle, Bass and Presence |
| Effects | None |
| Effects loop | Yes, send/return |
| VALVES | Ā |
| Preamp valves | 2 x ECC83, 1 x ECC83 (phase splitter) |
| Power amp valves | 2 x 5881 |
| ACCESSORIES | Ā |
| Cable | Detachable power cable included |
| Cable | Speaker cable included |
| DIMENSIONS (INCLUDING FEET AND HANDLE) | Ā |
| Weight | 9.25kg / 20.4lbs |
| Width | 500mm / 19.7 |
| Height | 240mm / 9.4 |
| Depth | 230mm / 9.1 |
