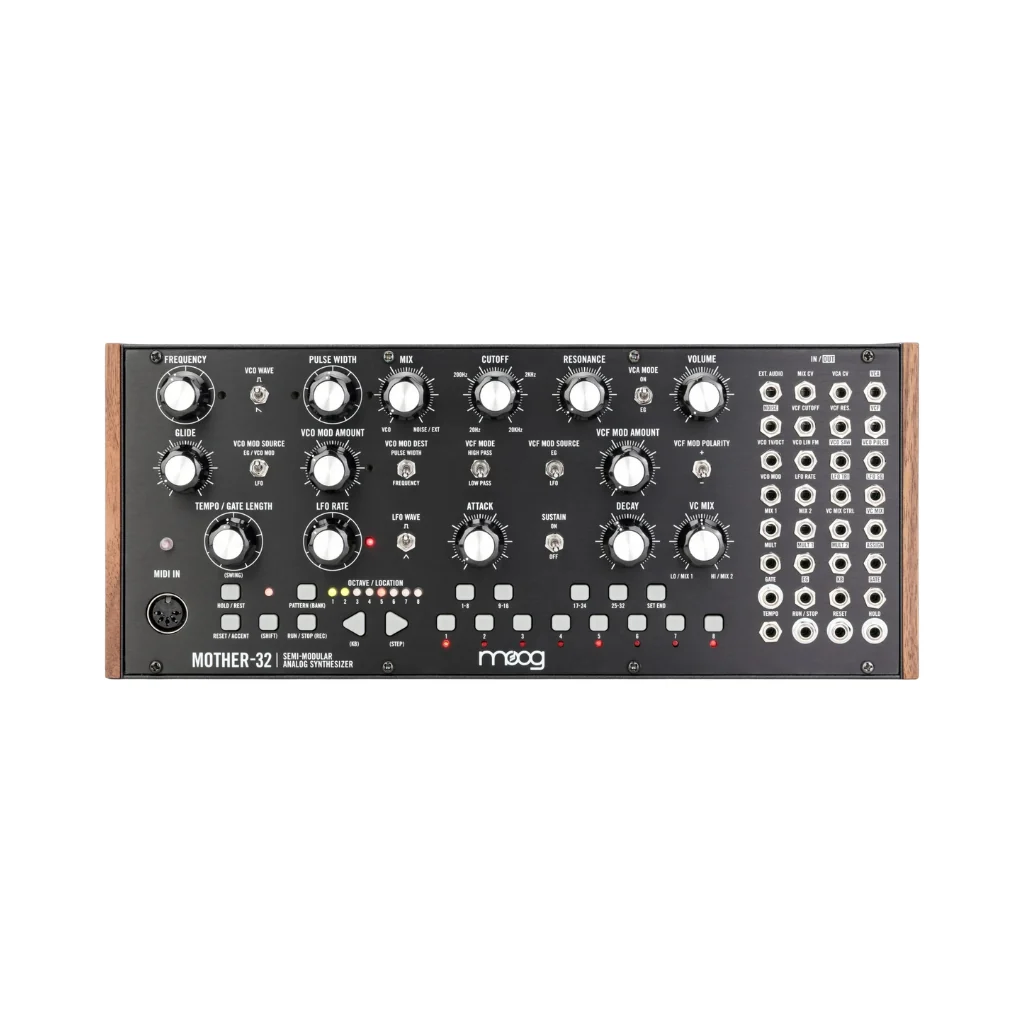

The Moog Mother-32 is Moog’s first-ever semi-modular synthesizer designed for tabletop or Eurorack use—an inspiring tool that combines vintage Moog analog sound with powerful sequencing and flexible patching. Whether you're new to modular synthesis or expanding an existing setup, the Mother-32 offers a deeply musical and accessible entry into the world of modular sound design.

Its signature analog oscillator delivers classic saw and pulse waveforms, routed through Moog’s legendary ladder filter—selectable between lowpass and highpass modes. You can shape your sound further with the built-in LFO, white noise generator, and an ADS envelope with sustain switch.

The integrated 32-step sequencer with 64 sequence memory slots lets you create evolving patterns with ratcheting, glide, and accent features—all editable on the fly. Plus, a 32-point patchbay enables deep modular integration and experimentation. With MIDI-to-CV conversion, extensive CV I/O, and Eurorack compatibility, the Mother-32 seamlessly bridges traditional analog workflows with modern modular freedom.

Features

• Moog's first semi-modular tabletop and Eurorack synth
• Classic analog monosynth voice with rich Moog tone
• 32-step sequencer with 64 recallable sequences and live performance features
• 13-button keyboard for note entry, pattern programming, and performance
• Vintage-style Moog oscillator with pulse and sawtooth wave outputs
• Switchable Ladder filter (lowpass/highpass) with voltage-controlled resonance
• Built-in white noise generator for percussive and atmospheric textures
• Voltage-controlled mixer to combine modulation/control sources
• Fully featured 32-point patchbay for modular flexibility
• MIDI input and MIDI-to-CV conversion for integration with DAWs or controllers
• Eurorack compatible 60HP synth module with included case and power supply

Specs

• Type: Semi-modular Analog Desktop Synthesizer and Sequencer
• Analog/Digital: Analog
• Polyphony: Monophonic
• Oscillators: 1 x Analog VCO (Sawtooth, Pulse)
• Filter: 4-pole Moog Ladder Filter (Lowpass/Highpass)
• Envelope Generator: Attack, Decay, Switchable Sustain
• LFO: Triangle and Square waveforms (audio-rate capable)
• Noise Generator: White noise
• Sequencer: 32-step, 64 pattern locations with real-time control
• Patchbay: 32 x 3.5mm patch points
• Audio Inputs:
  • 1 x 1/8" External Audio In
  • 2 x 1/8" Mix Inputs (VC Mixer)
• Audio Outputs:
  • 1 x 1/4" TRS (Main Out / Headphones)
  • 5 x 1/8" CV/Audio Outs (VCO Saw, VCO Pulse, VCF, VCA, VC Mix)
• MIDI I/O: 1 x 5-pin MIDI In
• Other I/O: USB (for MIDI over USB)
• Expansion: Eurorack-compatible (60HP), can be rack-mounted
• Power Supply: 12V DC power adapter (included)
• Dimensions (H x W x D): 4.21" x 12.57" x 5.24"
• Weight: 3.5 lbs
