No compromises. Just smaller.

Quad Cortex mini delivers the full Quad Cortex experience in their most compact, usable format yet, without cutting corners. It brings the same processing power, audio quality, Neural Capture technology, and 7” touchscreen in a footprint that fits effortlessly into pedalboards, modern rigs, or on your desktop. Built for exceptional performance at its size and price, Quad Cortex mini makes it easy to dial in world-class sounds, explore a vast range of amps, effects, and Captures, and build rigs without creative limits wherever you play.

Whether you’re stepping into the Quad Cortex platform for the first time or already feel at home, Quad Cortex mini shares the same platform and workflow, making great sounds fast, intuitive, and deeply rewarding from the first note. A complete guitar and bass rig in a remarkably small footprint, designed to fit naturally into pedalboards, modern rigs, and desktop setups, from studio to stage and everywhere in between. With a footprint of just 22.8 × 11.8 cm and a weight of 1.5 kg, Quad Cortex mini delivers flagship performance in a form that’s easy to place, easy to carry, and simple to integrate into existing rigs.

Features

• Full Quad Cortex processing power: Flagship performance in a compact format
• Intuitive visual workflow: 7-inch touchscreen with grid-based signal flow
• Neural Capture technology: Create and play ultra-accurate digital replicas of real amps, cabs, drive pedals, and compressors
• More than 50% smaller footprint: All the power of Quad Cortex, ready anywhere

Specs

Virtual Devices Library	200
Neural Captures Library	1500
Impulse Responses Library	1000
User Presets Storage	3072
User Captures Storage	2048
User IRs Storage	2048
Plugin Compatibility	Yes
Parameter Encoder Assignments	Yes*
SCENE & STOMP Modes	Yes**
HYBRID Mode	Yes***
Neural Capture™ Version 1	Yes
Neural Capture™ Version 2	Yes
Cortex Cloud™ Access	Yes
Cloud Backups	Yes
Cortex Control™ App	Yes
Global EQ	Yes
Looper	Yes
Momentary Footswitch Assignments	No

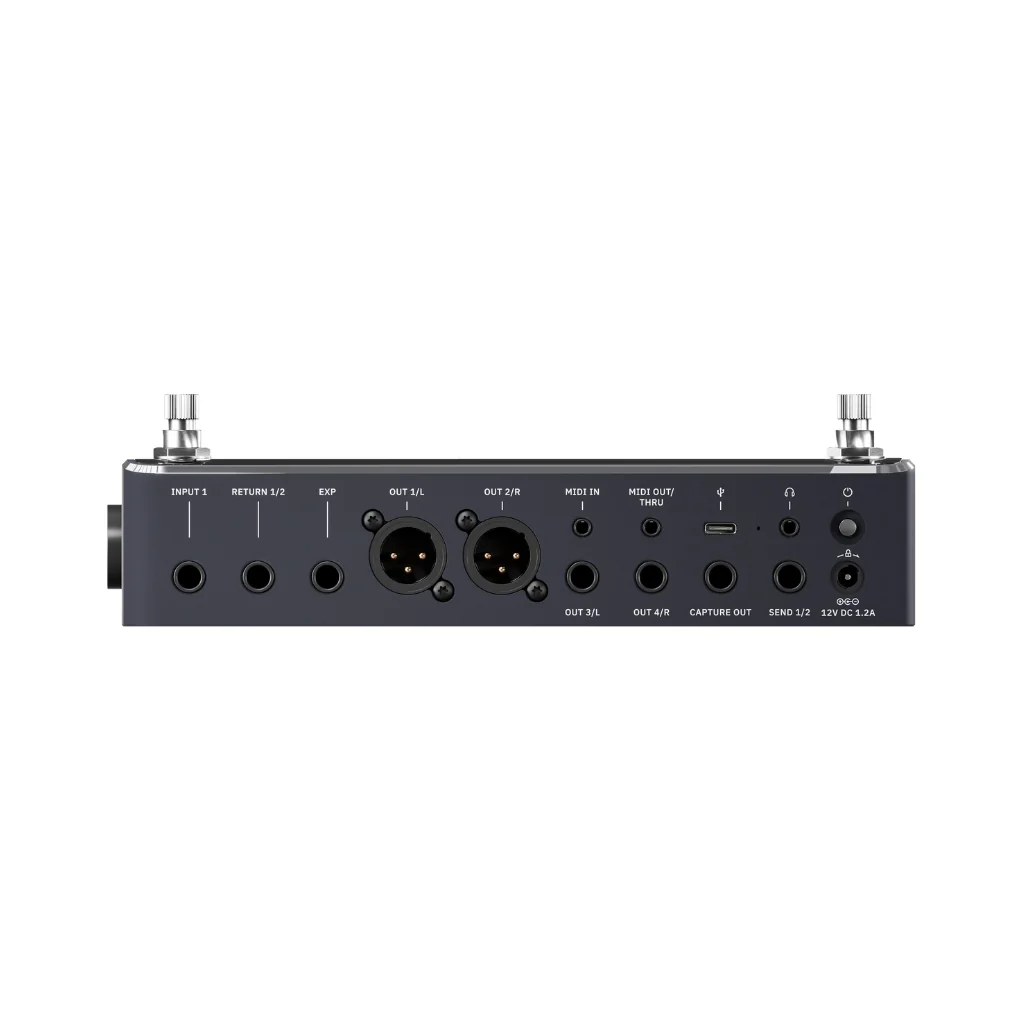

Audio Inputs	1x 1/4" TS (Input 1) 1x Combo XLR + 1/4" TRS (Input 2) 1x 1/4" TRS (Returns 1/2)*
Audio Outputs	2x XLR (Outs 1/2) 2x 1/4” TS (Outs 3/4) 1x 1/4” TRS (Sends 1/2)* 1x 1/4” TRS (Capture Out) 1x 1/8” TRS (Headphones)
Headphones	Yes (1/8" TRS)
USB Audio	(USB-C) USB Audio Class Compliant (24bit - 48kHz) 8 in / 8 out
MIDI	In (1/8" TRS Type-A), Out (1/8" TRS Type-A), MIDI Over USB
Expression Pedal	Expression 1: 1/4" TRS Expression 2: MIDI
Wireless Connectivity	Yes - IEEE 802.11 b/g/n Wi-Fi module (2.4GHz ISM band)
Power Switch	Yes
Master Volume	Yes (+/- Buttons)
Footswitches	4 x Stainless Steel + Rotary Footswitches
Display	7" Color touch Screen
Chassis	Anodized aluminum
Power	12V DC 1.2A Center Negative 2.1/5.5mm DC Locking Connector Power Supply Included
Dimensions	22.8 x 11.8 x 6.5 cm / 8.9 x 4.6 x 2.5"
Weight	1.5 kg / 3.3 lbs
