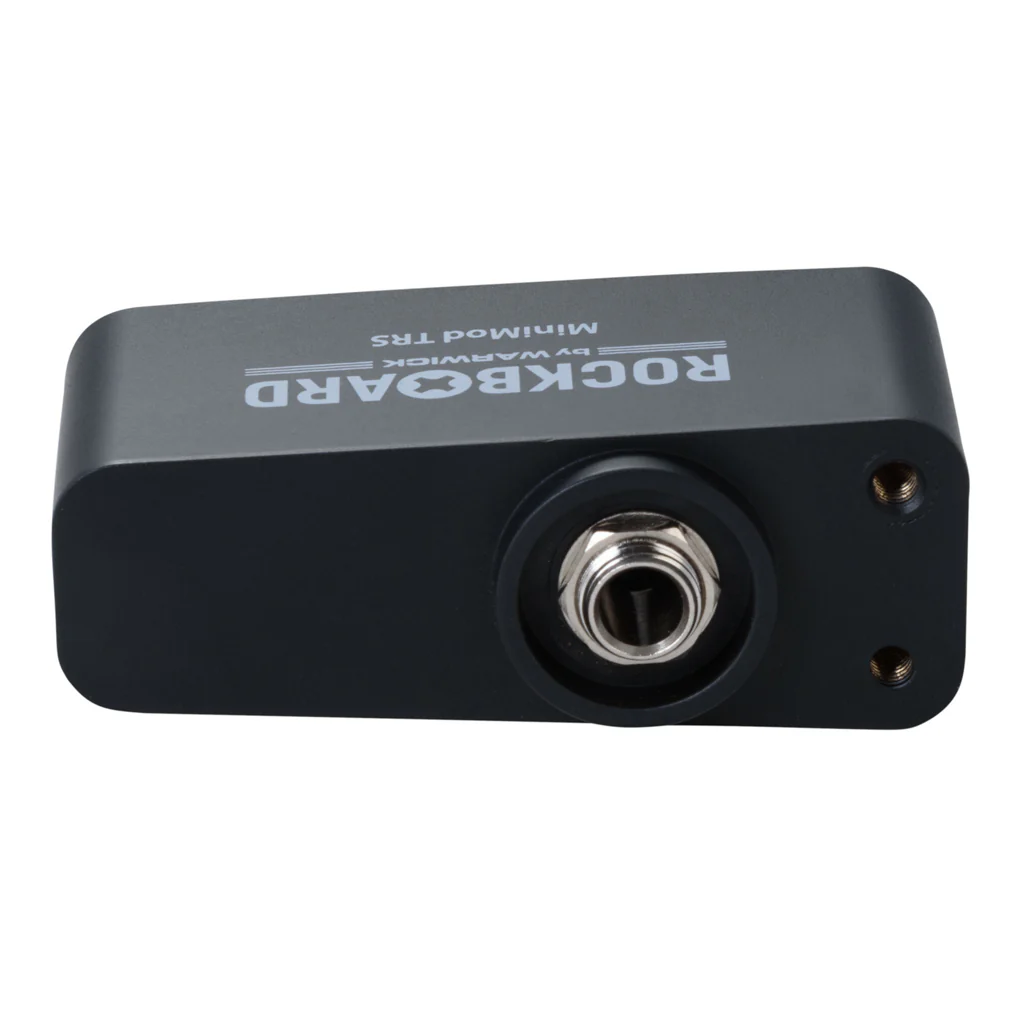

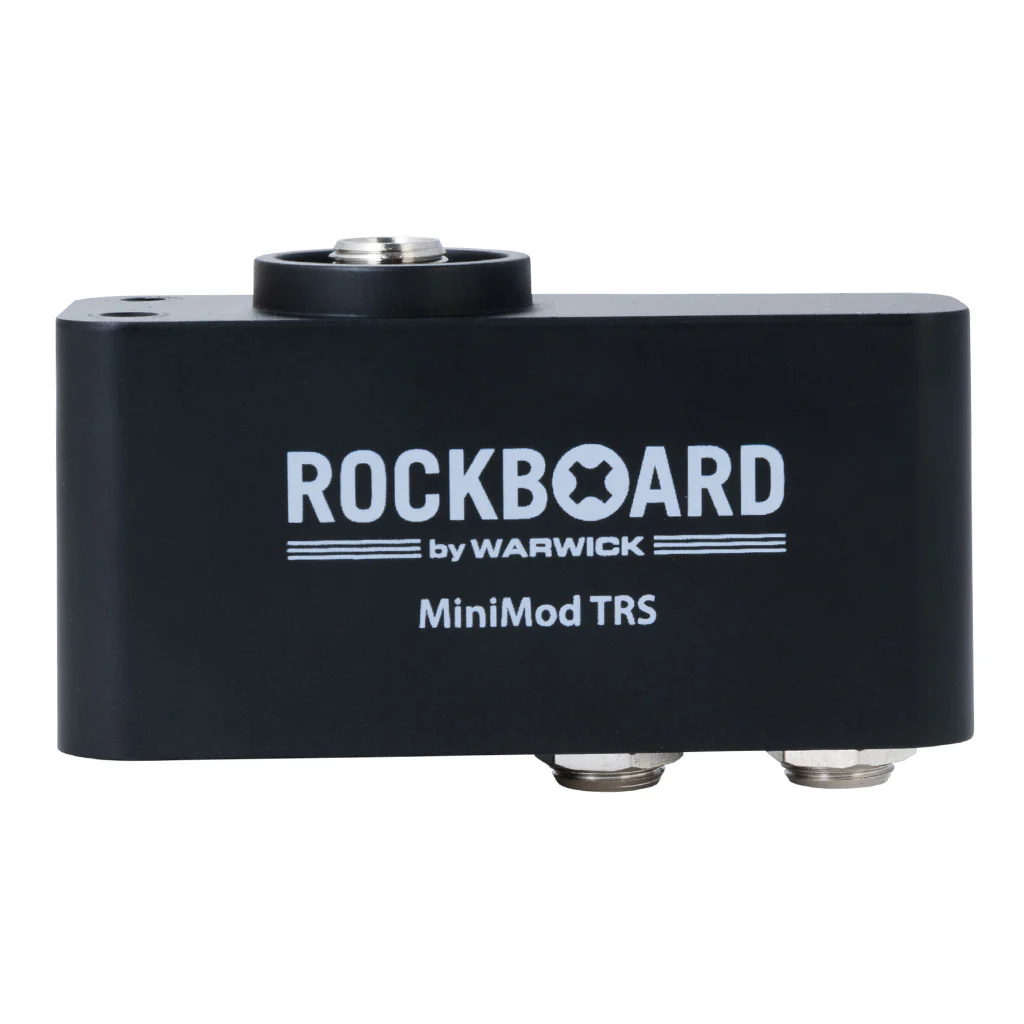

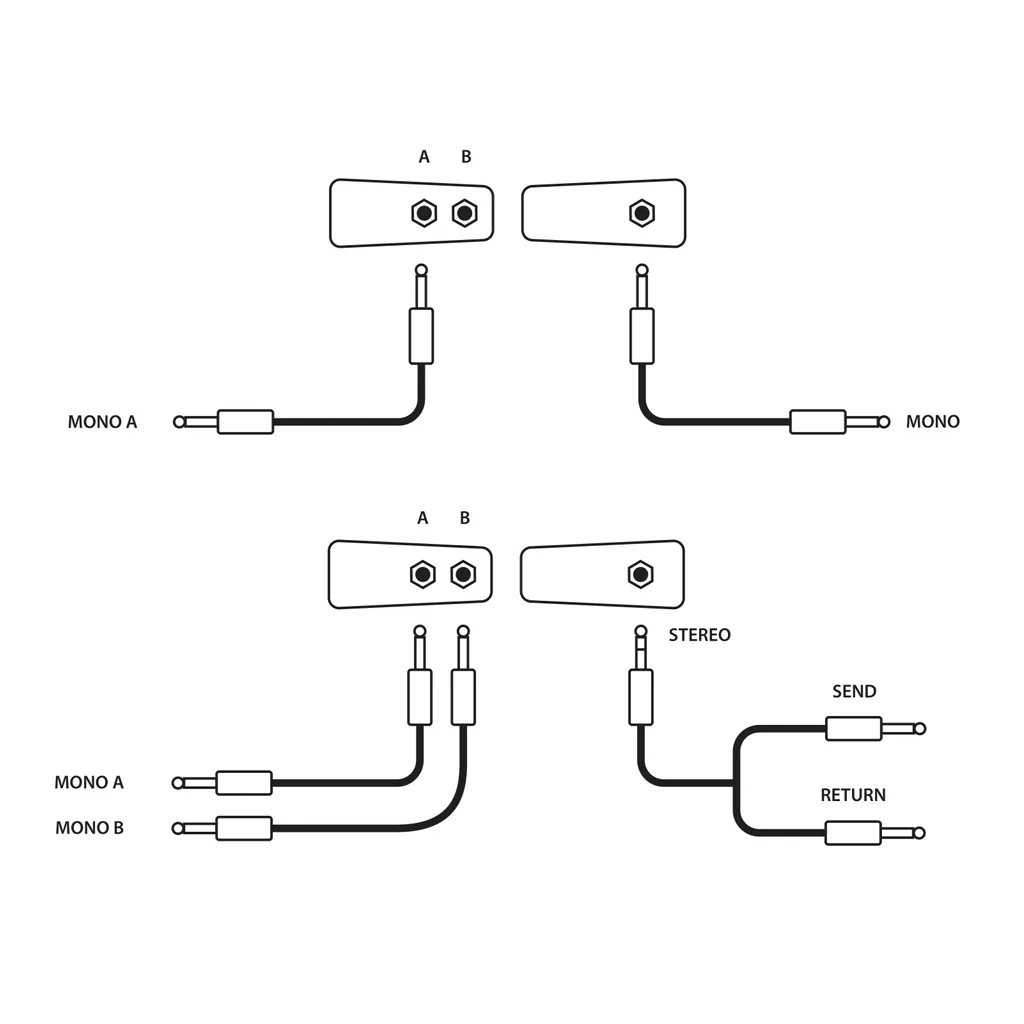

The Mini Mounting MOD TRS provides convenient access to the signal supply of the pedals on the board. It fits perfectly into the mounting holes of the RockBoard® LED Light and is a versatile, clean mounting solution for all RockBoard® series pedalboards. Central access to the signal supply is provided by a 6.3 mm TRS stereo jack. Since the TRS jacks are pass-through jacks, it is also possible to route signals in the opposite direction to external pedals, such as a Wah. Using TRS stereo jacks also makes it easy to implement "send/return" applications (A- = tip and B- = ring).

Features

• Mini MOD TRS
• Mounting solution for RockBoard pedalboards
• Fits in the mounting hole for the RockBoard LED Light

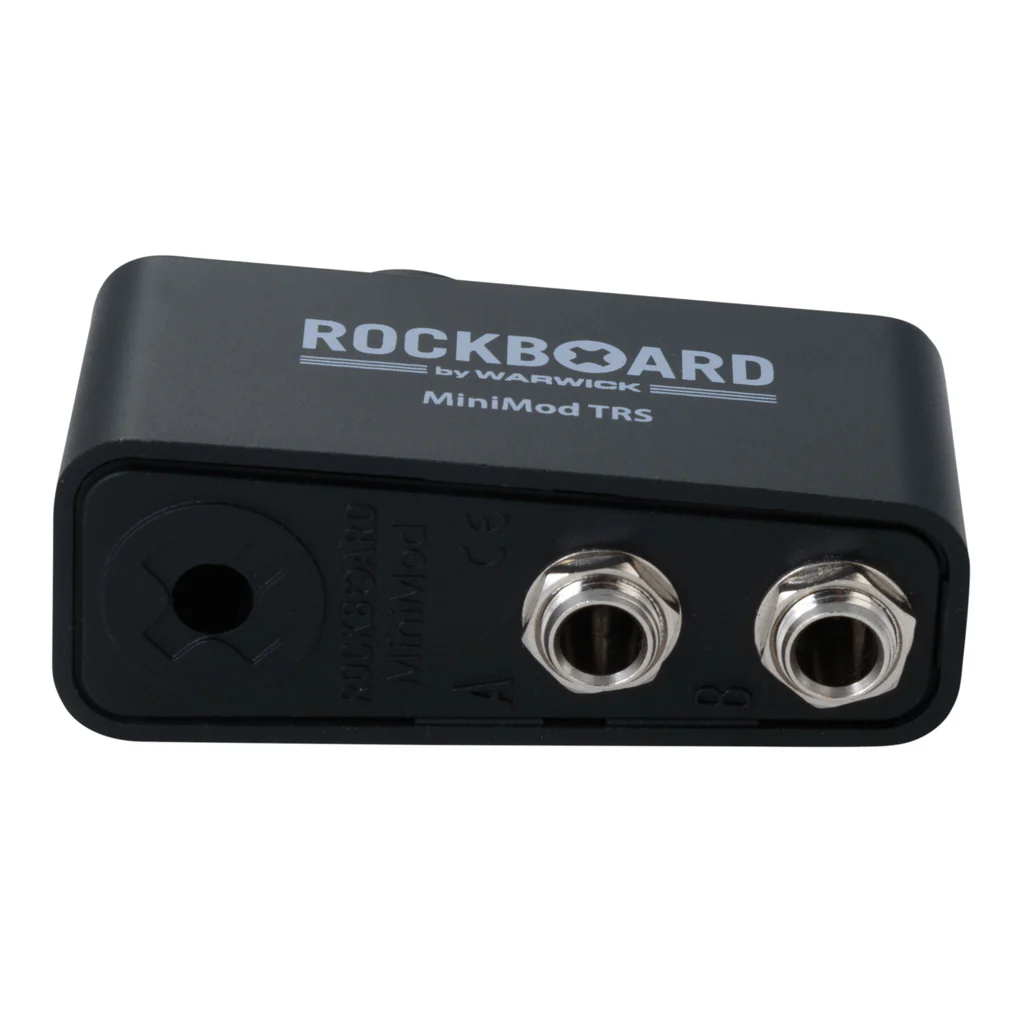

• 1 x 6.3mm (1/4") TRS jack to 2 x 6.3 mm (1/4") TRS jack
• No drill holes are necessary
• Dimensions: (W x D x H): 25 - 20 x 35 x 70 mm - 63/64"- 25/32" x 1 3/8" x 2 3/4"
• Weight: 50 g / 0.11 lbs
• Including mounting screws
