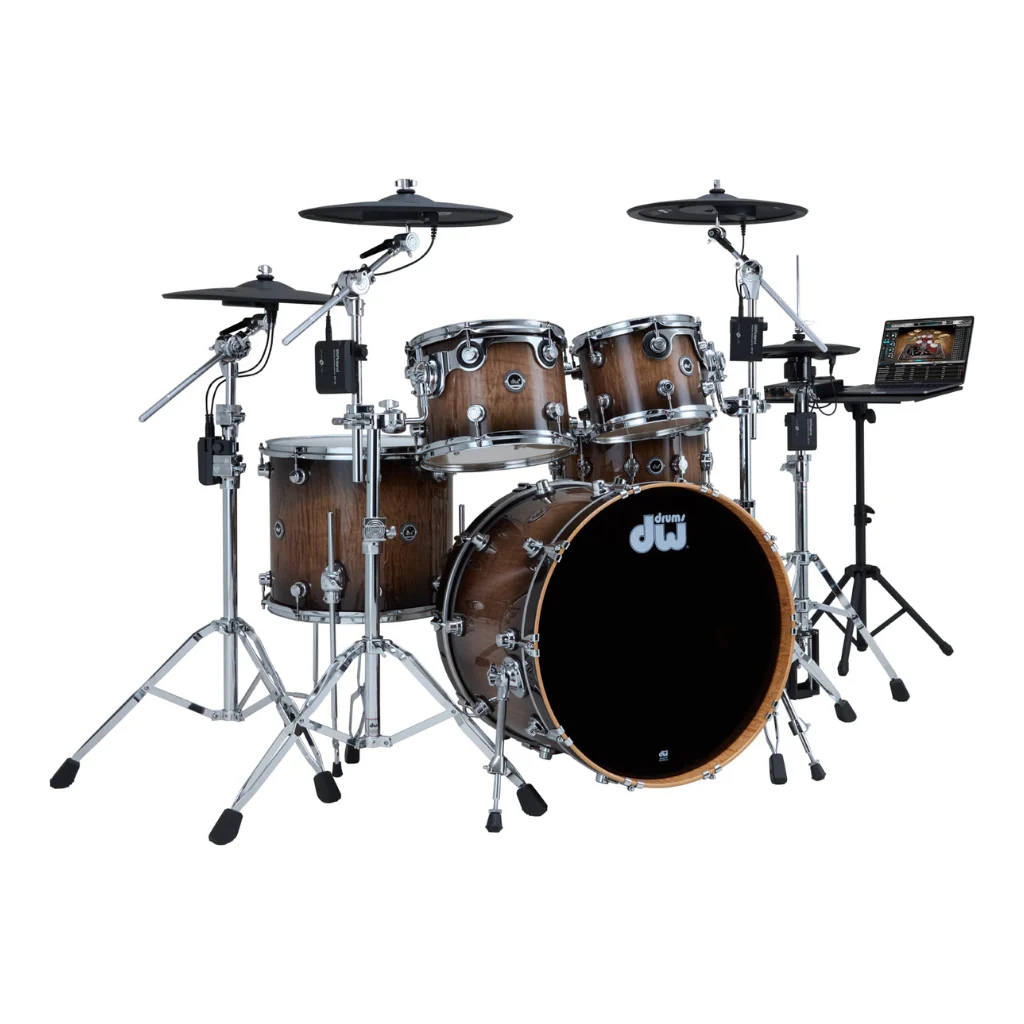

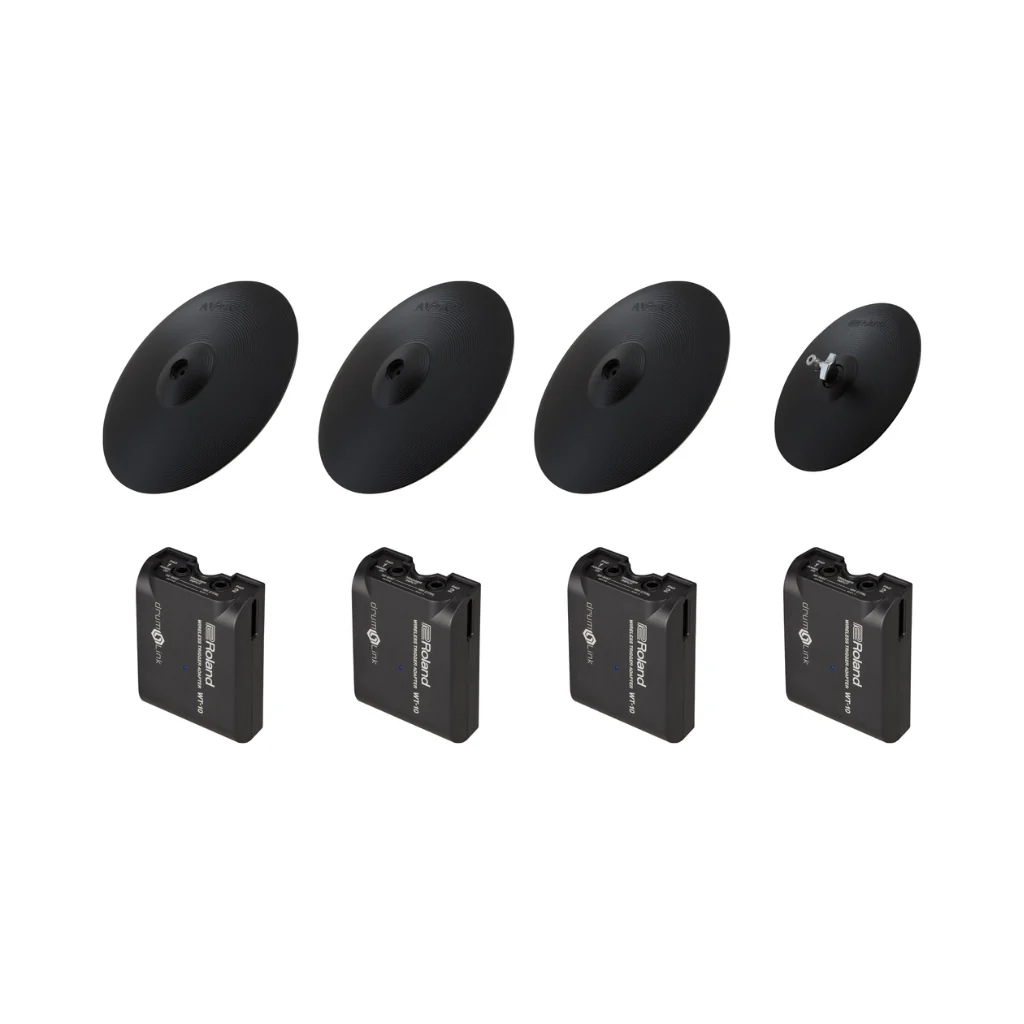

Outfit your DW DWe acoustic-electronic wireless drum kit with pro-grade Roland electronic cymbals using the Roland 4CY-4WT-01 DrumLink Cymbal Pack. This premium bundle includes three CY-16R-T 16” triple-zone crash/ride cymbals, one VH-10 V-Hi-Hat, and four WT-10 Wireless Trigger Adapters for seamless integration with the DWe DrumLink Wireless Hub.

Perfect for hybrid drummers, this system enables expressive, high-resolution cymbal performance — wirelessly — while delivering low latency, reliable communication, and accurate response.

Features

• Complete Cymbal Upgrade Kit: Designed for DWe wireless hybrid drum kits.
• High-End Cymbals Included:
  • 3 × CY-16R-T (16” triple-zone crash/ride with bow, bell, edge zones)
  • 1 × VH-10 V-Hi-Hat (dual-zone, 12”)
• Wireless Freedom:
  • 4 × WT-10 Wireless Trigger Adapters transmit via Roland’s proprietary 2.4 GHz protocol.
  • Up to 10m (32 ft) wireless range (line of sight).
• Plug & Play Integration: Simple setup with included cables and mounting accessories.

Specs

CY-16R-T Crash/Ride Cymbal

• Size: 16 inches (407 mm)
• Zones: 3 (Bow, Bell, Edge)
• Connectors: BELL OUTPUT, BOW/EDGE OUTPUT
• Weight: 1.3 kg (2 lbs 14 oz)
• Included Accessories: Cymbal nut, felt washer, stopper, cable tie, manuals

VH-10 V-Hi-Hat Pad

• Size: 12 inches (314 mm)
• Zones: 2 (Bow, Edge)
• Connectors: Trigger output, control output
• Weight: 1.2 kg (2 lbs 11 oz, excl. motion sensor)
• Accessories: Motion sensor unit, cable tie, insulating plate, manuals

WT-10 Wireless Trigger Adapter

• Wireless Range: Up to 10 m / 32 ft (line-of-sight)
• Frequency Band: 2.4 – 2.485 GHz (ISM)
• Trigger Inputs: PAD1, PAD2
• Power: 2 × AA batteries (up to 6 months battery life)
• Mounting Diameter Range: 4.5–32 mm (3/16–1-5/16 inches)
• Included Accessories: Clamp, 2 × 0.4m cables, manuals
