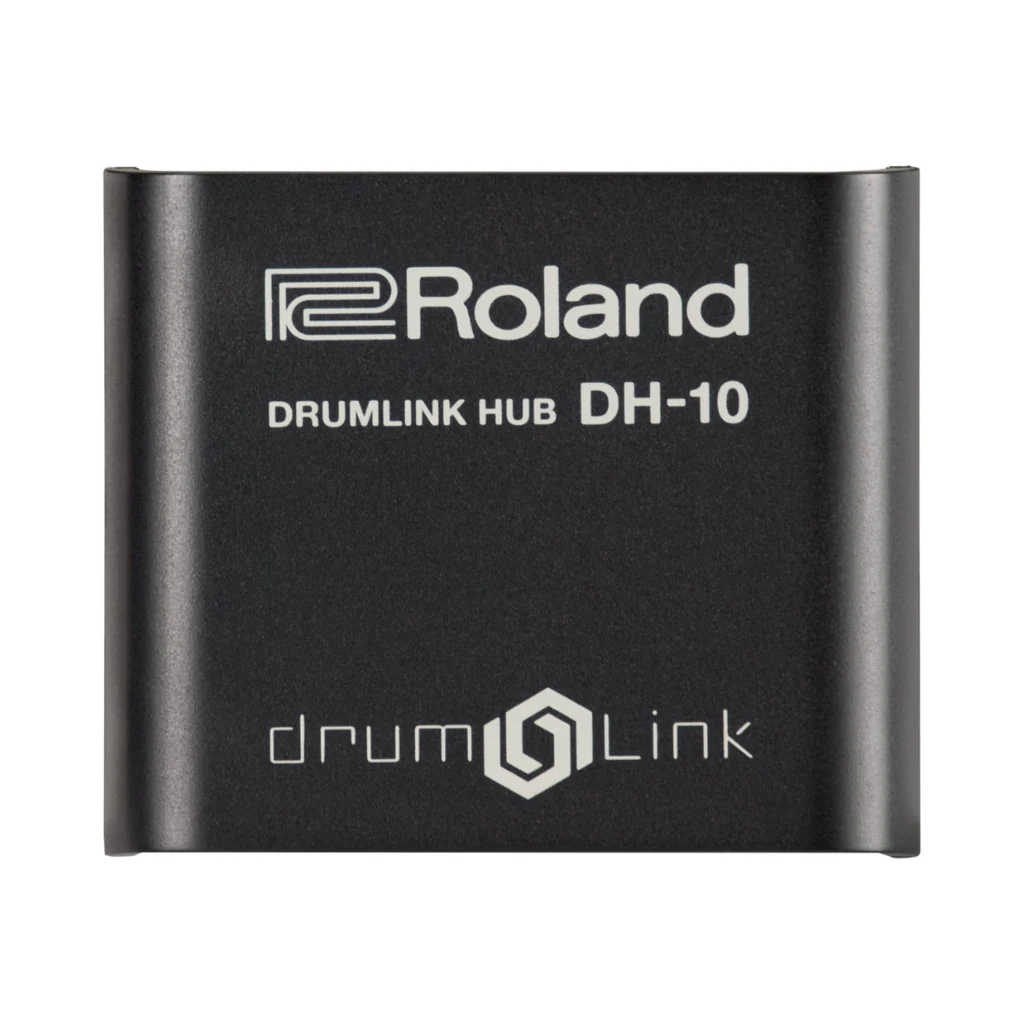

Go wireless and simplify your drum setup with the Roland DH-10 DrumLink Hub — the compact receiver at the heart of the advanced DrumLink wireless trigger system. Designed to pair seamlessly with Roland WT-10 Wireless Trigger Adapters, the DH-10 receives trigger signals and transmits them to your compatible Roland sound module or computer via USB-C or MIDI.

Ideal for use with V-Drums modules like the TD-50X, TD-27, or V71, as well as the SPD-SX PRO Sampling Pad, this receiver streamlines your setup while maintaining lightning-fast response and professional-grade stability. Compact, efficient, and ready for any hybrid or electronic drum rig, the DH-10 lets you ditch the cables and unleash your creativity.

Features

• Compact wireless receiver for the Roland DrumLink system
• Receives trigger signals from multiple WT-10 Wireless Trigger Adapters

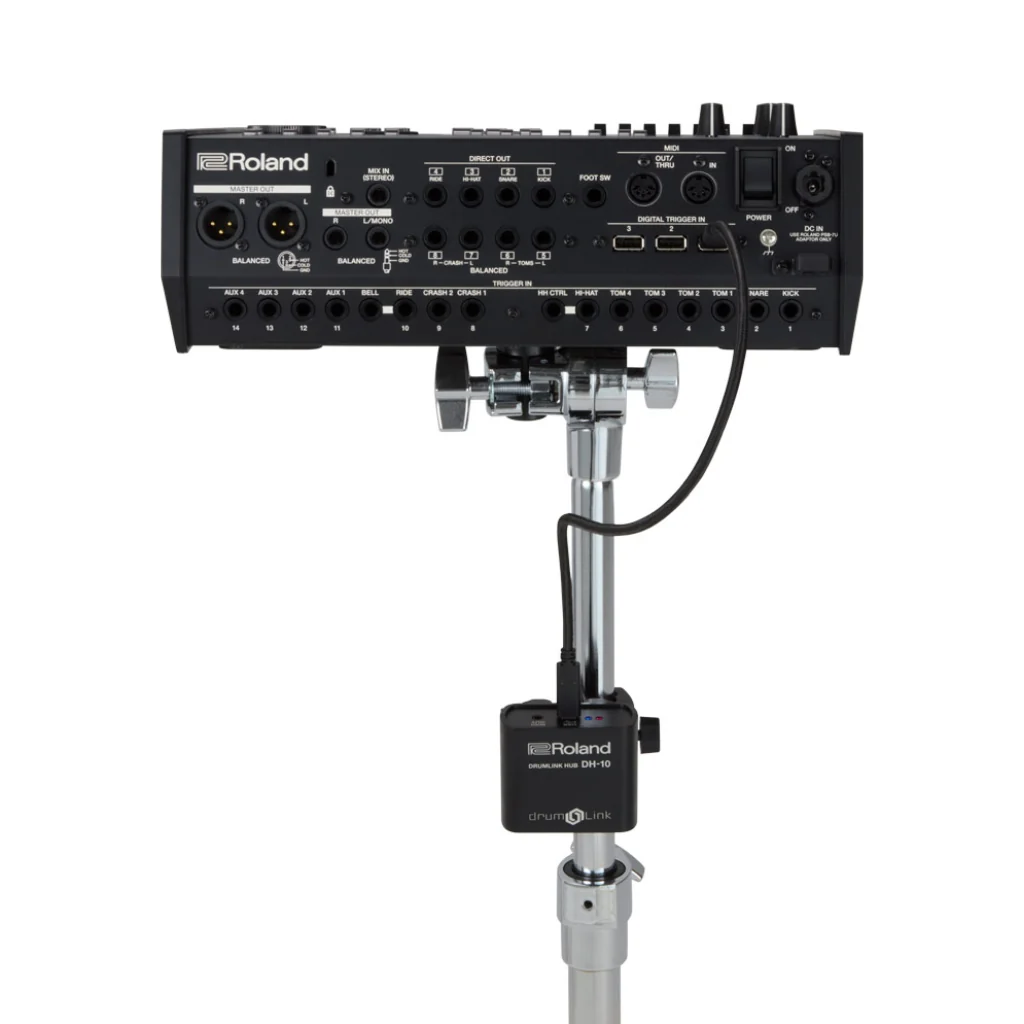

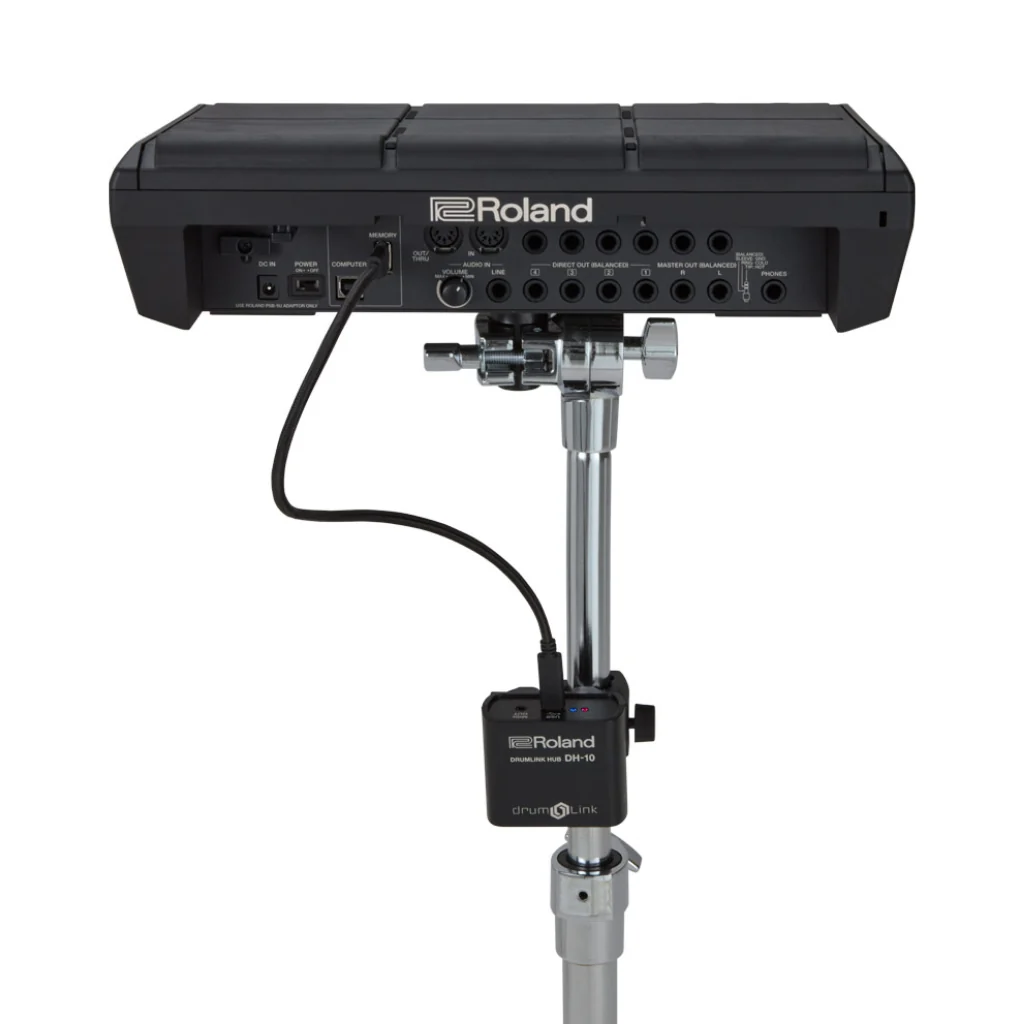

• Compatible with V-Drums TD-50X, TD-27, V71 modules, and SPD-SX PRO
• Connects via USB-C or MIDI (TRS mini) to modules or computers
• Utilizes Roland’s proprietary 2.4 GHz wireless protocol for stable, low-latency transmission

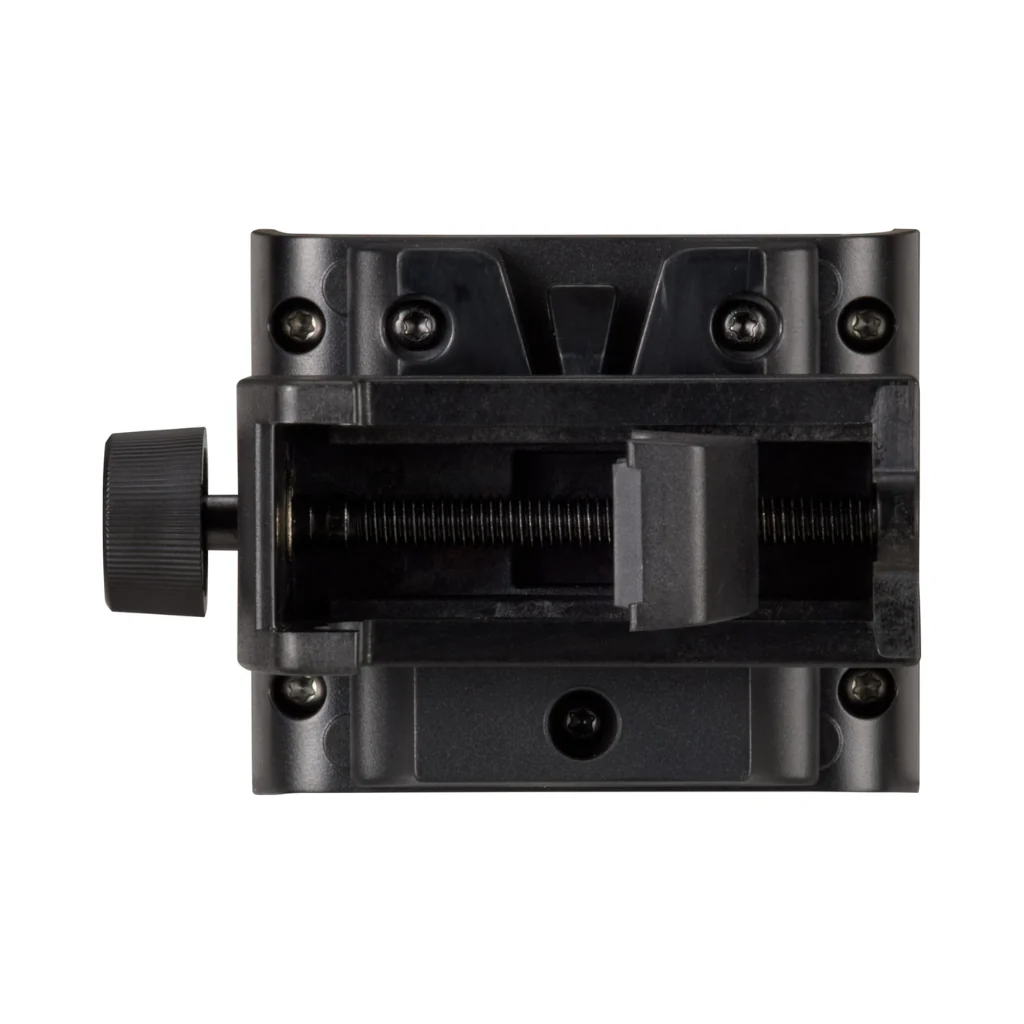

• Mountable design with included clamp for flexible placement

Specs

Wireless Format: Proprietary Protocol

• Wireless Frequency Band: 2.4–2.485 GHz ISM
• Transmission Range: Up to 10 m (32 ft) line-of-sight (may vary by environment)

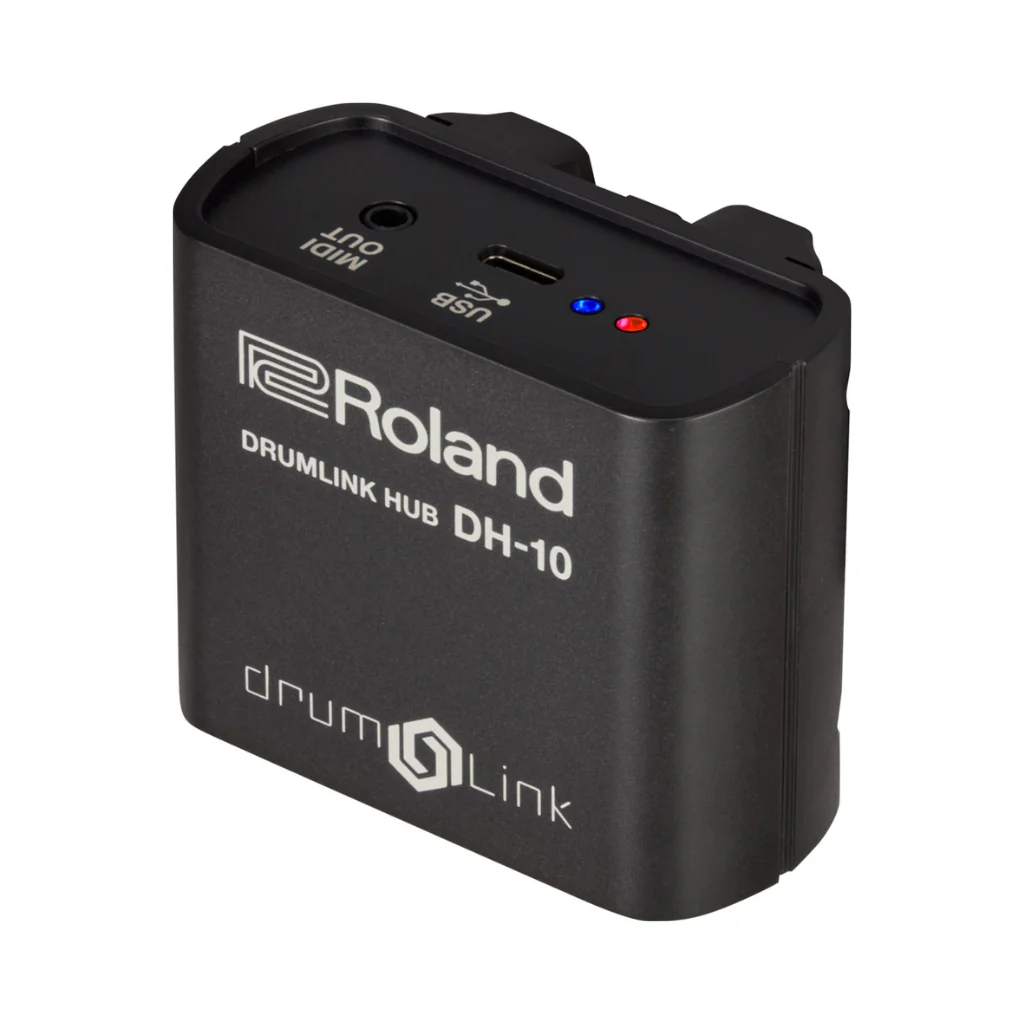

• Connectors:
  • USB-C (for power and data)
  • MIDI OUT (TRS mini type)
• Power Supply: Via USB connection
• Dimensions (Body):
  • Width: 70 mm (2-13/16")
  • Depth: 45 mm (1-13/16")
  • Height: 58 mm (2-5/16")
  • Weight: 65 g (3 oz)
• Dimensions (With Clamp):
  • Width: 84 mm (3-5/16")
  • Depth: 88 mm (3-1/2")
  • Height: 58 mm (2-5/16")
  • Weight: 120 g (5 oz)
• Clamp Mountable Diameter: 4.5–32 mm (3/16–1-5/16")

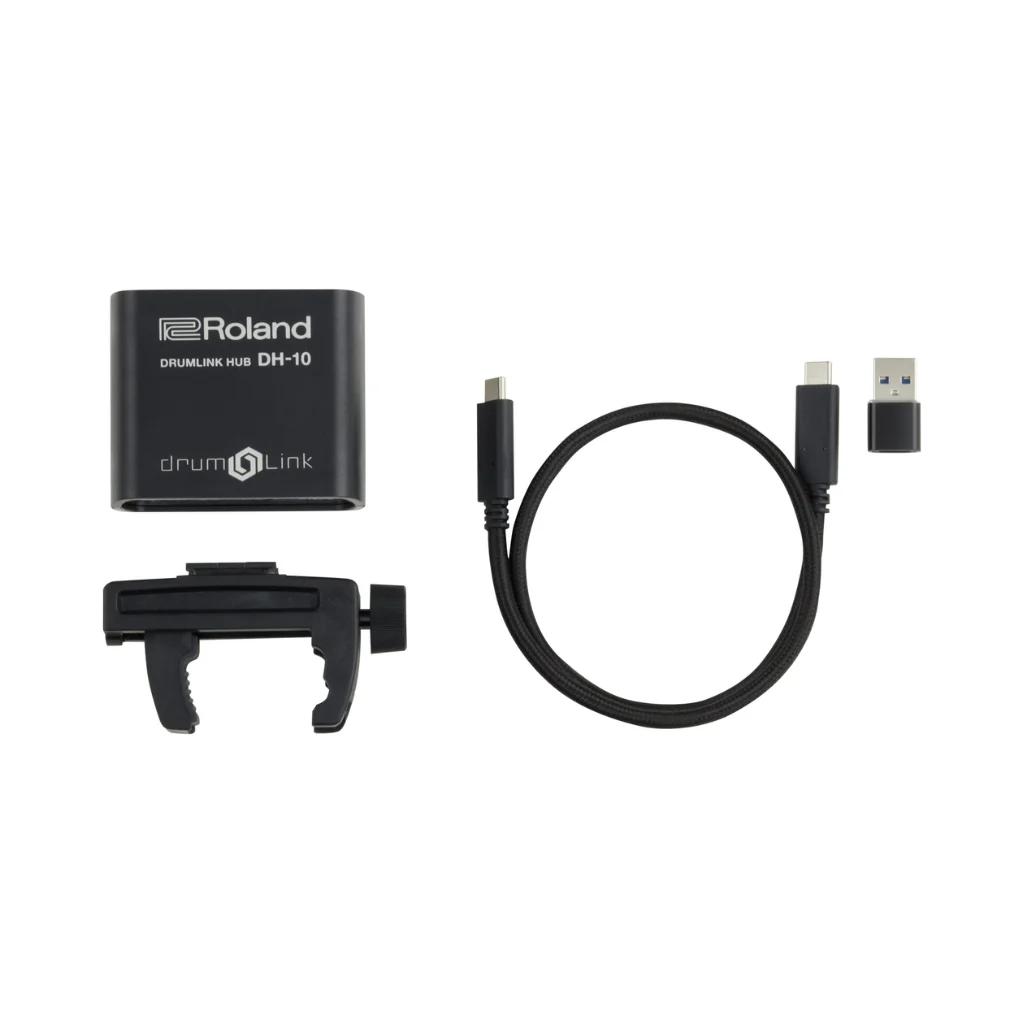

Included Accessories:

• Clamp
• USB Type-C Cable (0.5 m / 19")
• USB Type-C to A Adapter
• Owner’s Manual
• Safety Leaflet
