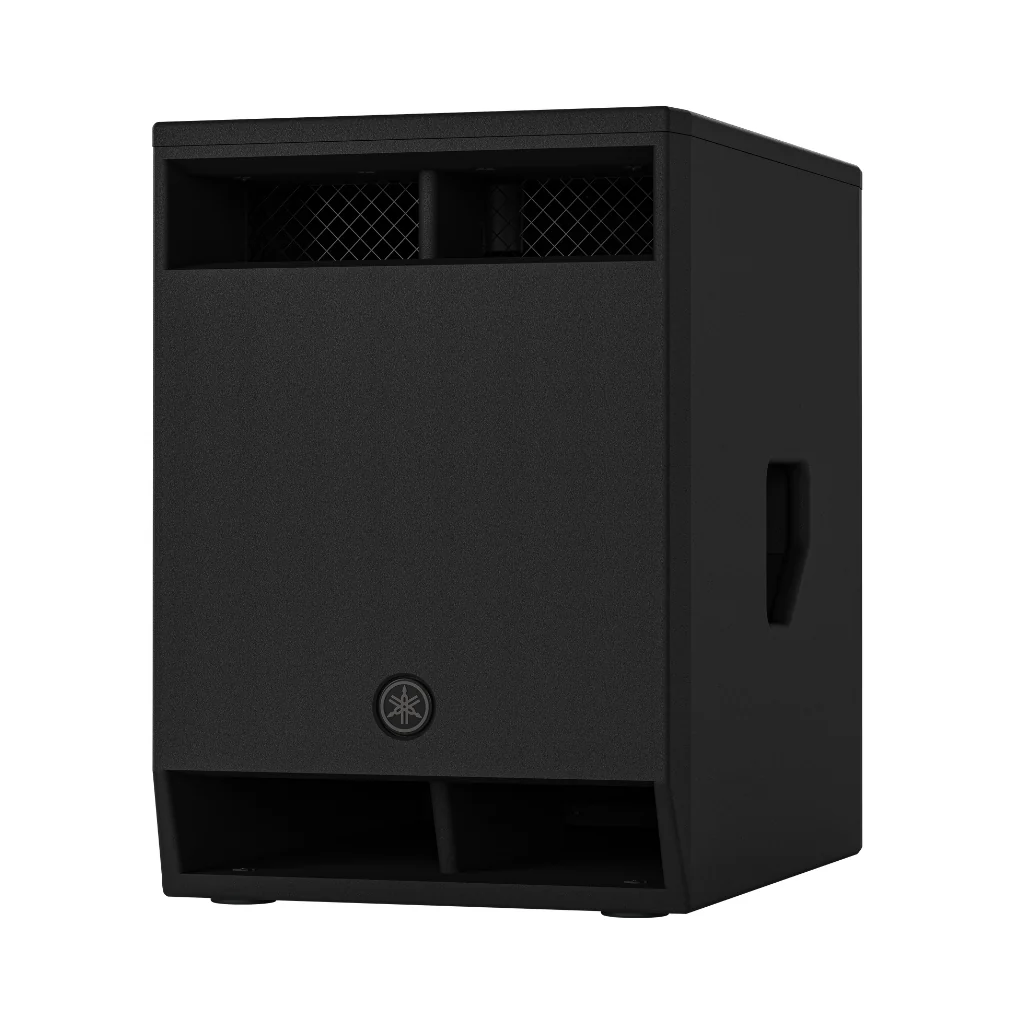

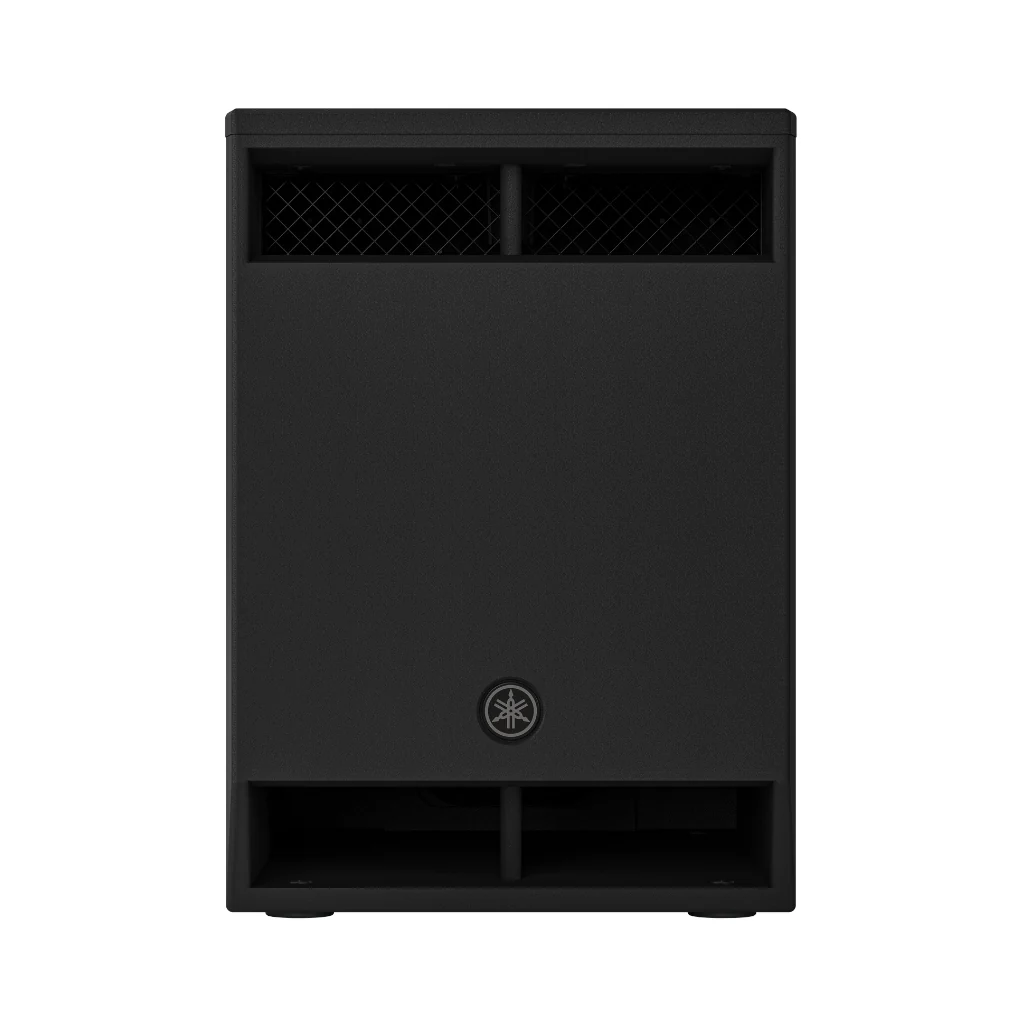

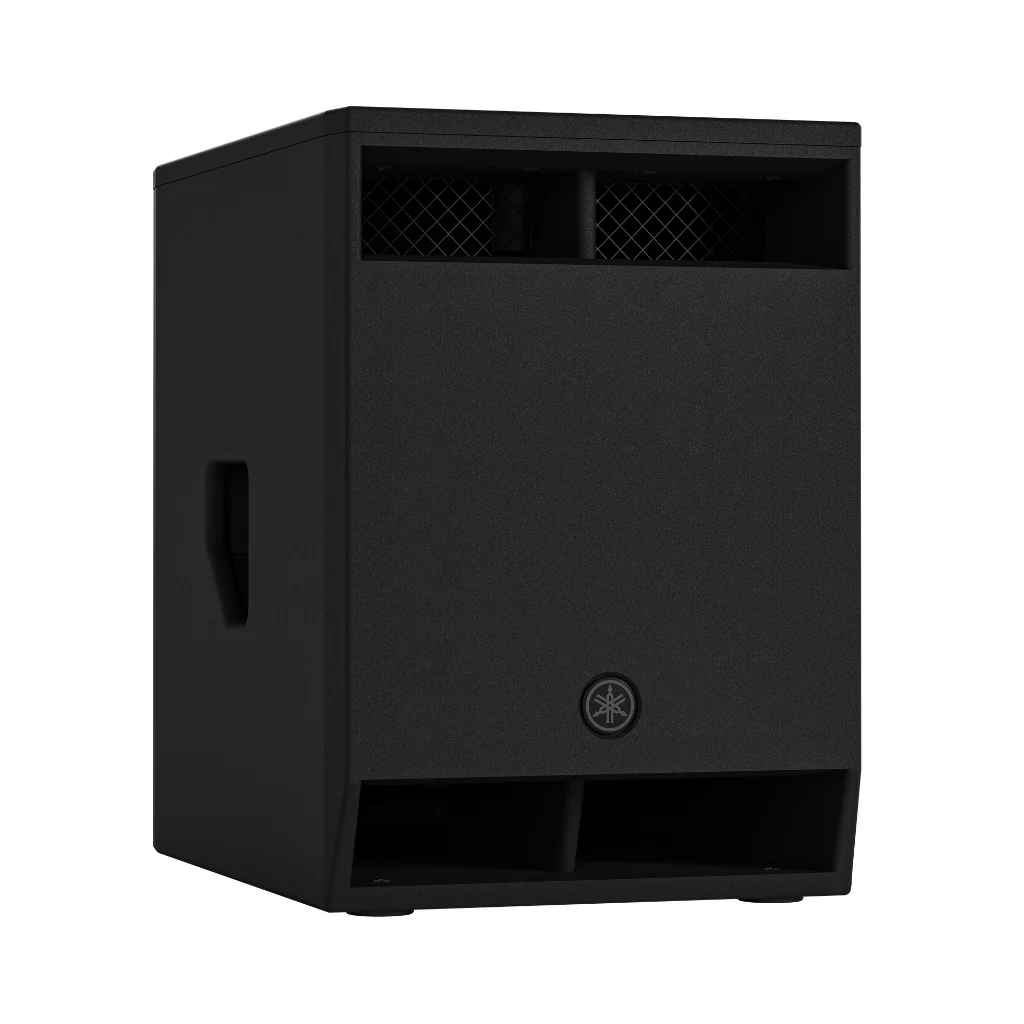

The Yamaha CXS12MK3 12" Passive Subwoofer in Black delivers tight, powerful low-frequency reinforcement in a compact and professional-grade design. Available at Sky Music Australia, this third-generation model is built on Yamaha’s latest DXS acoustic design philosophy, offering precise bass response and dependable performance for live sound, DJ applications, and installed systems.

Featuring a long-excursion 12-inch woofer with a 3-inch voice coil, the CXS12MK3 produces punchy, controlled low-end with excellent definition. Its optimized bandpass and port design ensures smooth projection and consistent coverage across a wide listening area, while the rugged yet relatively lightweight enclosure is built to withstand the demands of frequent transport and professional use.

Features

• Passive subwoofer based on Yamaha’s 3rd-generation DXS acoustic design
• 12" long-excursion woofer with 3" voice coil for tight, controlled bass response
• Optimized bandpass and port design for improved low-frequency projection
• 38Hz–140Hz frequency range with up to 125dB maximum SPL
• High-efficiency design suitable for live sound and installation use
• Durable yet relatively lightweight plywood enclosure for portability and strength
• Designed for seamless integration with Yamaha CXR mk3 series systems
• Ideal for FOH reinforcement, DJ setups, and installed sound systems

Specs

• Type: Passive Subwoofer
• Powered: No
• LF Driver Size: 12"
• Impedance: 4 ohms
• Power Rating: 650W Program
• Total Power Handling: 1300W Peak
• Frequency Range: 38Hz – 140Hz
• Maximum Peak SPL: 125 dB

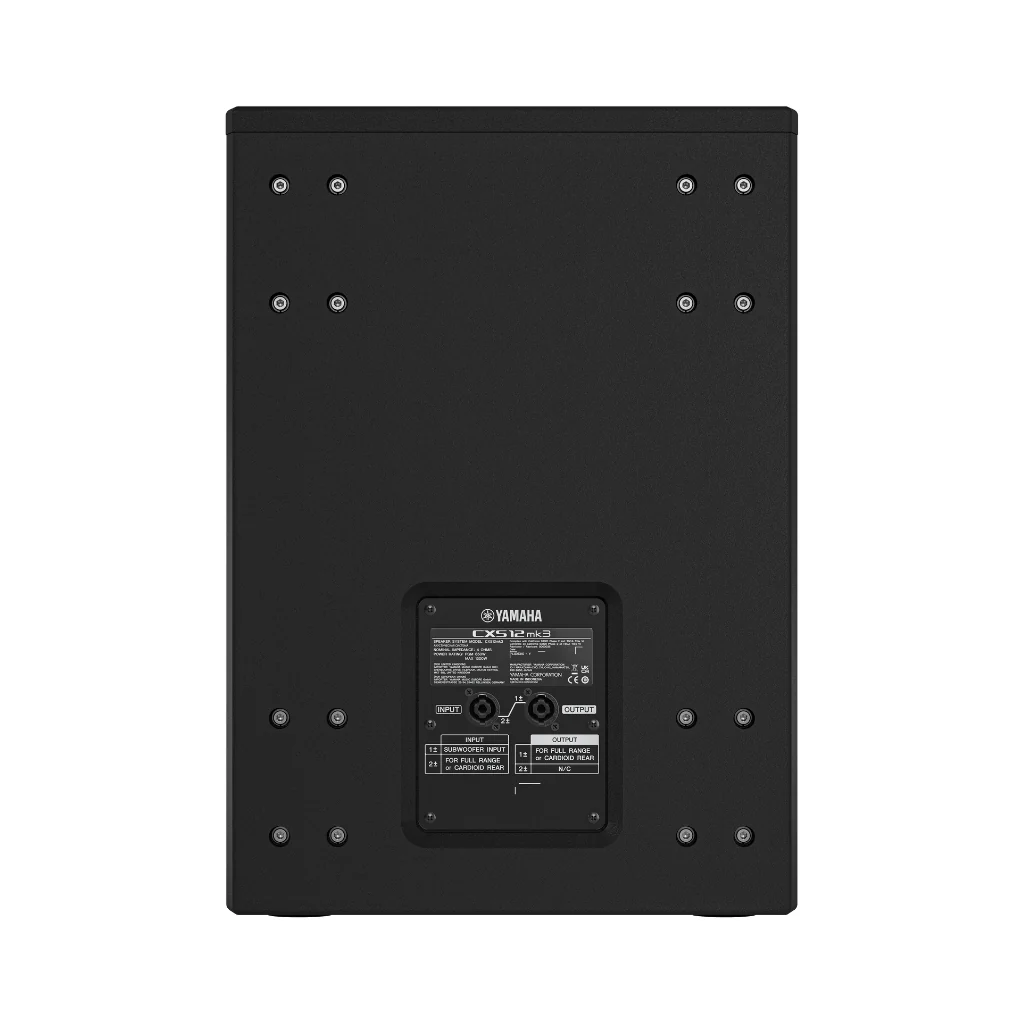

• Inputs: 1 x SpeakON
• Outputs: 1 x SpeakON (Thru)
• Mounting Options: Floor
• Enclosure Material: Plywood
• Dimensions: 22.3" (H) x 15.7" (W) x 22.4" (D)
• Weight: 70.5 lbs
• Finish: Black
