Yamaha DHR10 700W 10-inch Powered Loudspeaker
Delivering premium Yamaha sound in a compact, installation-friendly design, the Yamaha DHR10 is a professional 2-way bi-amped powered loudspeaker built for clarity, power, and durability. Equipped with a 10-inch woofer and 1.4-inch HF compression driver, it combines a 700W Class-D amplifier and advanced FIR-X™ tuning DSP to deliver studio-quality sound reinforcement for fixed installations, venues, and portable PA setups across Australia.
Built from high-grade plywood and finished with a durable polyurea coating, the DHR10 ensures low resonance and long-term reliability — even in demanding environments. Whether mounted horizontally or vertically, this versatile speaker offers the flexibility you need with its rotatable HF horn and rigging-ready design.
Perfect for clubs, houses of worship, conference halls, schools, and small venues, the DHR10 represents Yamaha’s legendary engineering and attention to detail, making it one of the best-value compact powered speakers in its class.
Features
- Professional 700W Class-D amplifier delivers clean, high-output sound

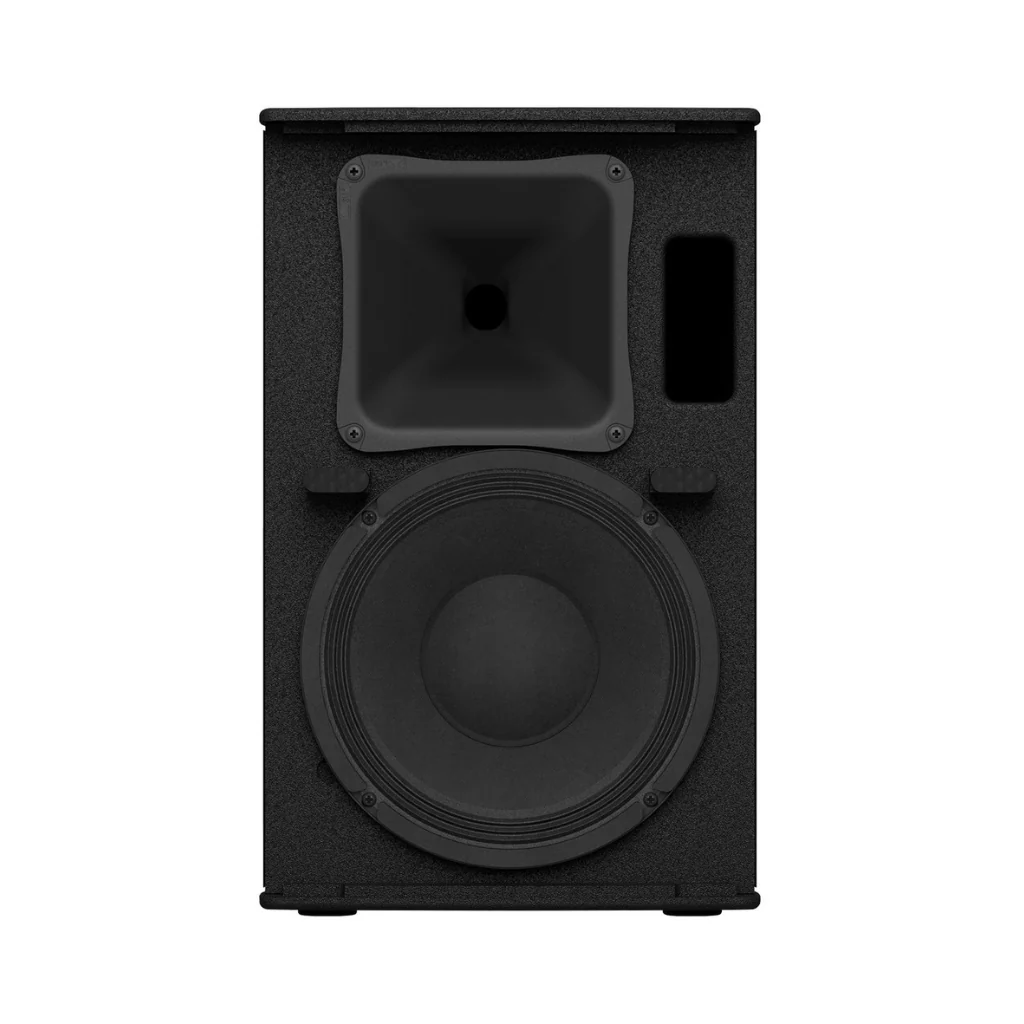

- 10-inch LF driver and 1.4-inch HF compression driver for balanced full-range response
- High-grade plywood cabinet minimizes vibration for superior clarity
- Durable polyurea coating provides a scratch-resistant, road-ready finish
- Compact design suitable for both fixed installations and portable PA setups
- Rotatable 90° x 60° HF horn for horizontal or vertical mounting flexibility
- UB-DXRDHR10 U-bracket compatible for easy wall or ceiling installation
- 35mm pole socket for stand mounting
- Rigging points (M10) for secure suspension
- FIR-X™ tuning DSP ensures phase-accurate crossover performance
- Multiple input options — Combo, RCA, and XLR — for seamless connectivity
Specs
- System Type 2-way, Bi-amped Powered Speaker (Bass-reflex)
- LF Driver 10" cone, 2" voice coil, Ferrite magnet
- HF Driver 1.4" diaphragm, 1" throat compression driver, Ferrite magnet
- Frequency Range (-10 dB) 52 Hz – 20 kHz
- Crossover 1.9 kHz (FIR-X™ linear phase FIR filter)
- Coverage (H × V) 90° × 60° (rotatable)
- Amplifier Type Class-D
- Power Rating (Dynamic) 700 W (LF: 500 W, HF: 200 W)
- Power Rating (Continuous) 325 W (LF: 260 W, HF: 65 W)
- Maximum Output 128 dB SPL (Peak, IEC noise @ 1m)
- Cooling Fan cooling, 4-speed
- A/D – D/A Converters 24-bit / 48 kHz sampling
- DSP Functions HPF: OFF / 100 Hz / 120 Hz (24 dB/Oct); D-CONTOUR: FOH/MAIN, MONITOR, OFF

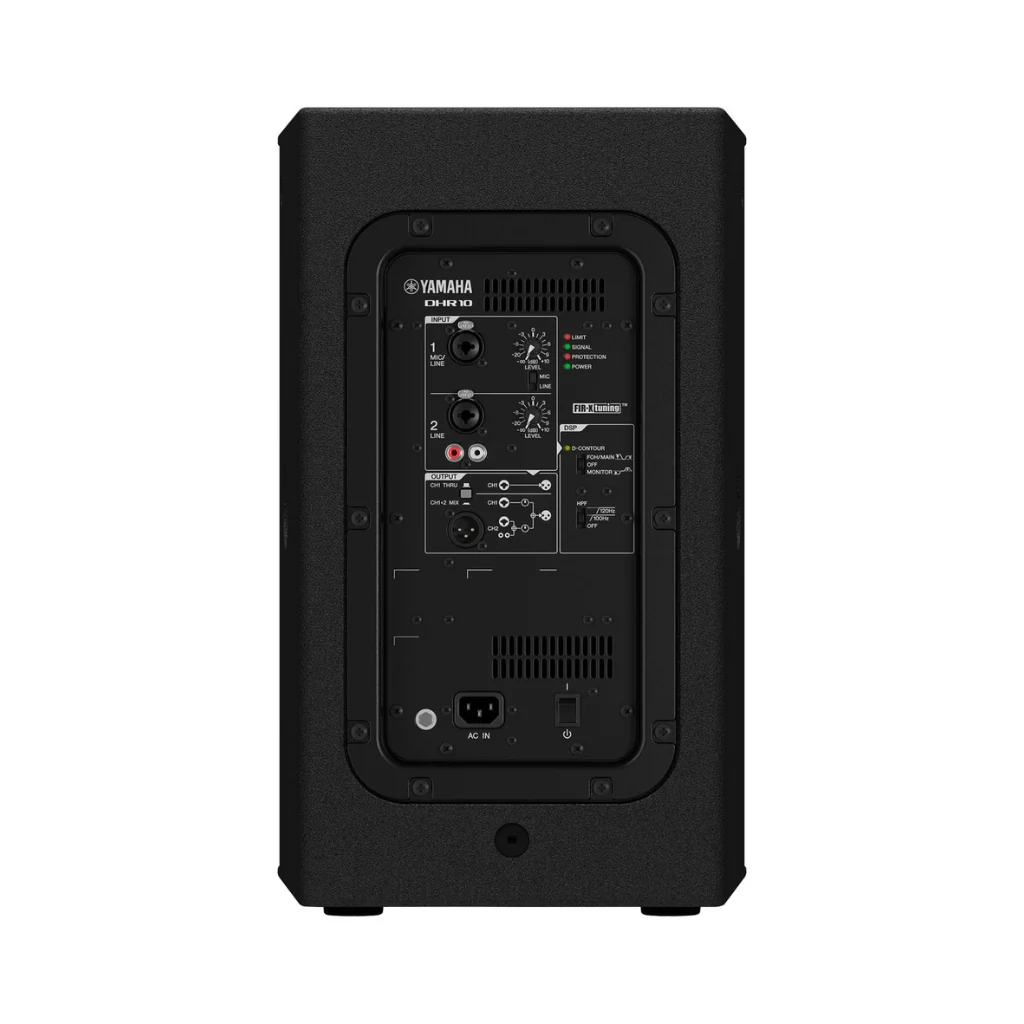

- I/O Connectors INPUT1: Combo x1; INPUT2: Combo x1 + RCA x2 (Unbalanced); OUTPUT: XLR x1 (CH1 Thru or CH1+CH2 Mix)
- Power Consumption 60 W (1/8 power), 18 W (Idle)
- Power Requirements 100–240 V AC, 50/60 Hz
- Cabinet Material Plywood
- Finish Durable Polyurea Painting, Black
- Handle Top x1
- Pole Socket Ø35 mm (Bottom)
- Rigging Points Top x2, Rear x1 (M10 x 30–50 mm eyebolts)
- Dimensions (W × H × D) 305 × 494 × 300 mm (12.0" × 19.5" × 11.8")
- Net Weight 15.0 kg (33.1 lbs)
- Optional Accessory UB-DXRDHR10 U-bracket (sold separately)
