Better Sound. Greater Expression.

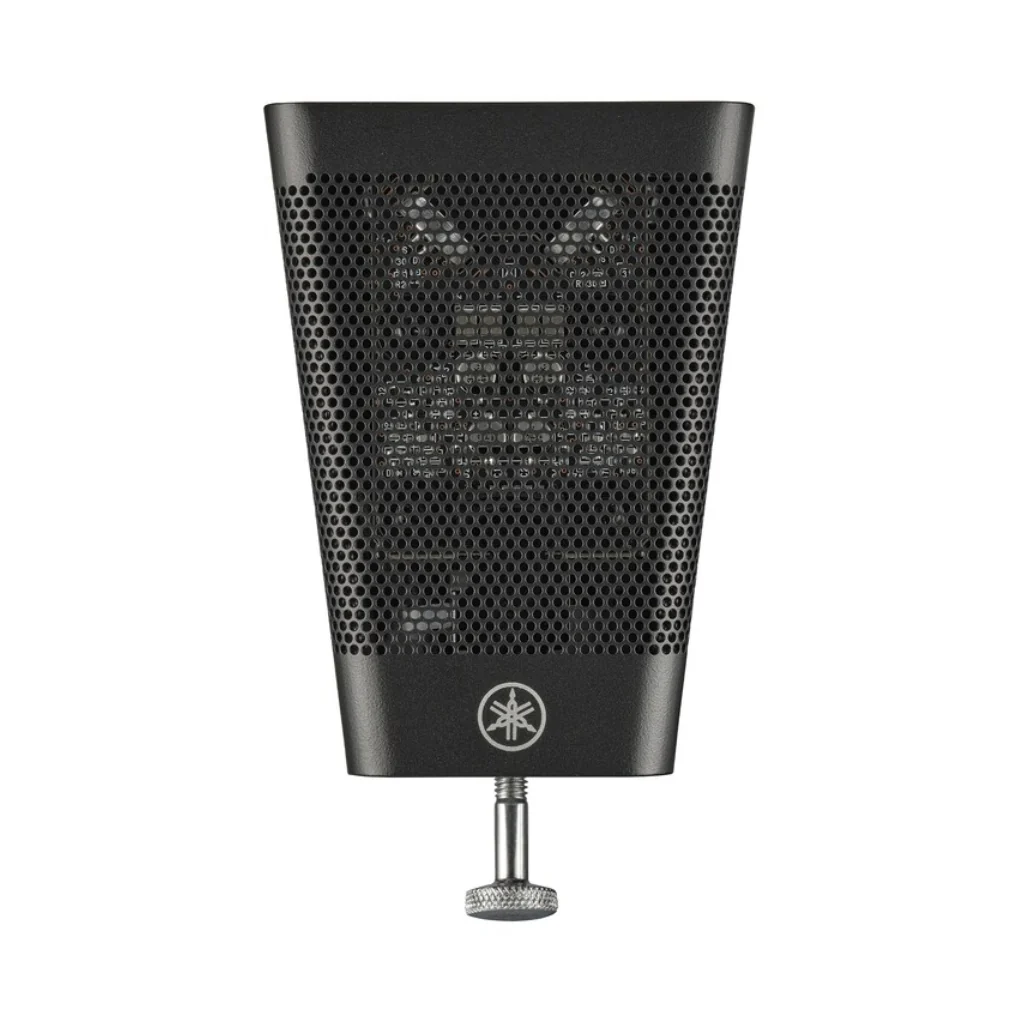

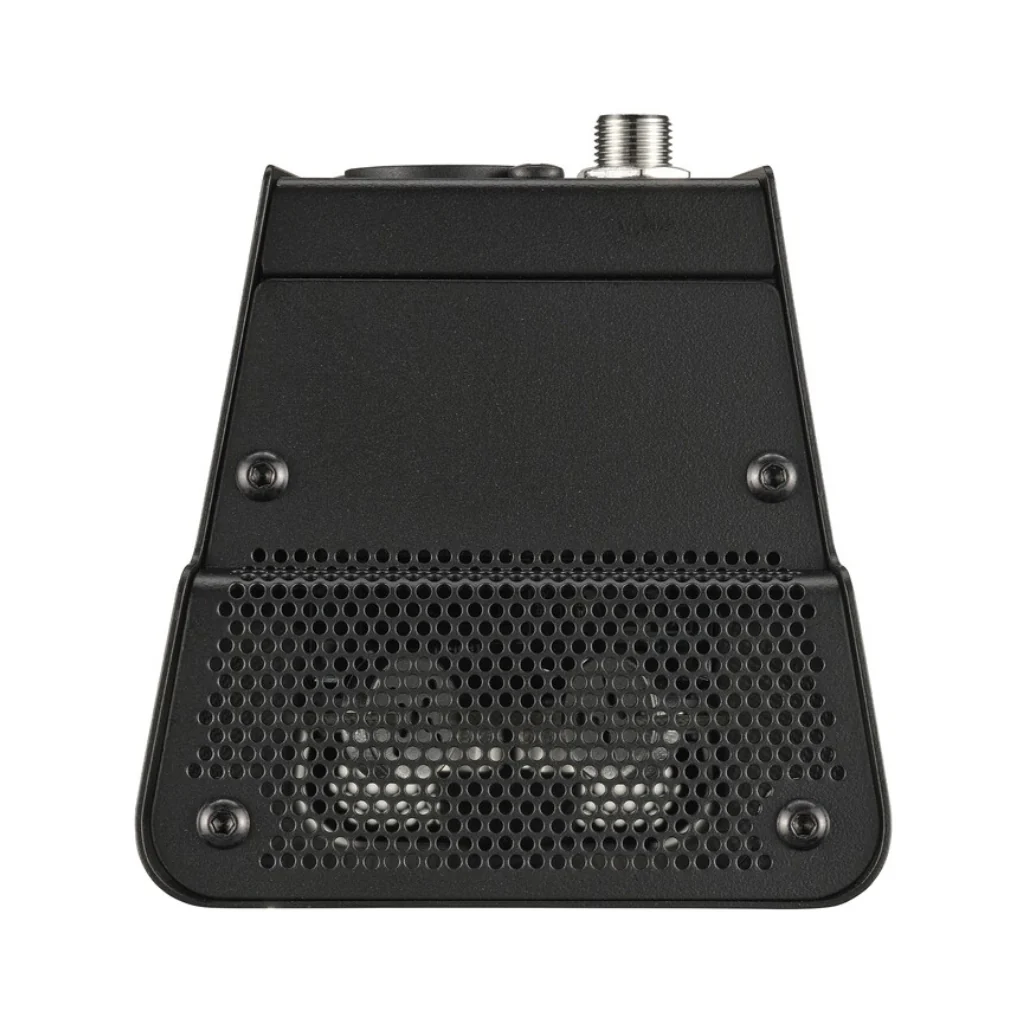

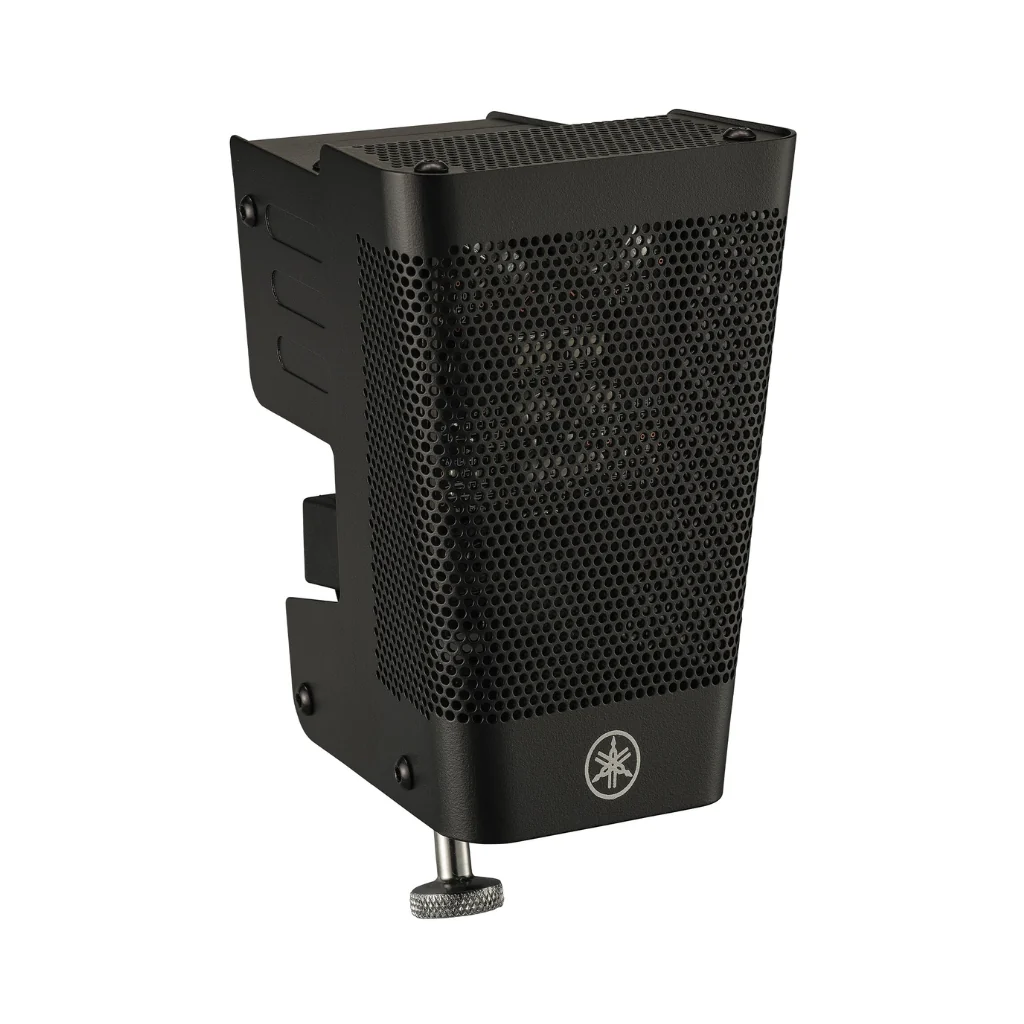

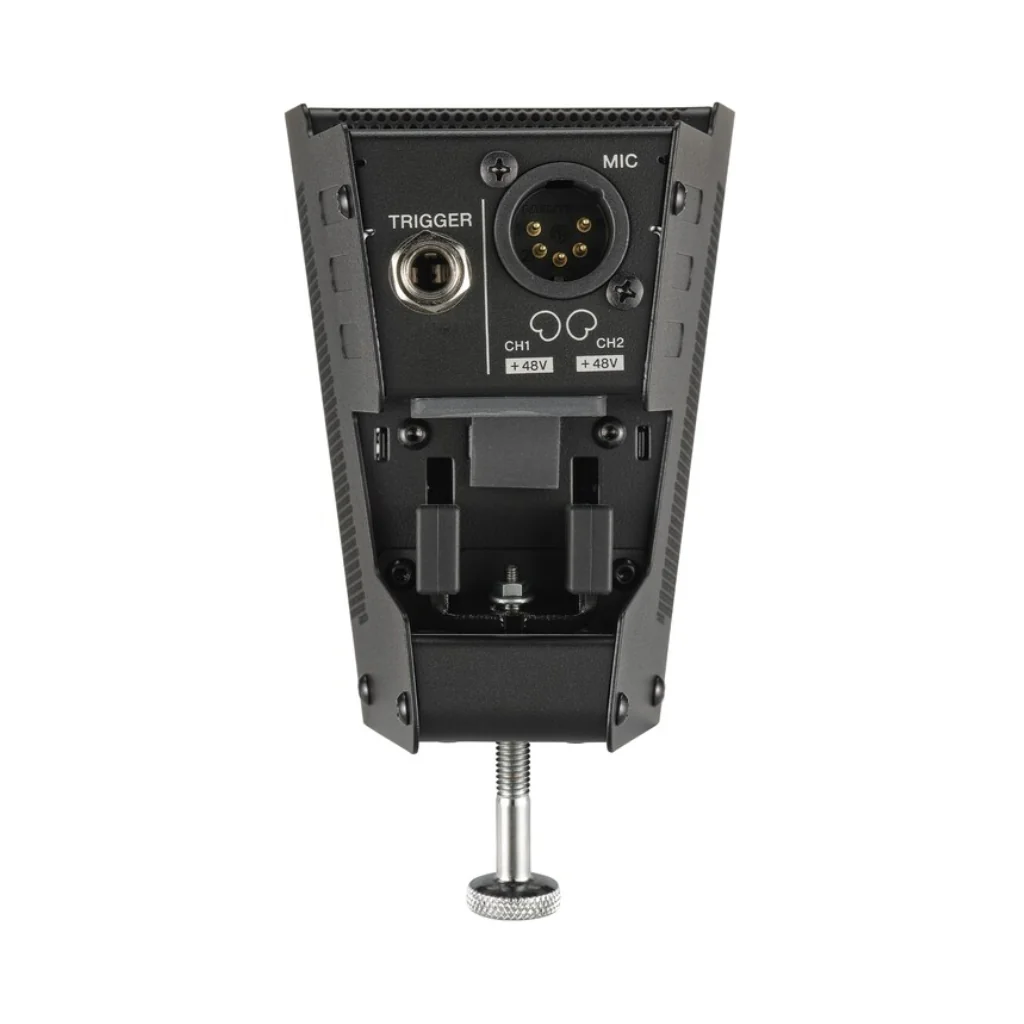

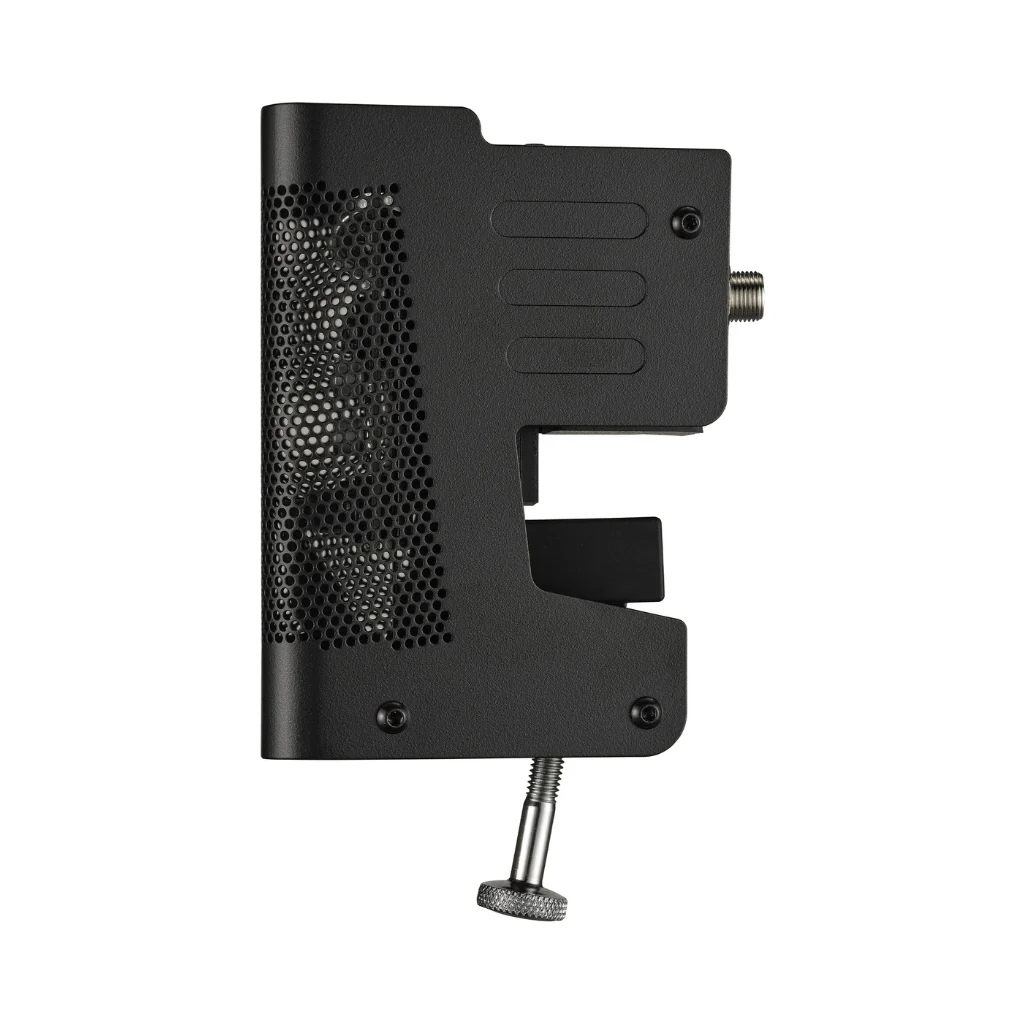

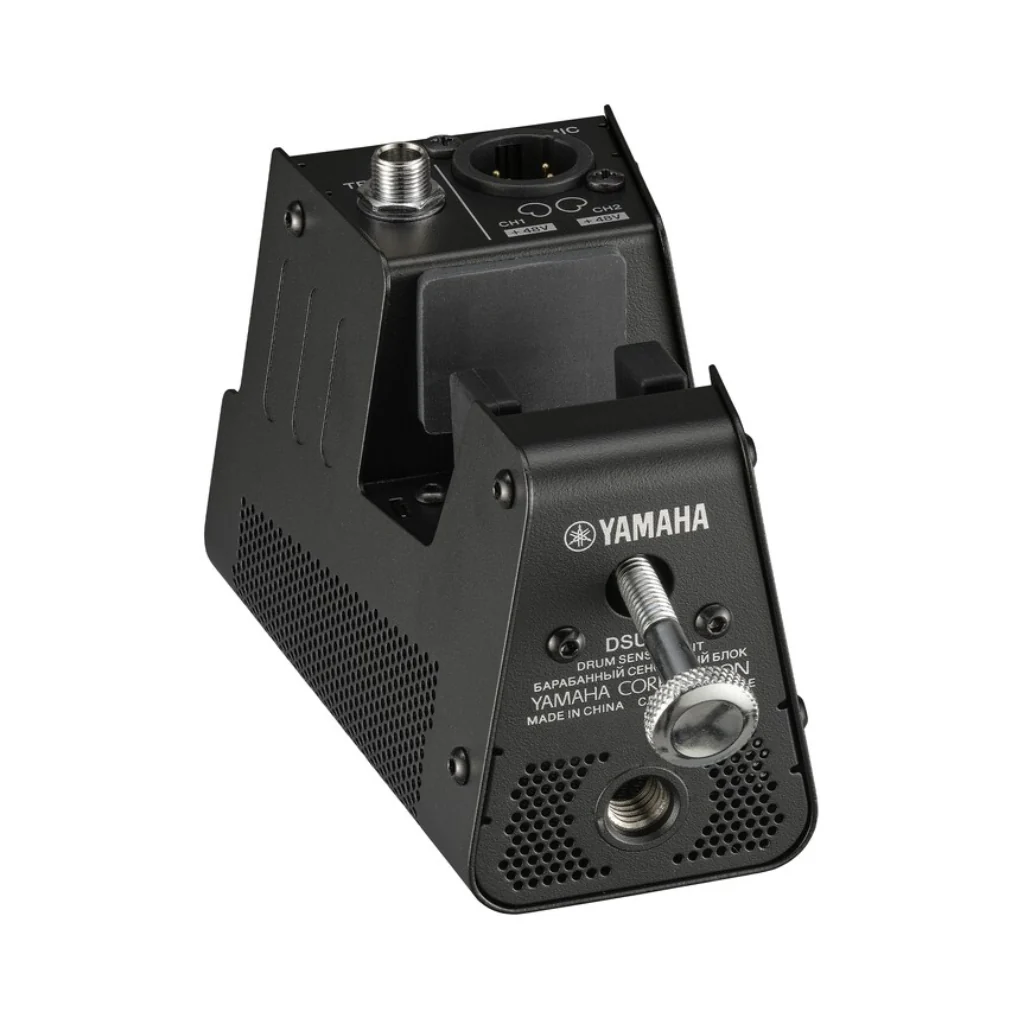

The Yamaha DSU50 Drum Sensor Unit captures your acoustic drum kit with natural depth and clarity, delivering rich expression for every performance. Designed specifically for acoustic drums, the DSU50 uses custom-matched condenser capsules arranged in an XY configuration to provide a balanced stereo image of your entire kit from a single microphone position.

Mounted on the bass drum hoop and facing the player, the DSU50 combines professional-grade acoustic capture with an intuitive, compact design. When paired with the EAD50 module, you can layer triggered sounds, add effects, or expand your hybrid kit, making it ideal for live performance, streaming, studio recording, and practice. Available now from Sky Music Australia.

Features

• Captures the entire drum kit with a single microphone
• Custom-matched XY condenser capsules tuned for acoustic drums
• Enhanced housing with isolated internal structure reduces vibration and noise
• Improved trigger sensor detects bass-drum attack for hybrid performance
• Stereo output with included professional breakout cable
• Slim design with hoop clamp and 3/8-inch mount for flexible placement
• Clean, stable audio capture suitable for rehearsal, recording, live shows, and streaming
• Compatible with EAD50 module only (not EAD10)
• Expandable stereo image with an additional DSU50
• Professional acoustic drum sound with minimal setup

Specs

• Unit Type: Acoustic Drum Sensor Unit
• Microphones: Custom-matched XY condenser capsules
• Trigger Sensor: Integrated bass-drum trigger for hybrid functionality
• Outputs: Stereo line output via pro breakout cable
• Mounting: Bass drum hoop clamp with 3/8-inch mount
• Housing: Isolated internal structure for low-noise performance
• Compatibility: Yamaha EAD50 module only
• Dimensions: Approx. 200 x 140 x 80 mm
• Weight: Approx. 0.8 kg
• Included Accessories: Mounting kit and breakout cable
