The Digital Evolution of an Analog Classic

Building on the legacy of Yamaha's MG Series—already established as a global standard in mixing consoles—MGX digital mixing consoles deliver a perfect blend of flexibility, performance, and premium sound quality, excelling in a versatile range of live and installed sound, podcast/live streaming, music production, and recording applications.

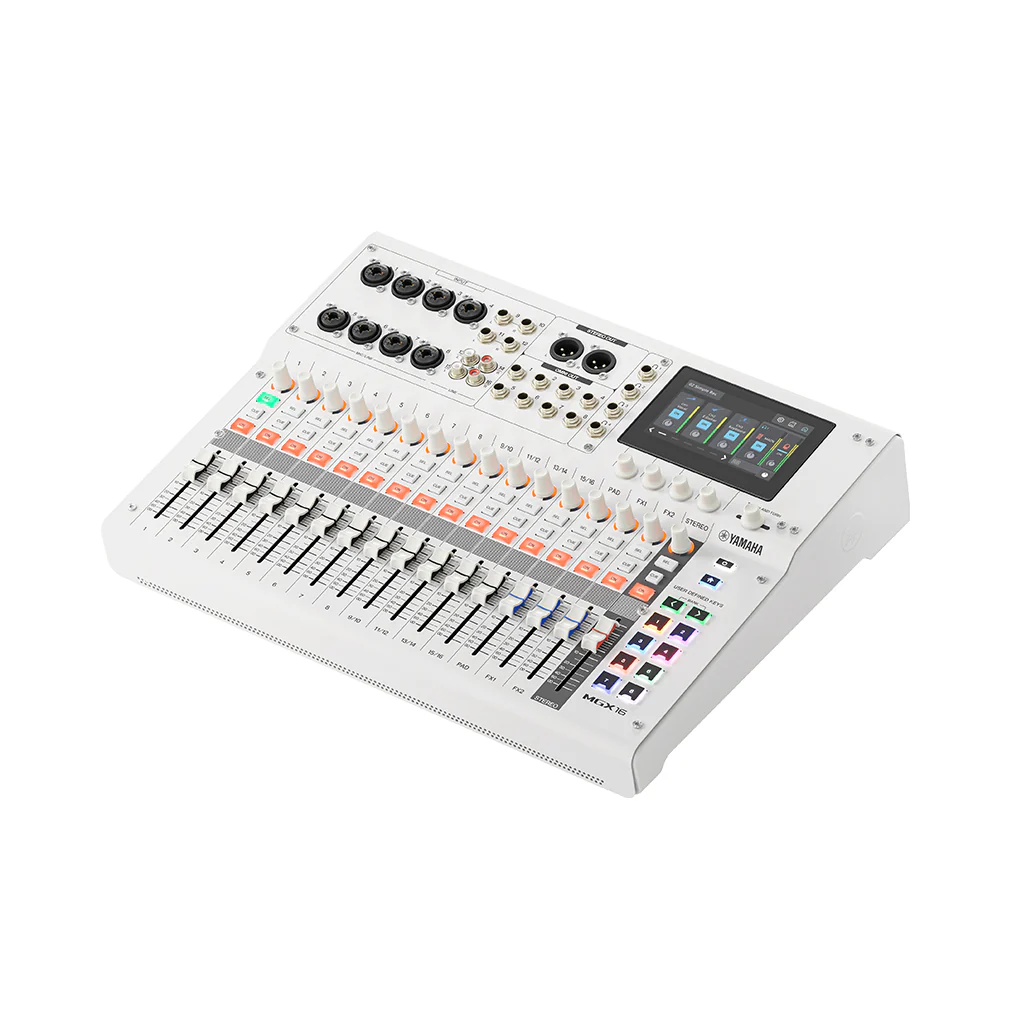

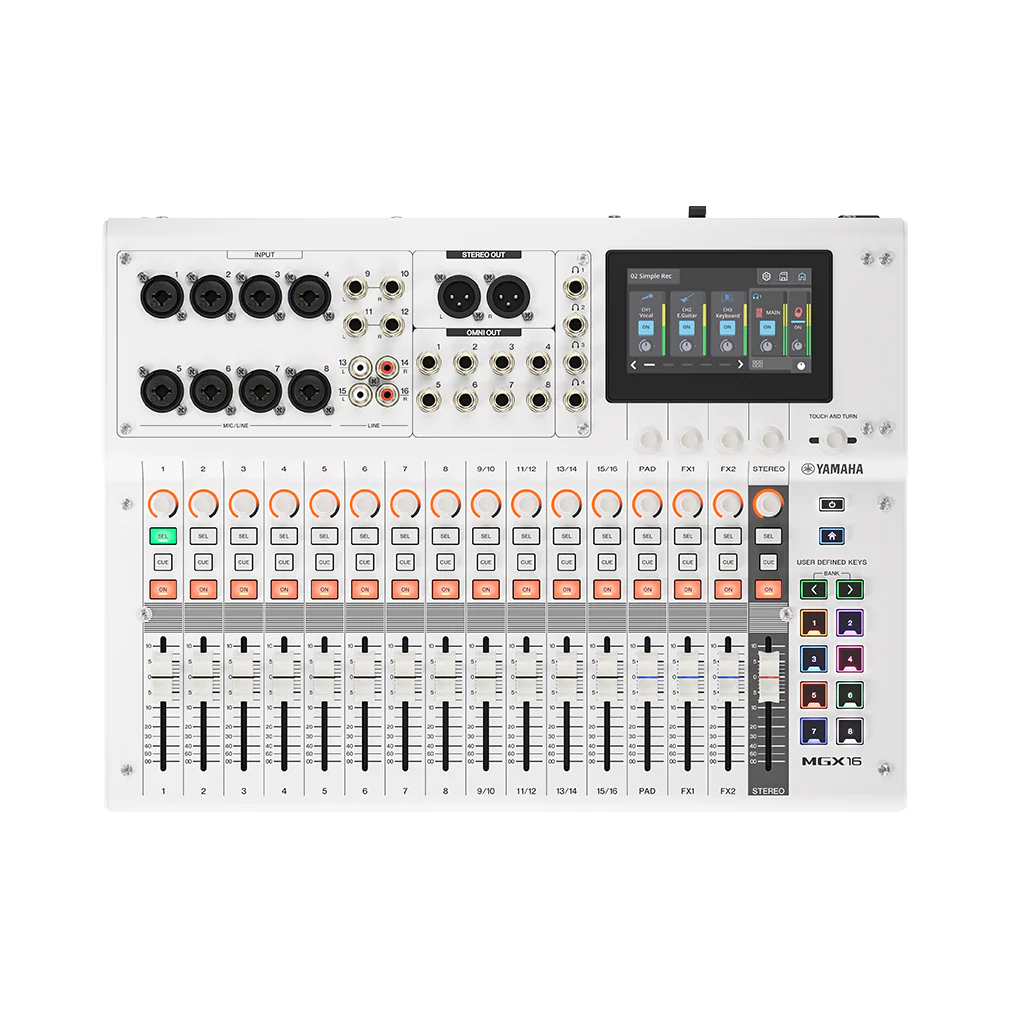

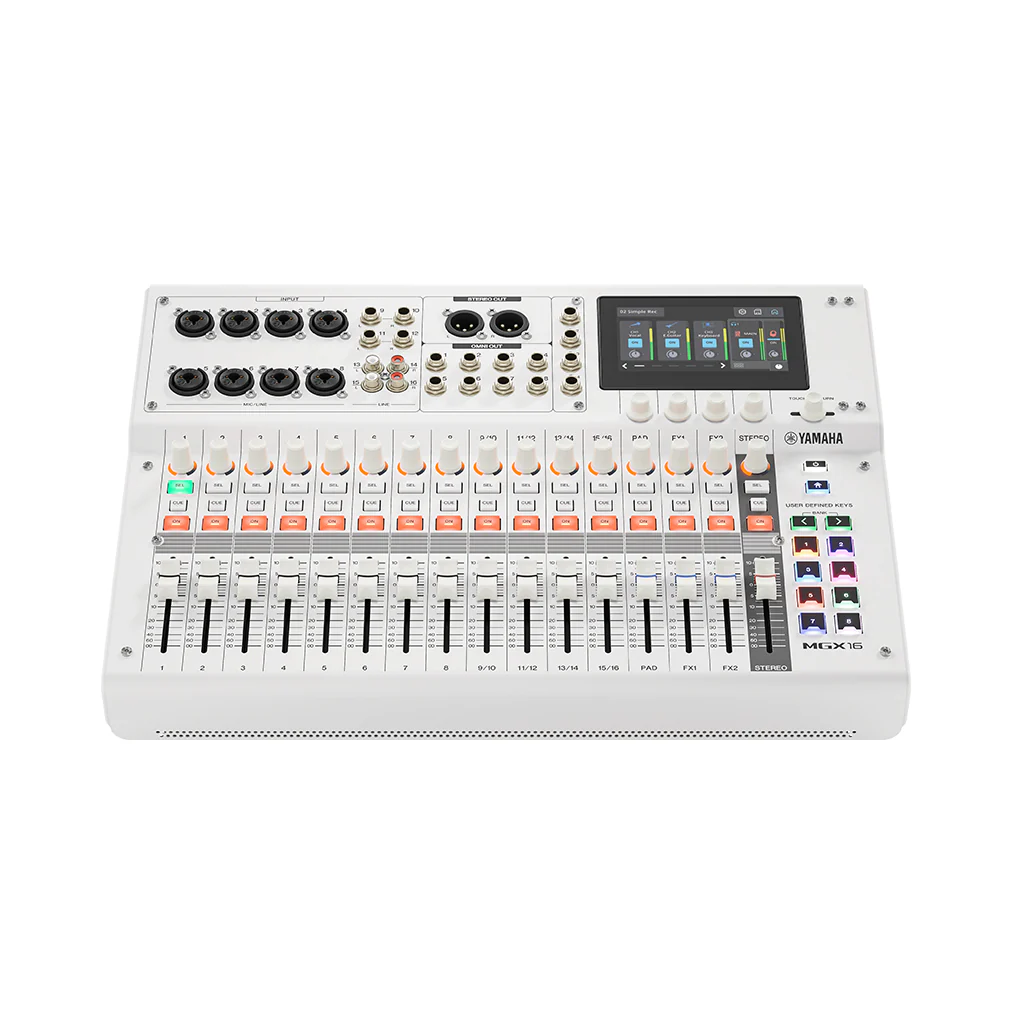

The powerful and extremely versatile features of the MGX16 are designed to be operated quickly and intuitively through its touch-panel GUI and various physical controllers. In addition, a comprehensive selection of I/O options allows you to freely configure the system to suit any application. From live sound and installed sound systems—whether in halls, cafés, clubs, or houses of worship—to podcast streaming and professional recording, the MGX16 adapts seamlessly to a wide range of environments. And in every case, operators, artists, and audiences alike will be captivated by the quality of its sound and performance.

Features

• 15 + 1 fader configuration (non-motorized fader)
• A 4.3-inch touchscreen with five control knobs
• Input mixing channels: 8 mono + 4 stereo + 1 Sound Pad + 2 FX return
• Busses: 1 STEREO + 8 MIX
• Local Inputs: 8 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line)
• Local Outputs: 2 XLR, 8 TRS Phone, 4 Headphones
• USB MAIN: 22 inputs / 22 outputs (32-bit / 96 kHz)
• USB SUB: 2 inputs / 2 outputs (16-bit / 48 kHz)
• microSD Card: 16-track recording / 2-track playback (24-bit / Up to 96 kHz)
• Bluetooth Audio Input: 2 inputs (Bluetooth 5.0, A2DP)
• Built-in DSP processor for professional sound and latency-free monitoring
• Assistive features: Auto Gain, Clip Safe, Simple / Standard mode, Scene Recall
• Included accessories: Start Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX Suite license card, AC Power Adapter (PA-300C)

Specs

Analog Input	8 Combo, 4 TRS, 4 RCA
Analog Output	2 XLR, 8 TRS
USB TO HOST	2 (Type-C)
Phones	4 TRS
Bluetooth	Ver 5.0 (A2DP)
Storage Slots	microSD Slot
Screen / Controls	4.3" Touch Screen
Faders / Knobs	16 Faders/Knobs
USB (Main)	22-track
microSD Card	16-track Rec
Sampling Rate	96 kHz - 44.1 kHz
Signal Delay	< 0.4 ms
Dynamic Range	125 dB typ.
Input Channels	8 mono + 4 stereo
Mix Buses	8 (mono)
DSP FX	Gate, Comp, EQ, REV-X, etc.
Dimensions (WxHxD)	419 x 96 x 319 mm
Net Weight	4.7 kg
Power Consumption	38.4 W
